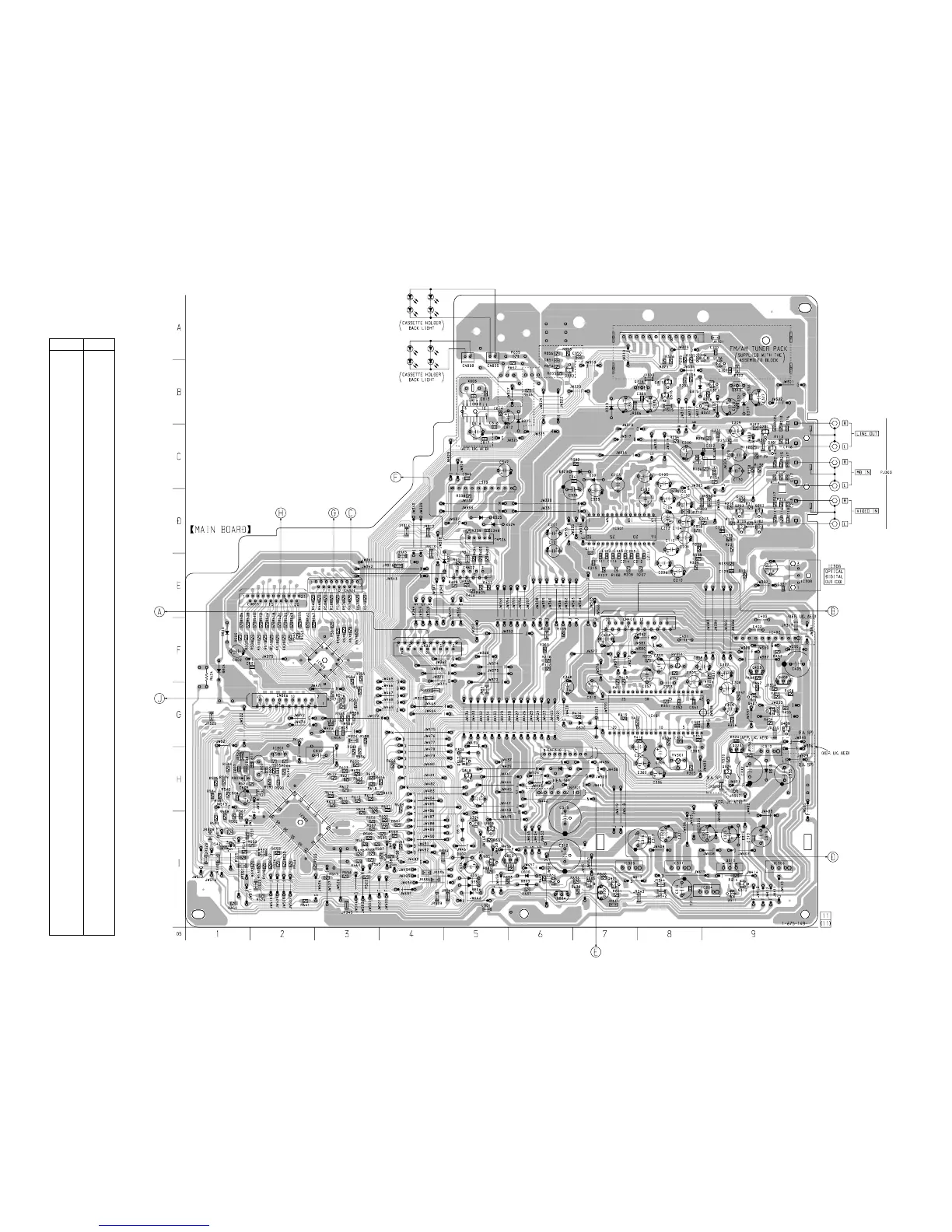

7-10. PRINTED WIRING BOARD – MAIN Board – • See page 23 for Circuit Boards Location.
D301 C-7
D304 H-5
D314 I-9
D315 B-8
D317 B-9
D318 H-9
D319 B-7
D320 G-7
D321 G-7
D322 E-5
D323 C-7
D324 D-5
D325 D-5
D330 I-5
D331 I-5
D804 F-1
D805 B-6
D806 I-5
D807 I-5
D808 I-6
D809 I-6
D815 I-5
D816 F-1
IC301 D-7
IC302 C-9
IC304 I-9
IC305 I-7
IC306 I-9
IC308 E-9
IC309 C-5
IC310 H-9
IC311 I-8
IC401 G-8
IC402 F-9
IC800 F-3
IC801 H-2
IC802 I-2
IC803 B-5
Q101 C-9
Q102 D-9
Q103 D-9
Q106 B-9
Q201 C-9
Q202 D-9
Q203 D-9
Q206 A-9
Q303 I-5
Q304 I-5
Q310 I-9
Q311 I-9
Q312 I-9
Q313 B-9
Q314 B-8
Q315 B-8
Q316 B-8
Q317 H-5
Q318 H-5
Q321 B-9
Q322 B-9
Q323 H-9
Q324 H-9
Q403 F-9
Q406 G-9
Q407 G-9
Q408 F-9
Q409 G-9
Q800 I-7
Q801 I-7
Q804 I-6
Q805 I-7
Q806 I-6
Q830 B-6
Q850 I-6
Q851 I-5
• Semiconductor
Location
Ref. No. Location
(Page 36)
(Page 24)
(Page 29)
(Page 26)
(Page 29)
(Page 29)
(Page 26)
(Page 34)
(Page 38)
