Sony HCD-CP2 - 3 Disassembly

6

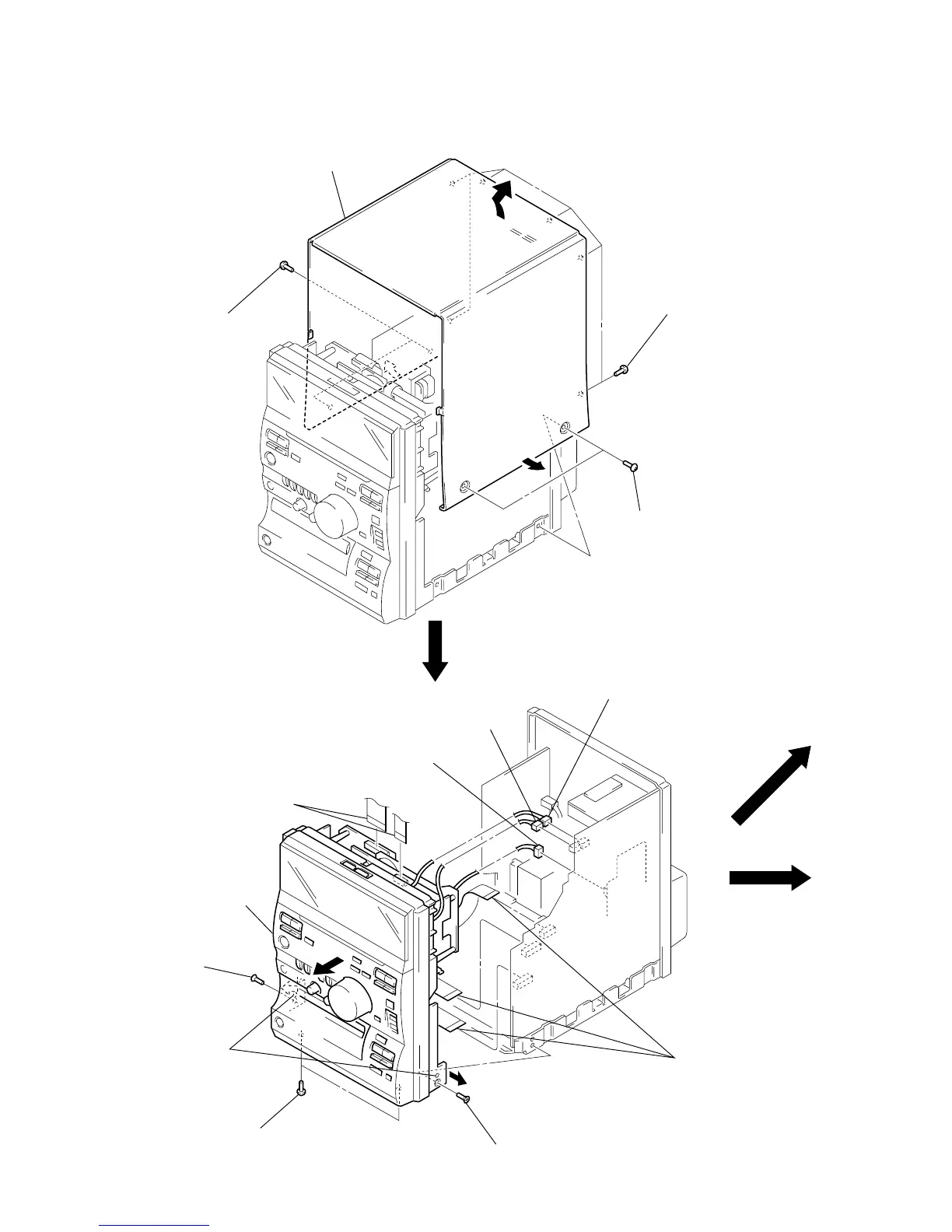

COVER (UPPER)
FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
3 cover (upper)
1 two case screws
2 six screws
(BTP3 × 8)
1 two case screws
3 two screws
(BTP3 × 8)
4 screws
(KTP3 × 6)
4 screw
(KTP3 × 6)
5 two bosses
6 front panel assy
1 two flat cables
(CN601, 1001)
2 connector
(CN311)
2 connector
(CN808)
2 connector
(CN805)
1 three flat cables
(CN801, 803, 806)
(To page 8)
