47
(1) GENERAL SECTION
SECTION 8

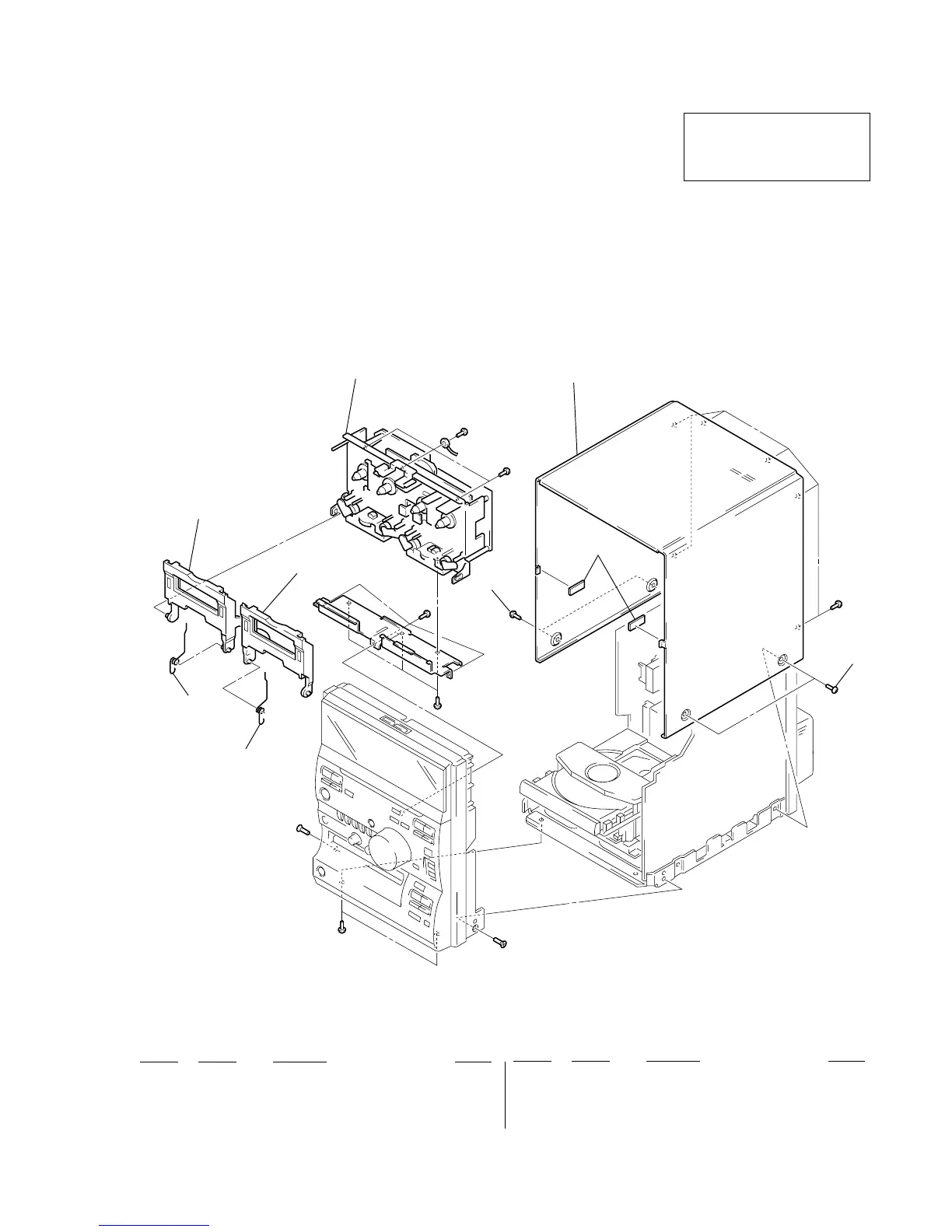

EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-222-365-01 SPRING (CASSETTE B)
2 4-222-364-01 SPRING (CASSETTE A)
3 X-4951-962-1 HOLDER (A) SUB ASSY, CASSETTE
4 X-4951-963-1 HOLDER (B) SUB ASSY, CASSETTE
5 4-222-370-01 COVER (UPPER)
6 4-221-580-01 SCREW, CASE
7 3-831-441-99 SPACER
• Abbreviation
AUS : Australian model
AED : North European model
EA : Saudi Arabia model
SP : Singapore model
To Next Page
