HCD-CP2

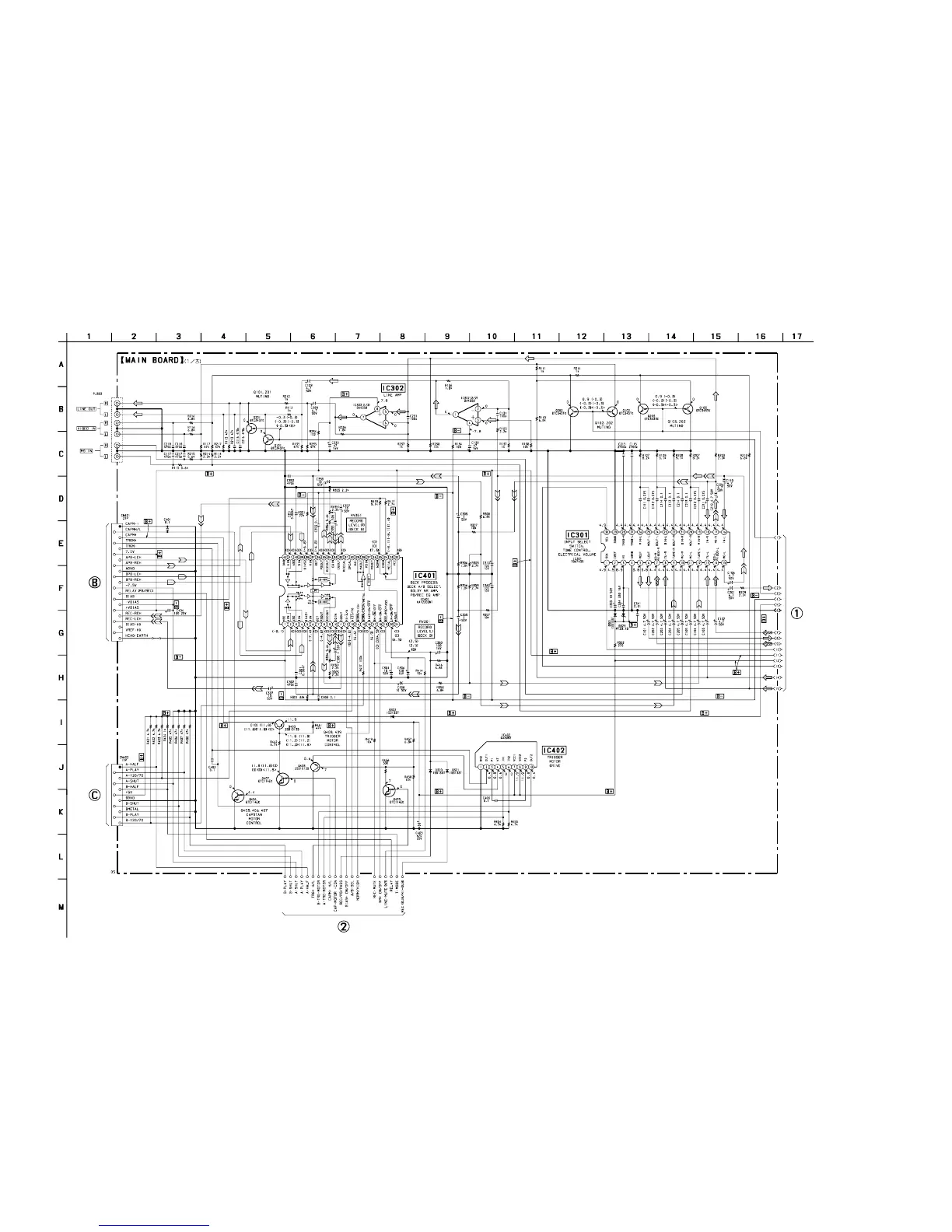

7-12. SCHEMATIC DIAGRAM – MAIN Section (1/3) – • See page 42 for IC Block Diagrams.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY
{ } : TAPE PLAYBACK (DECK A)
[ ] : TAPE PLAYBACK (DECK B)
〈〈 〉〉 : RECORD
< > : MD/VIDEO
(Page 27)
(Page 27)
(Page 33)
(Page 32)
