Sony HCD-CP2 - Printed Wiring Boards - AMP;HEADPHONE Boards

34
HCD-CP2
34

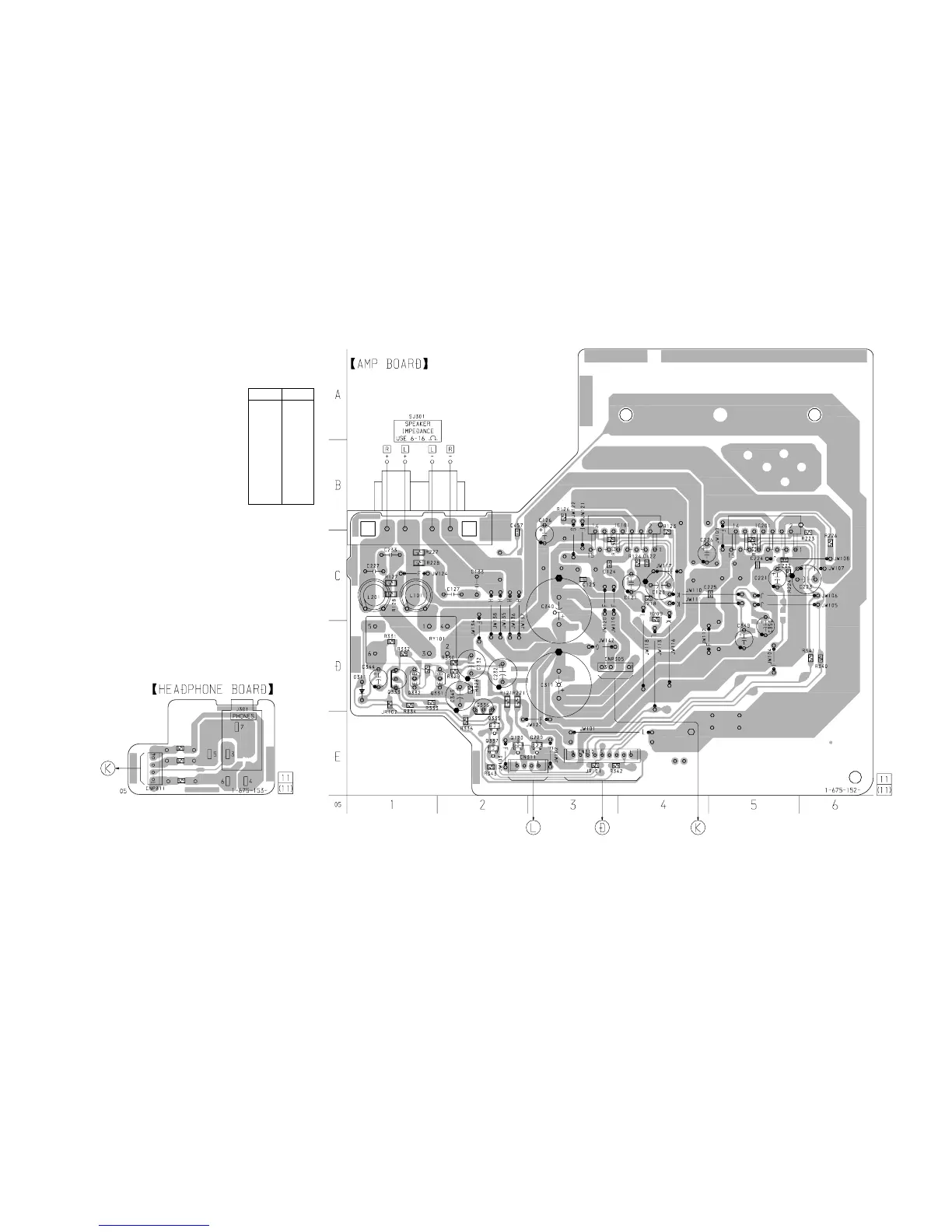

7-15. PRINTED WIRING BOARDS – AMP/HEADPHONE Boards – • See page 23 for Circuit Boards Location.
JR103
TO HEADPHONE
BOARD
L305
L304
L306
TO
AMP
BOARD
D311 D-1
IC101 B-4
IC201 B-5
Q120 E-2
Q220 E-3
Q331 D-2
Q332 D-1
Q333 D-1
Q335 E-2
Q336 D-2
Q337 E-2
• Semiconductor
Location
Ref. No. Location
(Page 38)
(Page 28)
