Sony HCD-CP2 - Schematic Diagram - MAIN Section (2;3)

32
HCD-CP2
32

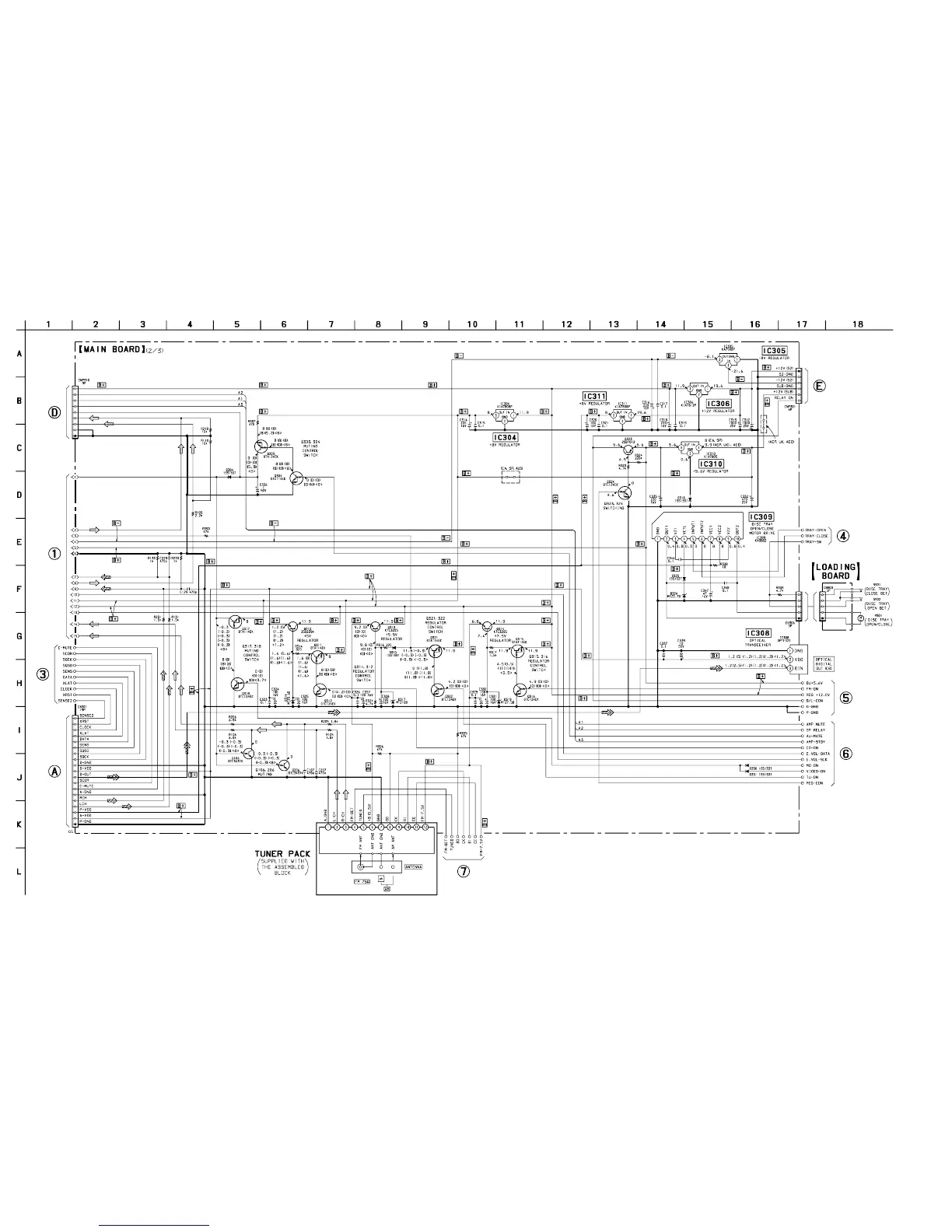

7-13. SCHEMATIC DIAGRAM – MAIN Section (2/3) – • See page 43 for IC Block Diagram.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY
{ } : TAPE PLAYBACK (DECK A)
[ ] : TAPE PLAYBACK (DECK B)
〈〈 〉〉 : RECORD
< > : MD/VIDEO
(Page 35)
(Page 31)
(Page
33)
(Page 25)
(Page 33)
(Page 33)
(Page 33)
(Page 33)
(Page 38)
