Sony HCD-CP2 - General; Location of Controls

4
SECTION 2
GENERAL

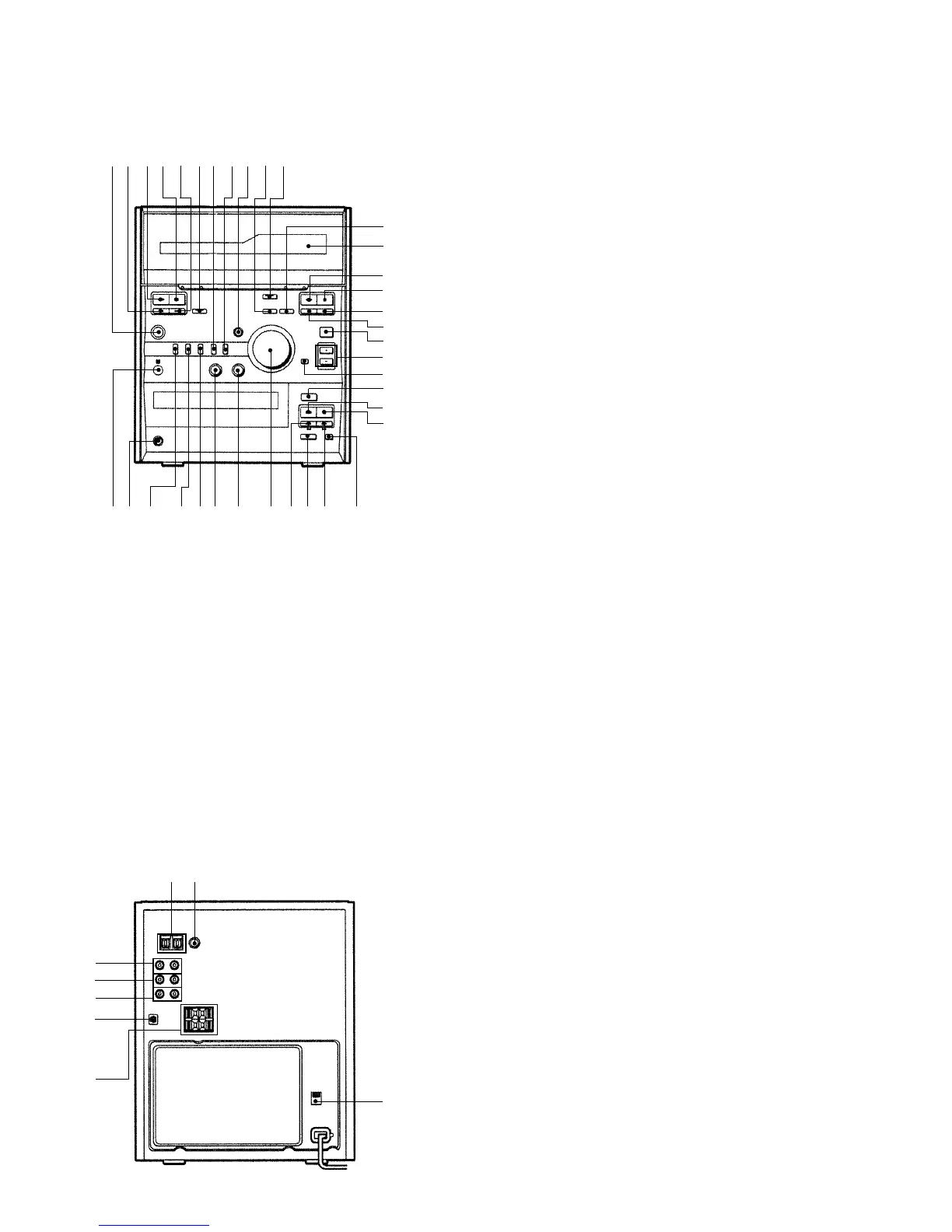

• LOCATION OF CONTROLS
– Front View –
1 STANDBY ?/1 button and indicator
2 TAPE A m button
3 TAPE A Y button
4 TAPE A x button
5 TAPE A M button
6 HI-SPEED DUBBING button and indicator
7 CD button and indicator
8 TUNER button and indicator
9 DSG button and indicator
0 X button
qa CD SYNC button and indicator
qs REC z button
qd Liquid crystal display
qf TAPE B Y button
qg TAPE B x button
qh TAPE B M button
qj TAPE B m button
qk TUNER BAND button
ql TUNING +/– buttons
w; TUNING MODE button
wa EJECT Z button
ws CD u button
wd CD x button
wf Remote sensor
wg PHONES jack
wh VIDEO button and indicator
wj MD button and indicator
wk TAPE button and indicator
wl BASS switch
e; TREBLE switch
ea VOLUME knob
es CD . m button
ed PLAY MODE button
ef CD > M button
eg REPEAT button
1 AM ANTENNA terminals
2 FM ANTENNA jack or terminals
3 VOLTAGE SELECTOR switch
(Saudi Arabia, singapore models)
4 LINE OUT jacks
5 MD IN jacks
6 VIDEO IN jacks
7 DIGITAL OUT OPTICAL (CD) connector
8 SPEAKER terminals
21
3
4
5
6
7
8
– Rear View –
3
wd
45
21
7
6
ql
w;
wa
ws
qk
qj
qh
qg
qf
qd
qs
qa
0
9
8
eg
efed
eswj
wk
ea
e;wlwh
wg
wf
