Sony HCD-CP2 - Printed Wiring Board - CONTROL Board

36
HCD-CP2
36

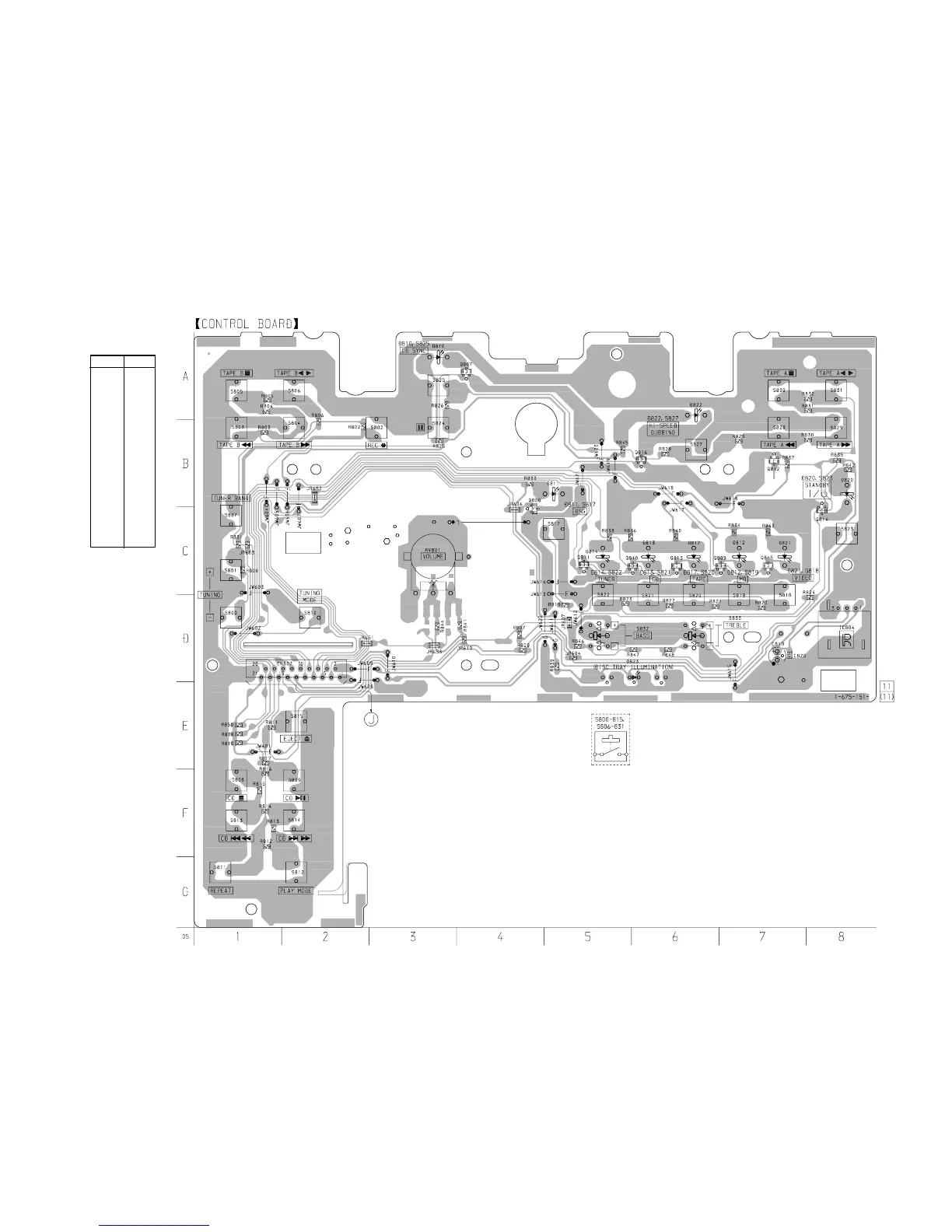

7-17. PRINTED WIRING BOARD – CONTROL Board – • See page 23 for Circuit Boards Location.
D810 A-3
D811 B-5
D812 C-7
D813 C-6
D814 C-5
D817 C-6
D820 B-8
D821 C-7
D822 A-6
D823 D-6
IC804 D-8
Q807 A-4
Q808 C-4
Q809 C-7
Q810 C-6
Q811 C-5
Q812 B-7
Q813 C-6
Q814 C-8
Q815 C-7
Q816 B-6
• Semiconductor
Location
Ref. No. Location
(Page 28)
