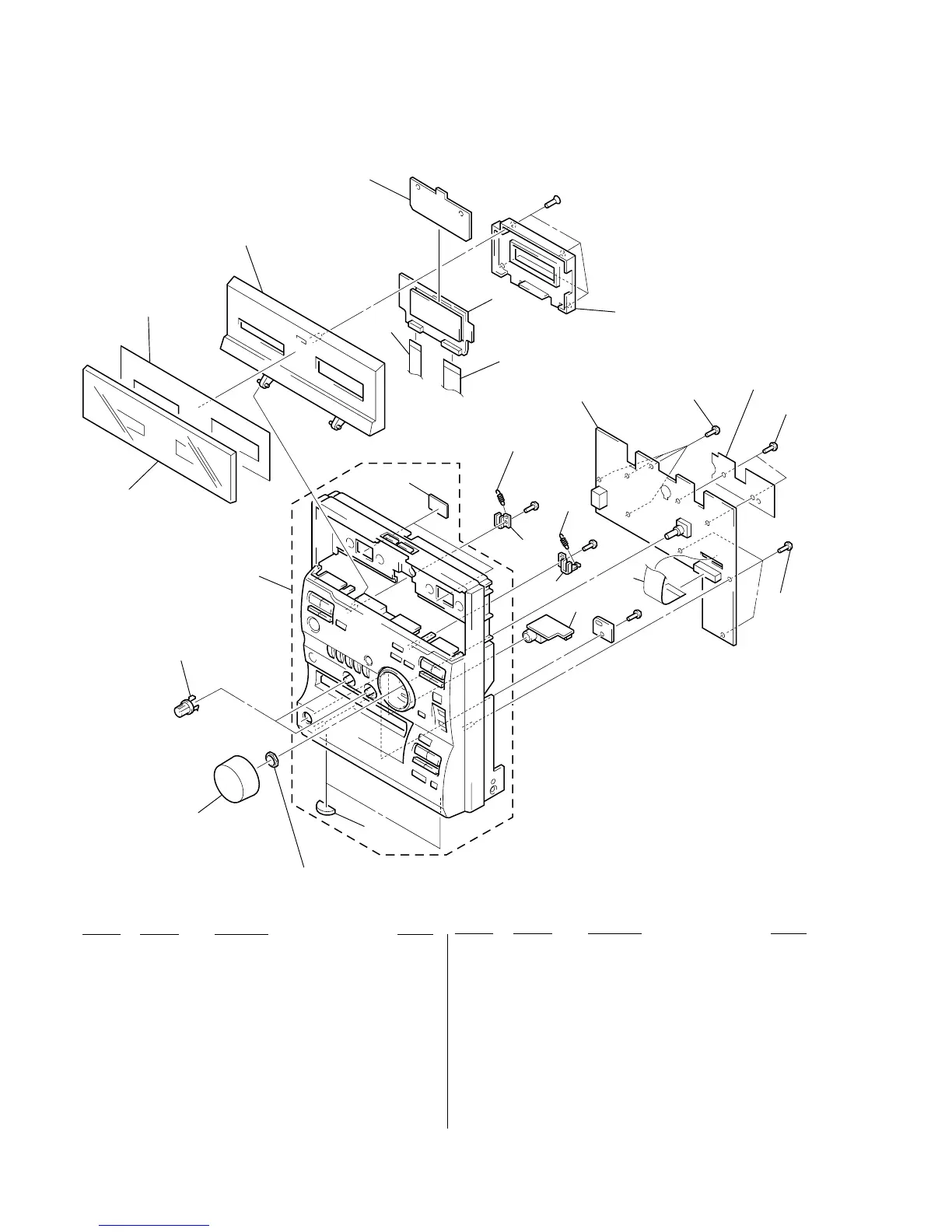

(2) FRONT PANEL SECTION
#1
#2
#1
not supplie
d
supplied with
RV801
#1
55
56
60
62
59
58
57
54
62
63
53
52
51
68
70
67
69
69
69
66
64
65
63
51 X-4952-108-1 KNOB ASSY
52 4-222-401-01 BUTTON (BASS)
53 X-4951-956-1 PANEL SUB ASSY, FRONT (AEP, UK, AED)
53 X-4952-135-1 PANEL SUB ASSY, FRONT (EA, SP, AUS)
54 4-222-362-01 WINDOW (CASSETTE)
55 4-222-368-01 SHEET (CASSETTE)
56 4-222-363-01 LID, CASSETTE
57 1-791-437-11 WIRE (FLAT TYPE) (17 CORE)
58 1-791-438-11 WIRE (FLAT TYPE) (21 CORE) (180mm)
59 1-675-150-11 LCD BOARD
60 4-217-319-01 PLATE, LCD LIGHT
61 4-222-376-01 BRACKET (LCD)
62 1-418-482-11 ILLUMINATION BLOCK, LED
63 4-222-388-01 SPRING (CASSETTE LID)
64 4-222-394-01 BRACKET (CASSETTE LID A)
65 4-222-395-01 BRACKET (CASSETTE LID B)
66 1-791-435-11 WIRE (FLAT TYPE) (21 CORE) (105mm)
67 A-4426-637-A CONTROL BOARD, COMPLETE
68 4-218-204-01 FOOT (FRONT)
69 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
70 1-675-153-11 HEADPHONE BOARD
