Sony HCD-CP2 - Page 49

49
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101
112
107
111
110
109
108
106
105
104
113
102
103
114
115
UK
#4
#4
#1
#1
#1
#1
#1
#1
T901
#1
#1
not supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#1
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 4-222-377-01 CHASSIS (LOWER)
102 1-675-155-11 POWER BOARD
103 4-222-361-01 PANEL, BACK (AEP, UK, AED)
103 4-222-361-21 PANEL, BACK (EA, SP)
103 4-222-361-31 PANEL, BACK (AUS)
104 1-675-154-11 RETAINER BOARD
105 A-4426-641-A MAIN BOARD, COMPLETE (AEP, UK, AED)
105 A-4426-844-A MAIN BOARD, COMPLETE (EA, SP)
105 A-4428-617-A MAIN BOARD, COMPLETE (AUS)
106 A-4411-460-A TUNER PACK (AEP, UK, AED)
106 A-4426-617-A TUNER PACK (EA, SP, AUS)
107 A-4426-642-A AMP BOARD, COMPLETE (AEP, UK, AED)
107 A-4426-842-A AMP BOARD, COMPLETE (EA, SP)
107 A-4473-065-A AMP BOARD, COMPLETE (AUS)
108 1-791-436-11 WIRE (FLAT TYPE) (21 CORE)
109 1-791-434-11 WIRE (FLAT TYPE) (11 CORE)
110 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
* 111 4-217-354-01 BUSHING, INSULATING
112 4-217-355-01 FOOT
113 4-217-332-01 LID, CD
0 114 1-690-608-11 CORD, POWER (WITH CONNECTOR) (AUS)
0 114 1-696-169-11 CORD, POWER
0 115 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
0 T901 1-435-100-11 TRANSFORMER, POWER (AEP, UK, AED, AUS)
0 T901 1-435-101-11 TRANSFORMER, POWER (EA, SP)

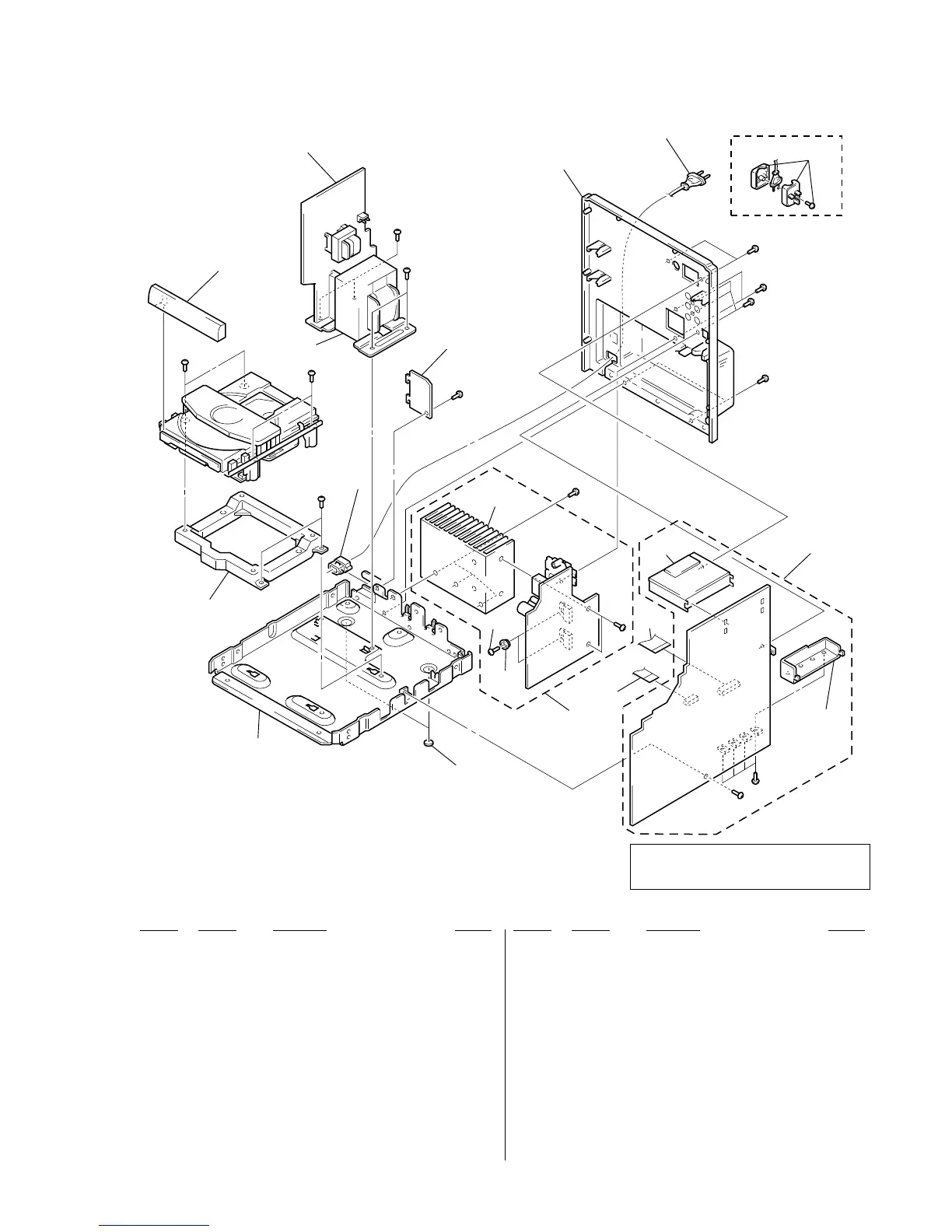

(3) CHASSIS SECTION
