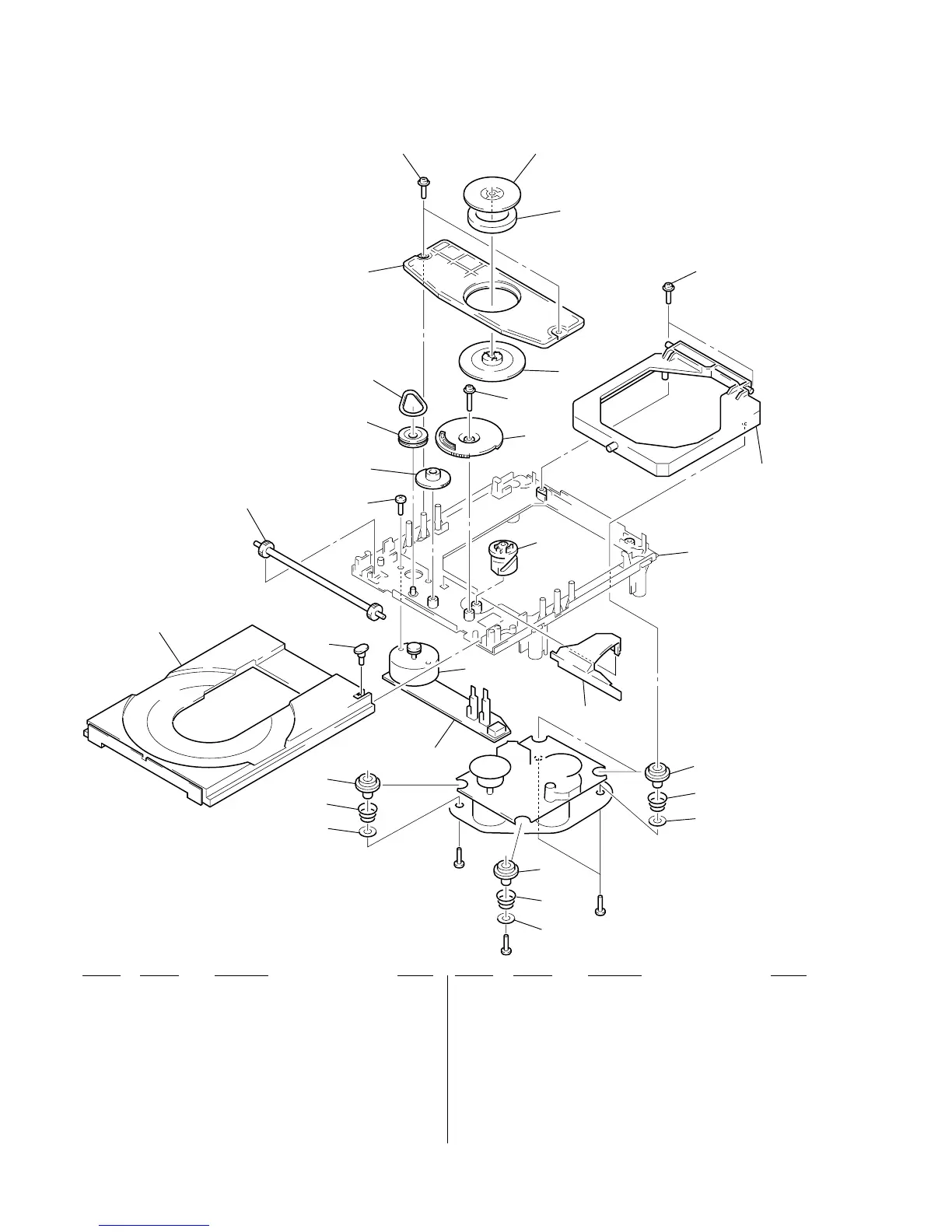

(4) CD MECHANISM DECK SECTION-1
(KSL-2130CCP/K1N)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 151 2-646-290-01 TRAY (2130)
152 2-625-541-02 DAMPER (S)
153 2-625-279-01 SCREW (B 2.6X2.5), +
154 2-625-274-02 GEAR, MIDWAY
155 2-625-276-02 PULLEY, LOADING
156 3-653-387-00 BELT, LM
157 2-626-294-01 SCREW (+PTPWH) (2.6X7)
* 158 2-625-284-05 PLATE, CHUCKING
159 1-452-493-21 MAGNET
160 2-625-286-03 PULLEY, CHUCKING
161 3-319-501-51 SCREW (+PTPWH) (2.6X16)
* 162 2-646-288-01 CHASSIS (2130), SUB
* 164 1-640-523-11 LOADING BOARD
* 165 2-627-234-01 INSULATOR
166 2-627-235-01 SPRING (REAR), COIL
167 2-646-289-01 WASHER (2130)
168 2-641-386-01 SCREW (2X5), TAPPING (S)
169 2-627-236-01 SPRING (FRONT), COIL
M901 X-2625-117-1 MOTOR ASSY, LOADING
151
152
153
154
155
156
157
158
159
160
162
157
161
not
supplied
not
supplied
not
supplied
M901
#5
#5
#5
not
supplied
163
164
165
165
166
167
169
167
not
supplied
165
166
167
