Sony HCD-CP2 - Page 51

51

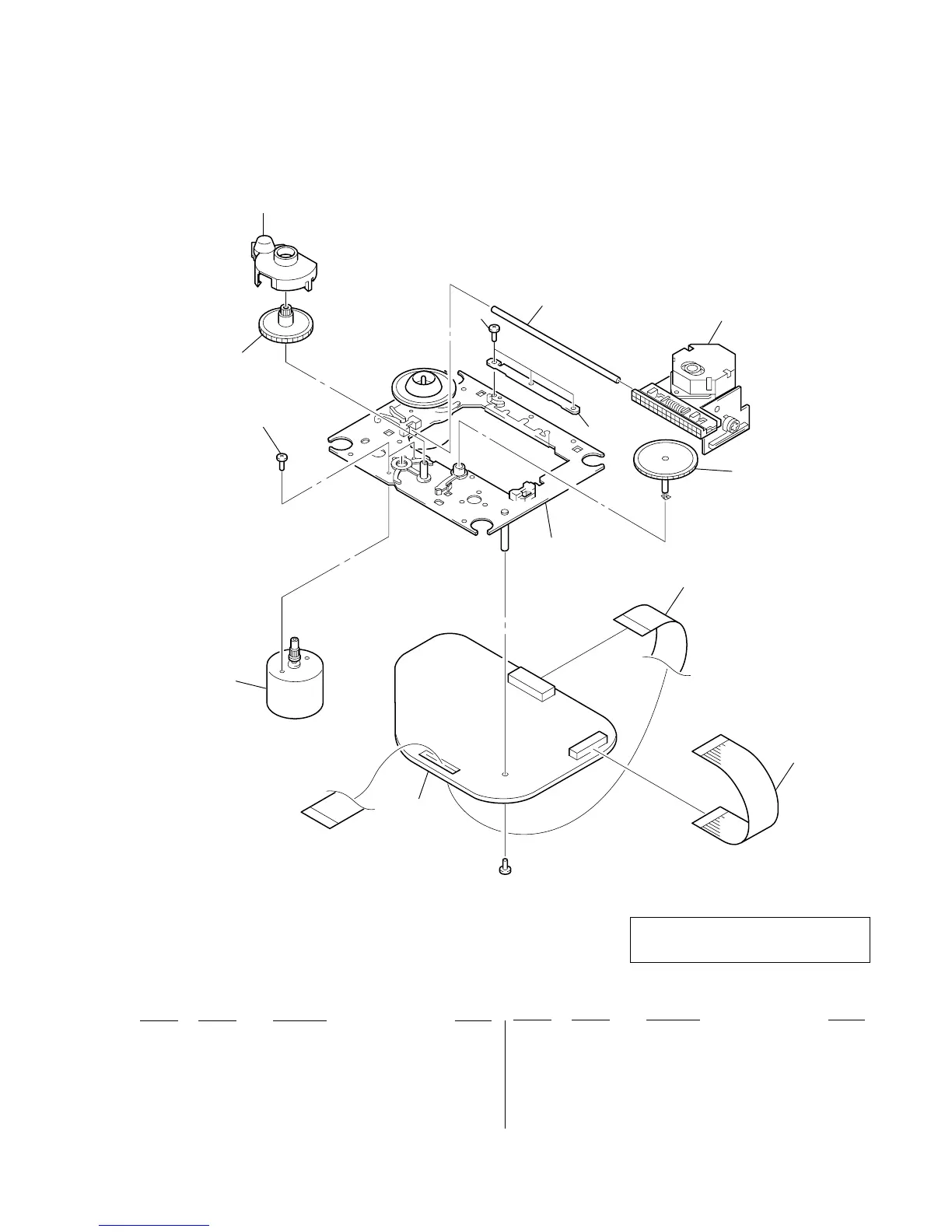

(5) CD MECHANISM DECK SECTION-2
(KSL-2130CCP/K1N)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-4405-850-A CD BOARD, COMPLETE
202 2-625-188-02 GEAR (A)
203 2-627-003-02 GEAR (B) (RP)
204 1-773-126-11 WIRE (FLAT TYPE) (19 CORE)
205 2-626-908-01 SHAFT, SLED
0 206 8-820-070-02 OPTICAL PICK-UP KSM-213CCP/K1N
207 3-713-786-51 SCREW +P 2X3
208 2-641-386-01 SCREW (2X5), TAPPING (S)
209 1-773-113-11 WIRE (FLAT TYPE) (16 CORE)
M701 X-2646-381-1 MOTOR CHASSIS ASSY (MB) (SPINDLE)
M702 X-2625-769-1 MOTOR GEAR ASSY (MB) (RP) (SLED)
not supplied
not supplied
203
207
208
M702
201
204
209
M701
202
206
205
#6
