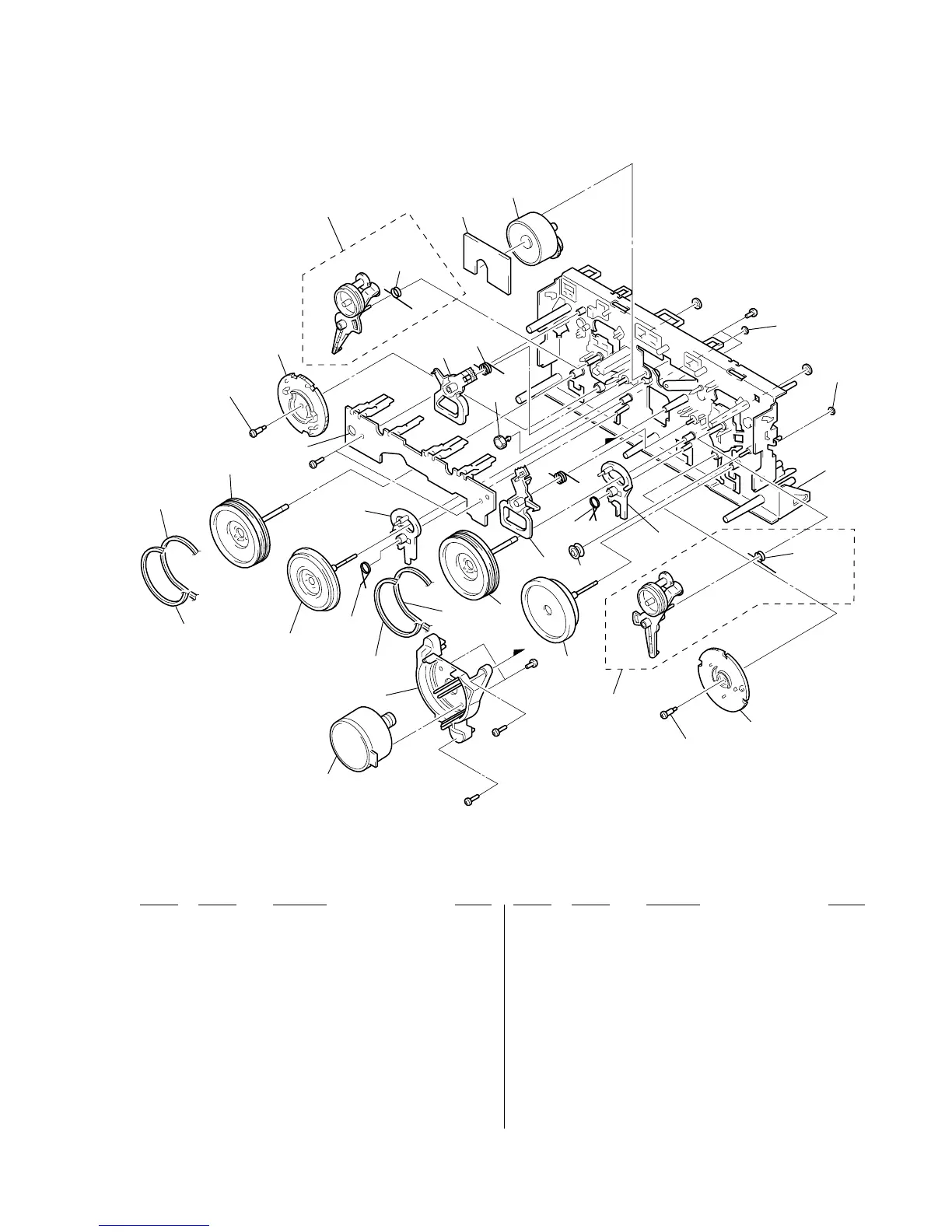

(7) TAPE MECHANISM DECK SECTION-2
(TCM-220WR2E)
301 3-908-597-01 CAM (A)
302 3-908-608-11 SCREW, STEP
303 X-3372-930-1 ARM (A) ASSY, FR
304 X-3370-882-1 FLYWHEEL (AR) ASSY
305 3-928-047-01 PULLEY, TENSION
306 3-908-599-01 LEVER (REV-A)
307 3-908-601-01 SPRING (REV LEVER), TORSION
308 3-908-603-01 LEVER (TRIGGER A)
309 X-3367-593-1 FLYWHEEL (BF) ASSY
310 3-908-605-01 SPRING (TRIGGER), TORSION
311 3-908-609-01 GEAR, TRIGGER
312 3-913-845-11 BELT (A)
313 3-913-846-11 BELT (FR)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
314 X-3370-171-1 FLYWHEEL (BR) ASSY
315 3-908-600-01 LEVER (REV-B)
* 316 1-650-669-11 LEAF SWITCH BOARD
317 3-908-598-01 CAM (B)
318 X-3372-931-1 ARM (B) ASSY, FR
319 3-911-114-01 SPRING (FR), TORSION
320 3-908-604-01 LEVER (TRIGGER B)
321 3-911-115-01 WASHER, STOPPER
322 X-3371-441-1 CHASSIS ASSY, MECHANICAL
323 3-917-176-11 BELT (B)
324 X-3370-172-1 FLYWHEEL (AF) ASSY
M1 X-3371-223-1 MOTOR ASSY, CAPSTAN
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)
