Sony HCD-CP2 - Page 9

9

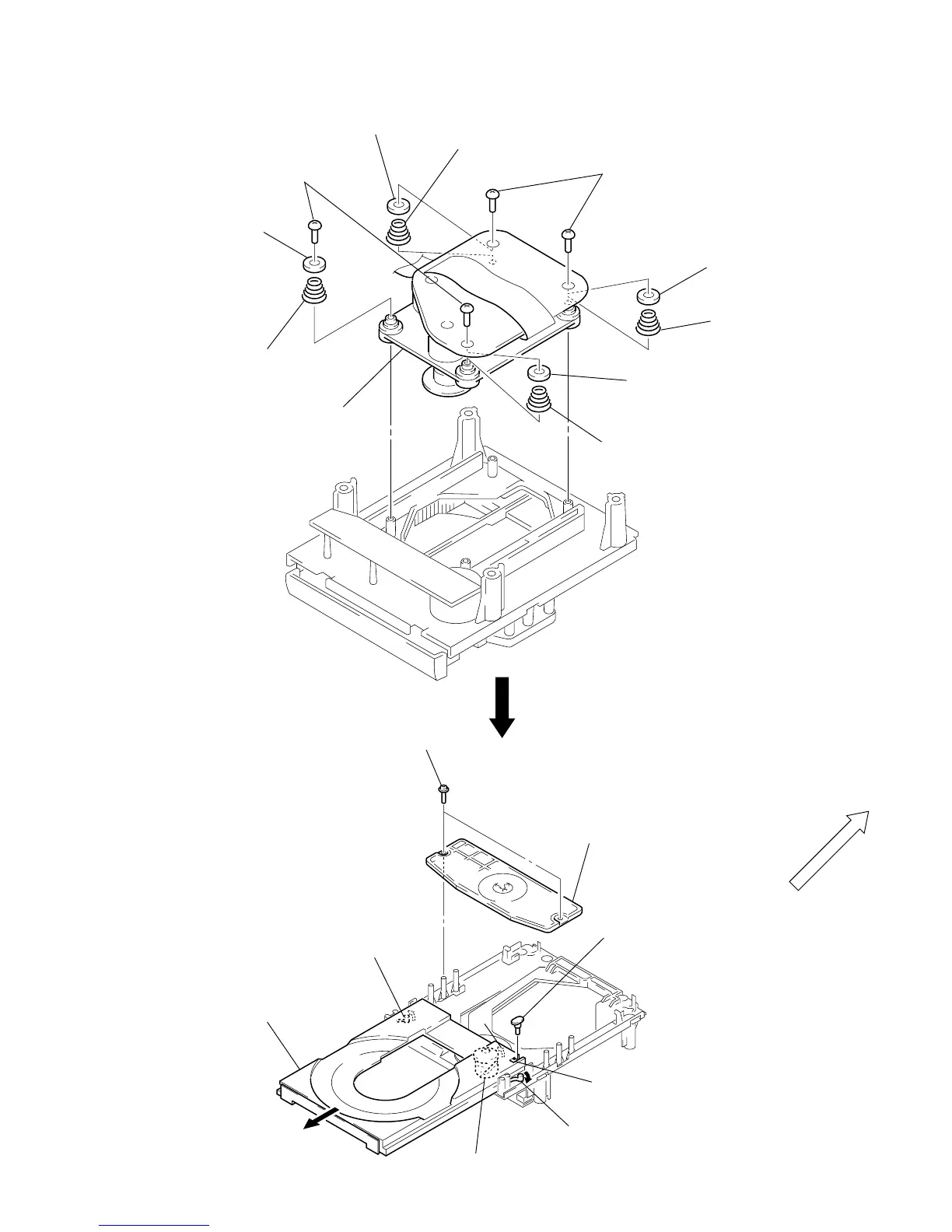

CD BOLCK ASSY
1 two screws
(P2.6 × 10)
2 washer (2130)
3 coil spring (front)
3 coil spring
(front)
4 CD block assy
2 washer (2130)
3 coil spring (front)
3 coil spring (front
)
2 washer (2130)
1 two screws
(P2.6 × 10)
2 washer (2130)
4 Pull the tray (2130).
8 Remove the tray (2130).
7 lock lever
1 two screws
(PTPWH2.6 × 7)
2 chucking yoke (K)
6 damper (S)
5 claw
7 lock lever
3 Rotate the control cam
in the direction of arrow A.
A
TRAY (2130)
