Sony HCD-CPX11 - BOARD AND MECHANISM DISASSEMBLY

13
HCD-CPX11

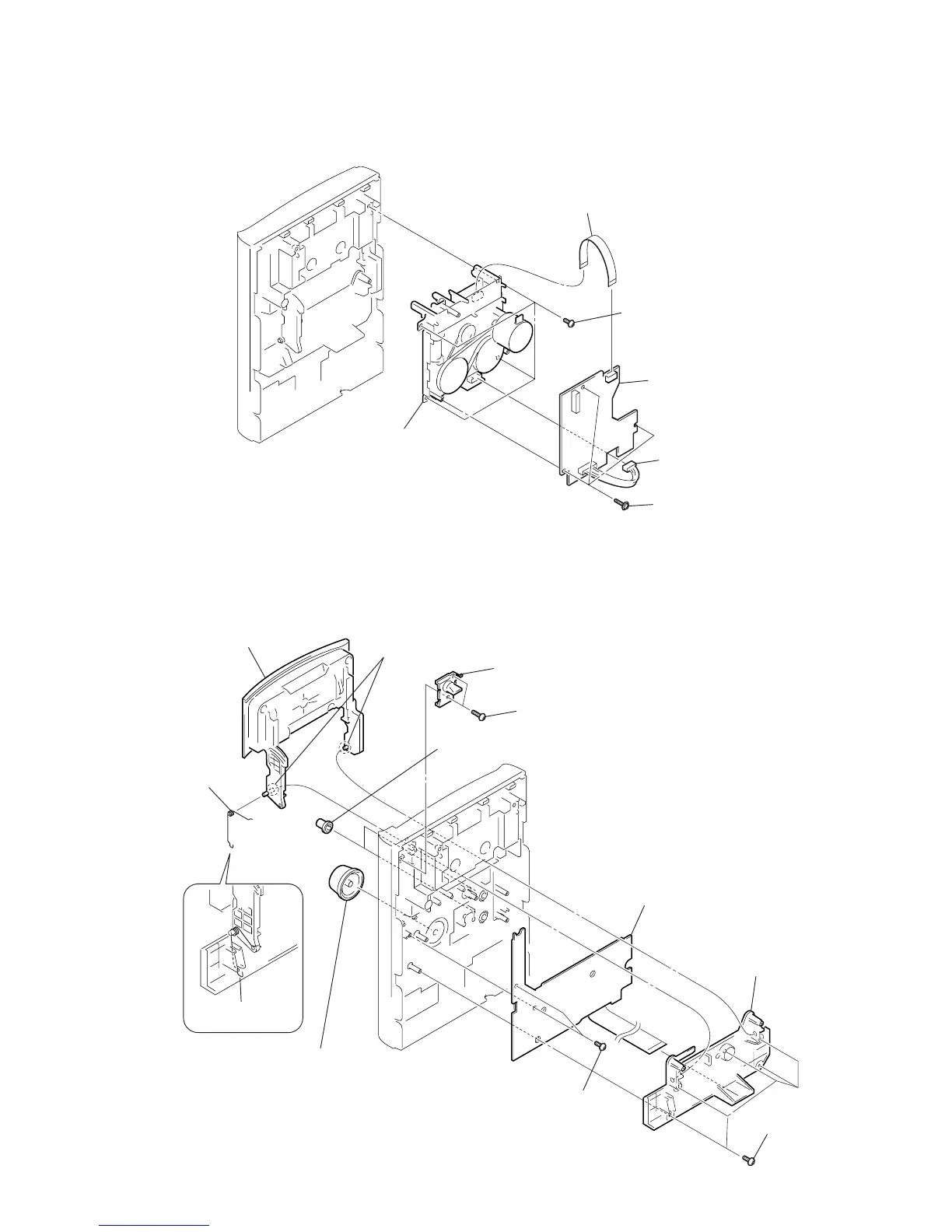

3-3. TC BOARD, MECHANICAL DECK
3-4. PANEL BOARD
1 four screws (+BVTP 3 × 8
)
3 three screws
(PTPWH2)
6 mechanical deck
4 connector (6p)
5 TC board
2 wire (flat type) 8 core
6 five screws
(+BVTP 2.6 × 8 )
7 holder
qa PANEL board
q; two screws (+BVTP 2.6 × 8 )
8 two screws (+BVTP 2.6 × 10 )
9 cover (eject)
5 lid (TC) section
4 two dowels
3 spring (LID TC)
tortion
spring (LID TC)
torsion
1 volume knob
2 two buss knobs
