Sony HCD-CPX11 - Printed Wiring Board - PANEL Section

4242
HCD-CPX11

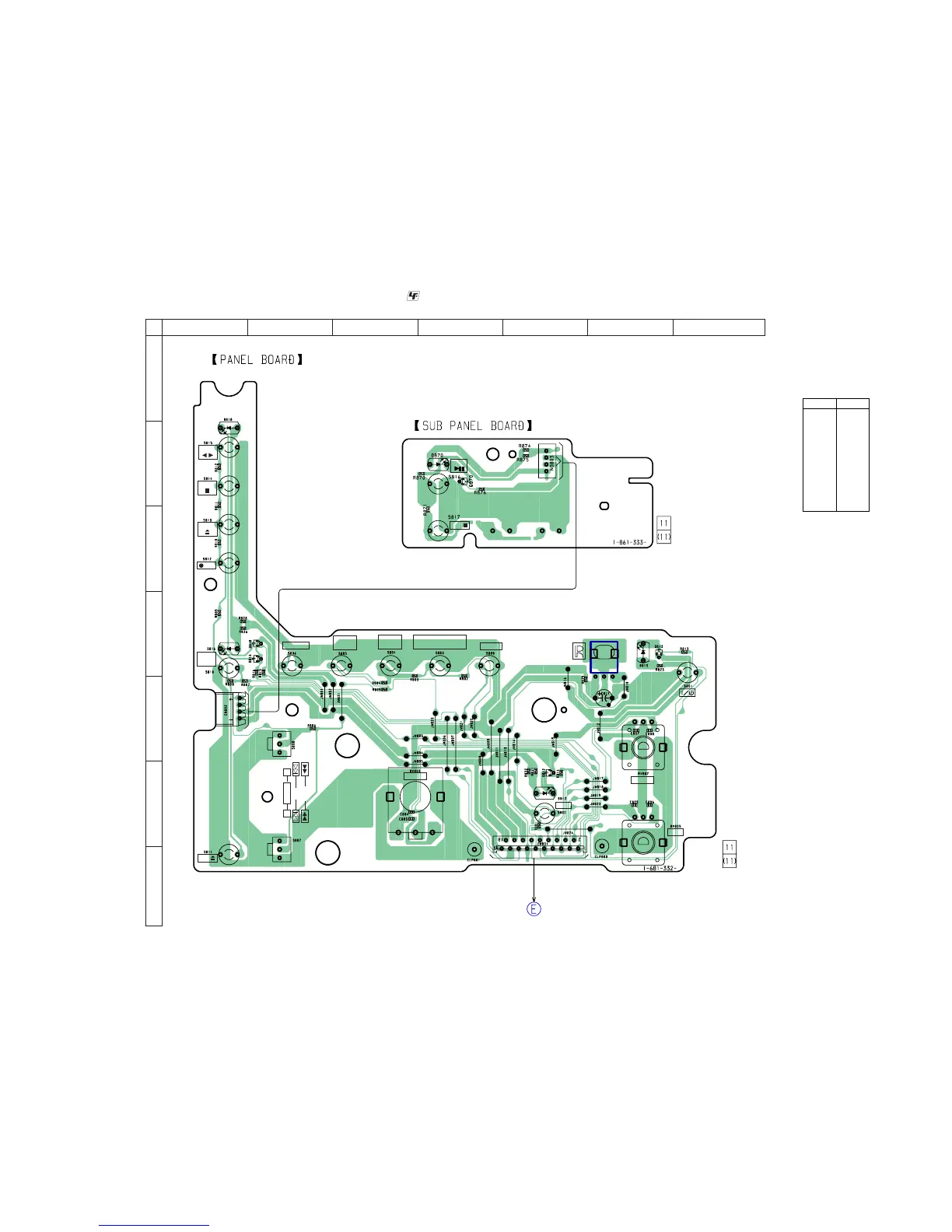

6-12. PRINTED WIRING BOARD — PANEL SECTION —
IC802
TAPE
(TAPE)
(TAPE)
TUNER/
BAND
CD
SYNCHRO
CD
REPEAT
FM MODE
PLAY MODE/DIRECTION
TUNING MODE
REC
FUNCTION
DISPLAY
TREBLE
BASS
DSGX
VOLUME
TUNING
+
-
(CD)
(CD)
31
E
(STAND BY)
E
(CD)
(TAPE)
E
E
MAIN
BOARD
CN303
E
1
4
12
A
B
C
D
E
F
G
34567
• Semiconductor
Location
Ref. No. Location
D812 F-5
D813 D-6
D816 D-6
D818 B-1
D870 B-4
IC802 D-6
Q812 F-5
Q813 D-6
Q816 D-2
Q818 D-2
Q870 B-4
• See page 27 for Circuit Boards Location. :Uses unleaded solder.
(Page 36)
