Sony HCD-CPX11 - BASE UNIT SECTION (BU-F1 BD81 A) EXPLODED VIEW

65
HCD-CPX11

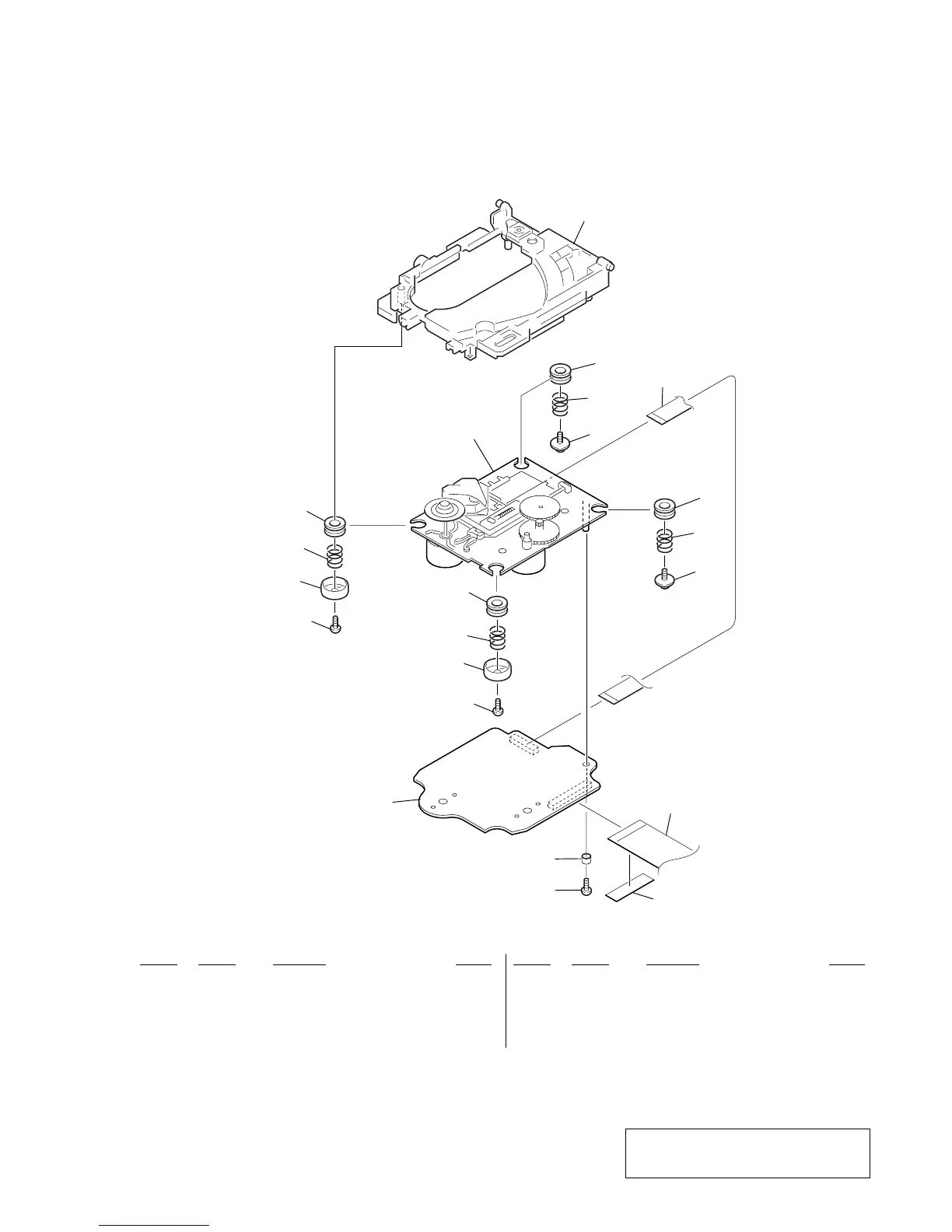

7-9. BASE UNIT SECTION (BU-F1BD81A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
551 A-4751-431-A BD81A BOARD, COMPLETE
552 4-951-620-01 SCREW (2.6X8), +BVTP
553 4-231-151-01 STOPPER (BU)
554 4-227-045-31 SPRING (INSULATOR), COIL
555 4-227-549-11 INSULATOR
0 556 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP)
557 1-775-241-11 WIRE (FLAT TYPE) (27 CORE)
558 X-4956-146-1 HOLDER (BU215) ASSY
559 1-827-992-11 WIRE (FLAT TYPE)(16 CORE)
560 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
559
551
555
554
553
552
557
552
558
555
554
555
554
554
560
553
552
555
556
560
not
supplied
not supplied
