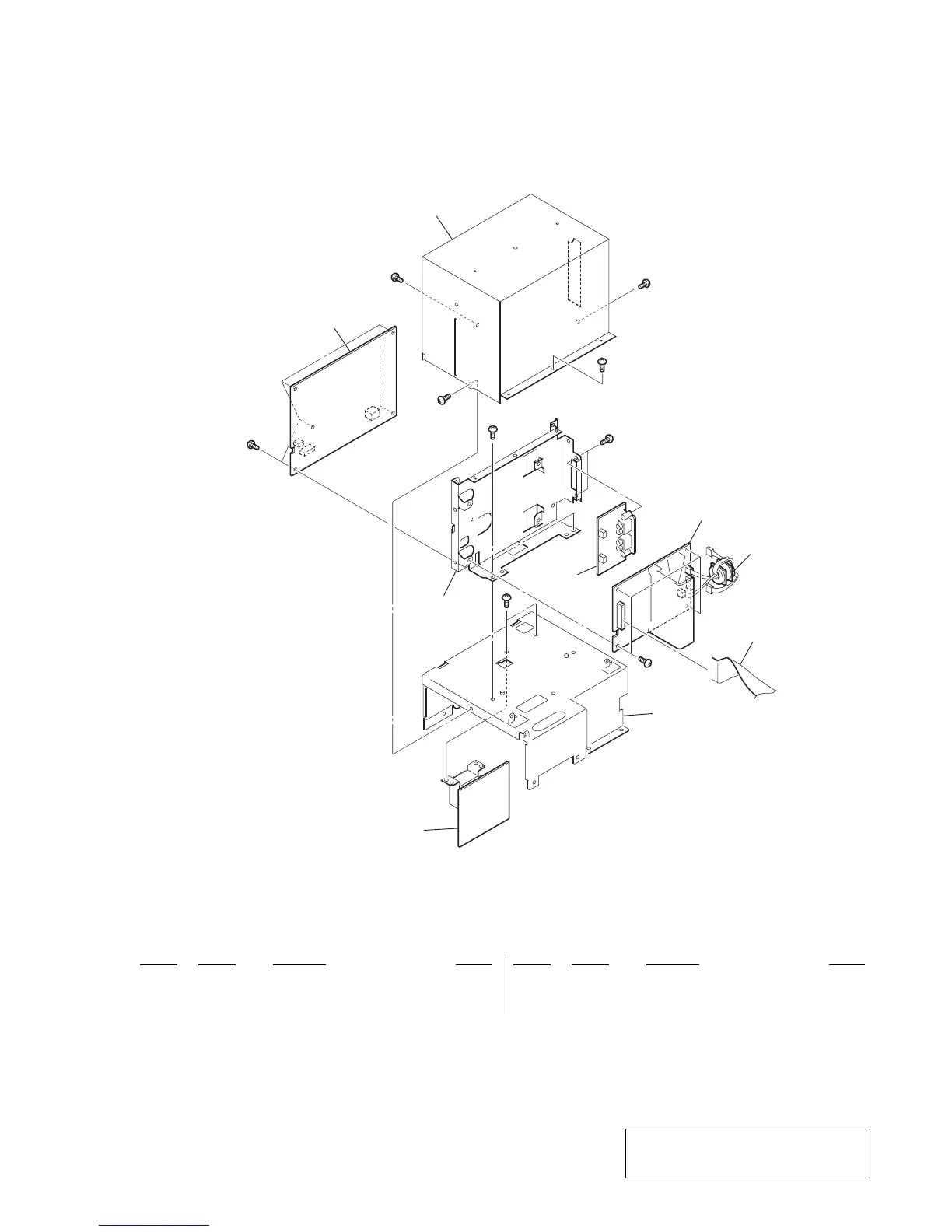

Sony HCD-CPX11 - S-MASTER AMP SECTION EXPLODED VIEW

61
HCD-CPX11
0 201 1-468-730-11 REGULATOR, SWITCHING
202 A-4750-366-A S-MASTER AMP BOARD, COMPLETE
203 1-500-484-21 CLAMP, SLEEVE FERRITE
204 1-773-158-11 WIRE (FLAT TYPE) (21 CORE)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-5. S-MASTER AMP SECTION
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#1
#1
#2
#1
#1
#1
201
202
204
203
