HCD-CPX11
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
KR : Korean model
Ref. No. Part No. Description Remark
1 4-235-099-11 SCREW (CASE 3 TP2)
2 4-244-016-21 COVER
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B)

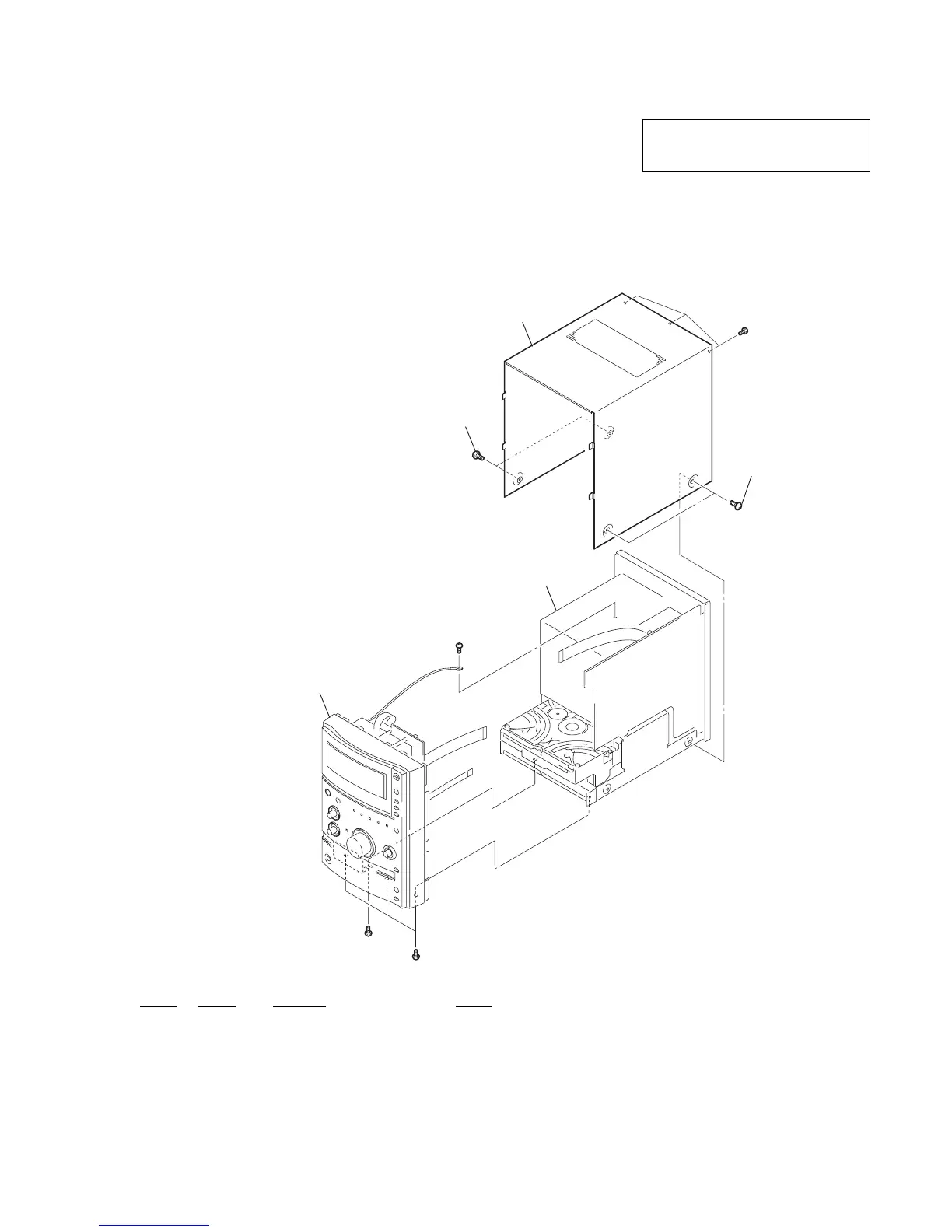

7-1. MAIN SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
#1
#1
#1
#1
1
1
front panel section
chassis section
2
To Next Page
