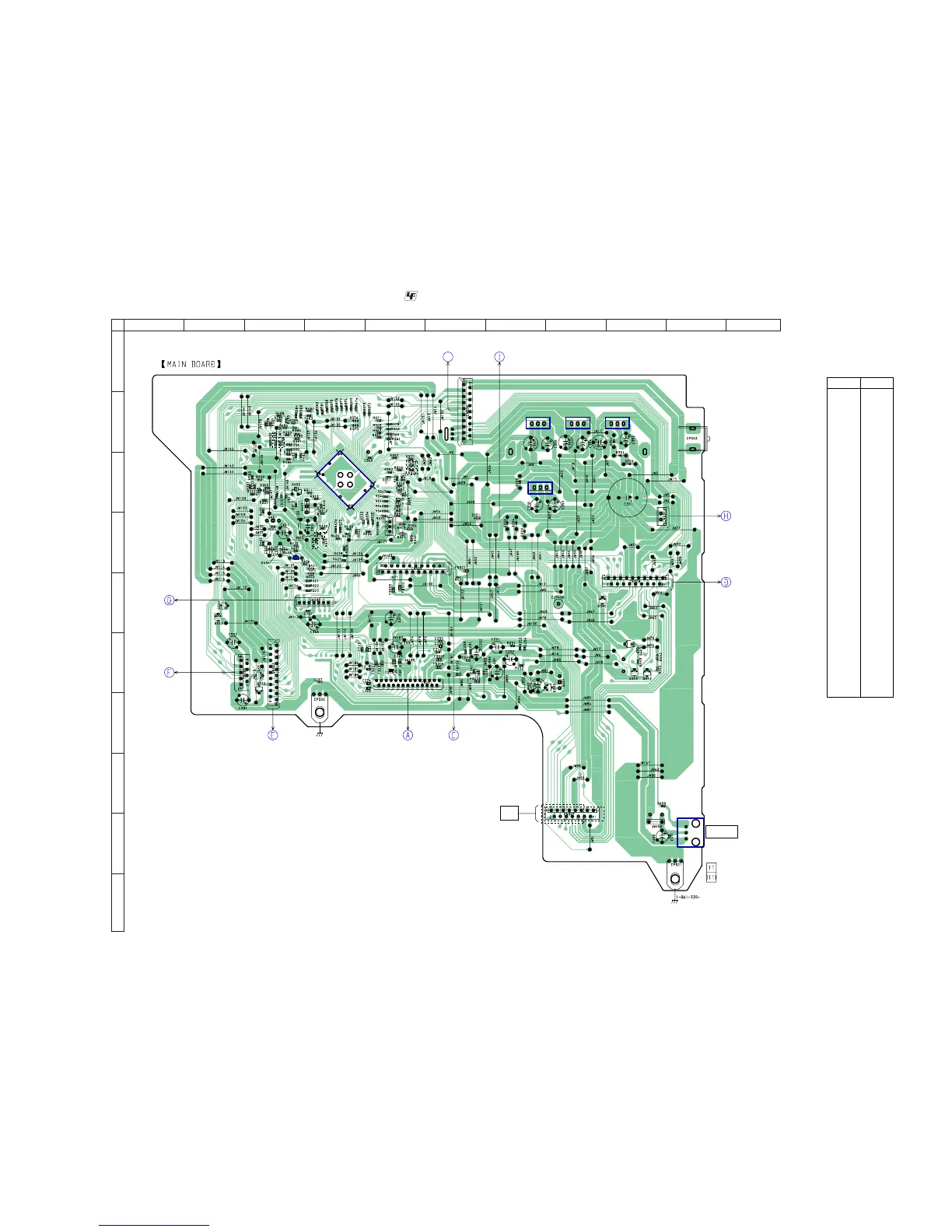

6-6. PRINTED WIRING BOARD — MAIN SECTION —
• Semiconductor
Location
Ref. No. Location
D201 D-6
D202 D-7
D203 D-7
D204 D-7
D205 C-7
D301 D-5
D302 D-5
D303 D-5
D304 D-5
D350 C-9
D351 C-9
D352 B-9
D374 B-4
D375 B-4
D401 D-4
D402 E-4
D403 D-3
D404 D-3
D442 F-9
D443 F-9
IC201 B-9
IC202 B-7
IC203 B-8
IC204 B-9
IC300 C-4
IC401 D-3
IC450 I-10
Q201 F-8
Q202 F-7
Q331 F-3
Q332 F-3
Q333 E-2
Q334 E-2
Q340 E-8
Q341 E-9
Q342 F-9
Q343 F-9
Q401 D-3
IC300
IC401
IC202 IC203 IC201
IC204
IC450
DRIVER
BOARD
CN701
LCD
BOARD
CN805
PANEL
BOARD
CN801
BD81A
BOARD
CN201
S-MASTER AMP
BOARD
CN601
SUB POWER
BOARD
NO992
TC
BOARD
CN603
B
SWITCHING
REGULATOR
PRE AMP
BOARD
CN101
CD DIGITAL OUT
(OPTICAL)
1
3
(CHASSIS)
KR,AUS
AEP,UK
TUNER
UNIT
E
E
E
E
E
E
2
1
1
1
3
3
1
3
1
3
KR,AUS
KR,AUS
AUS,KR
AEP,UK
AEP,UK
AEP,UK
3
7
E
E
E
1
E
27
26
1
2
(CHASSIS)
12
A
B
C
D
E
F
G
H
I
J
34567891011
• See page 27 for Circuit Boards Location. :Uses unleaded solder.
