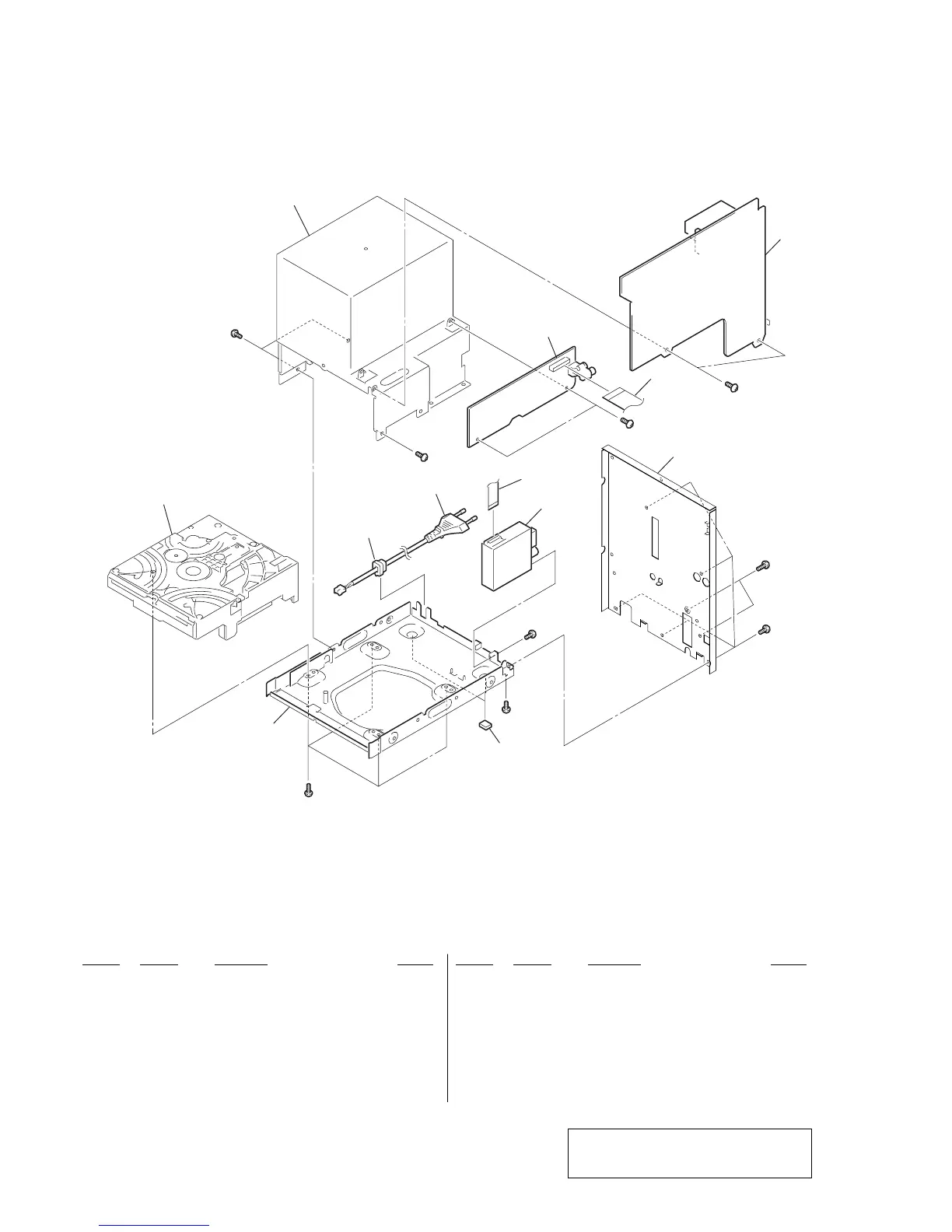

Sony HCD-CPX11 - CHASSIS SECTION EXPLODED VIEW

60
HCD-CPX11
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-4. CHASSIS SECTION
0 151 1-769-079-23 CORD, POWER (KR)
0 151 1-777-071-83 CORD, POWER (AEP, UK)
0 151 1-783-203-13 CORD, POWER (AUS)
152 3-703-244-00 BUSHING (2104), CORD
153 A-4750-356-A PRE AMP BOARD, COMPLETE
154 A-4750-353-A MAIN BOARD, COMPLETE (AEP, UK)
154 A-4750-940-A MAIN BOARD, COMPLETE (KR, AUS)
155 1-777-353-11 FLAT CABLE (15 CORE) (AEP, UK)
155 1-824-486-11 WIRE (FLAT TYPE) (11 CORE) (KR, AUS)
156 1-693-603-31 TUNER (FM/AM) (AUS)
156 1-693-604-11 TUNER (FM/AM) (AEP, UK)
156 1-693-605-11 TUNER (FM/AM) (KR)
157 4-233-372-02 FOOT (FELT)
158 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
not
supplied
not
supplied
#3
#1
#1
#1
#1
#1
#1
#1
#1
157
156
155
152
S-MASTER AMP section
CD mchanism deck section
151
153
154
158
