HCD-CPX11

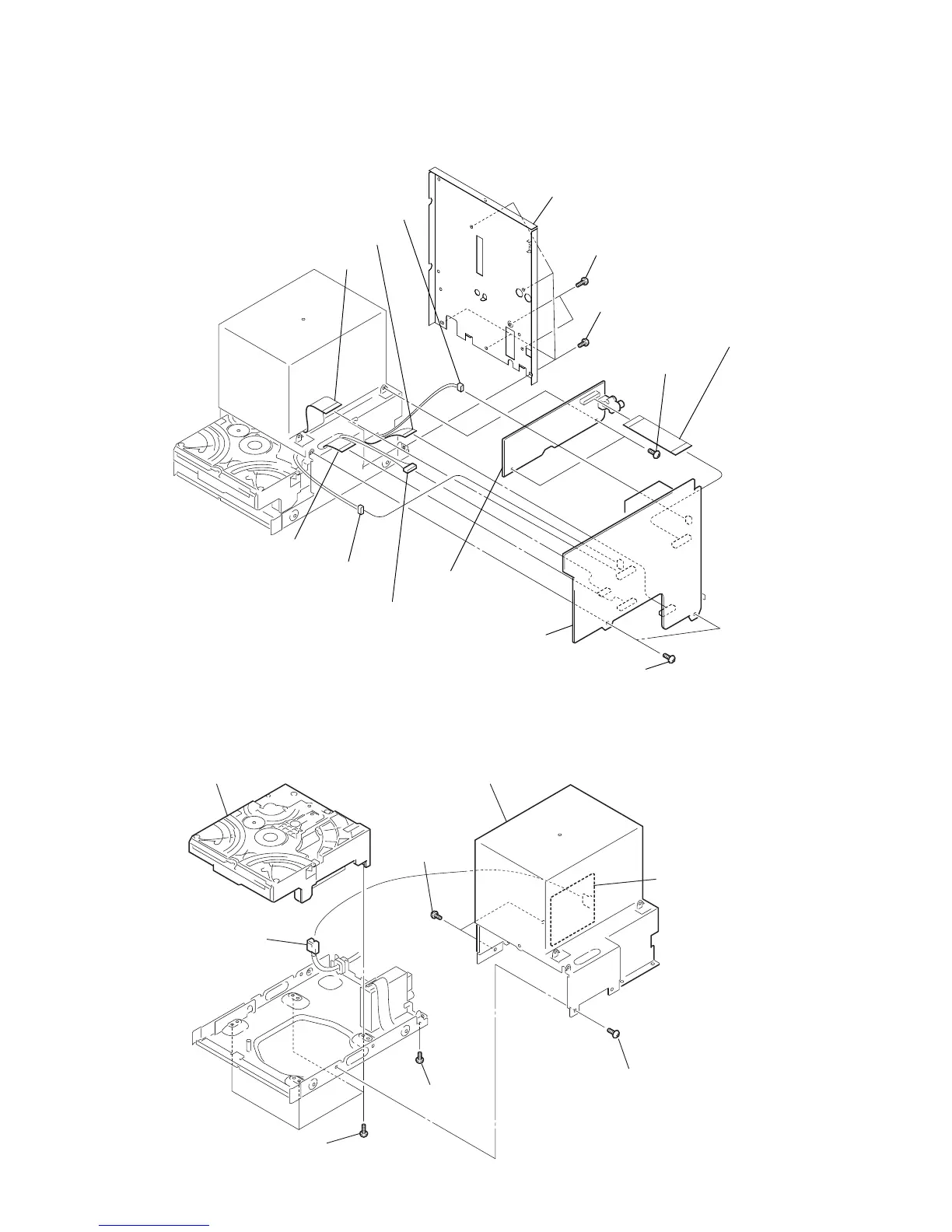

3-5. MAIN BOARD, PRE AMP BOARD
3-6. CD MECHANISM DECK (CDM80BH-F1BD81)
5 wire (flat type) 19 cor
e
7 wire (flat type) 15 core (CN307)
q; wire (flat type) 27 core (CN201)
8 wire (flat type) 22 core (CN309)
2 two screws (+BVTP 3 × 6 )
4 two screws (+BVTP 3 × 6 )
3 back panel
1 five screws (+BVTP 3 × 6 )
qd two screws (+BVTP 3 × 6 )
qf PRE AMP board
qs MAIN board
6 connector 2p (CN301)
qa connector 3p (CN302)
9 connector 7p (CN202)
3 screw (+BVTP 3 × 6 )
2 two screws
(+BVTP 3
× 6 )
7 CD mechanism deck
5 S-MASTER AMP section
SUB POWER board
6 four screws (+BVTP 3 × 10 )
1 connector 2p (CN990)
4 screw
(+BVTP 3
× 6 )
