Sony HCD-CPX11 - SUB-ASSEMBLY DISASSEMBLY

18
HCD-CPX11

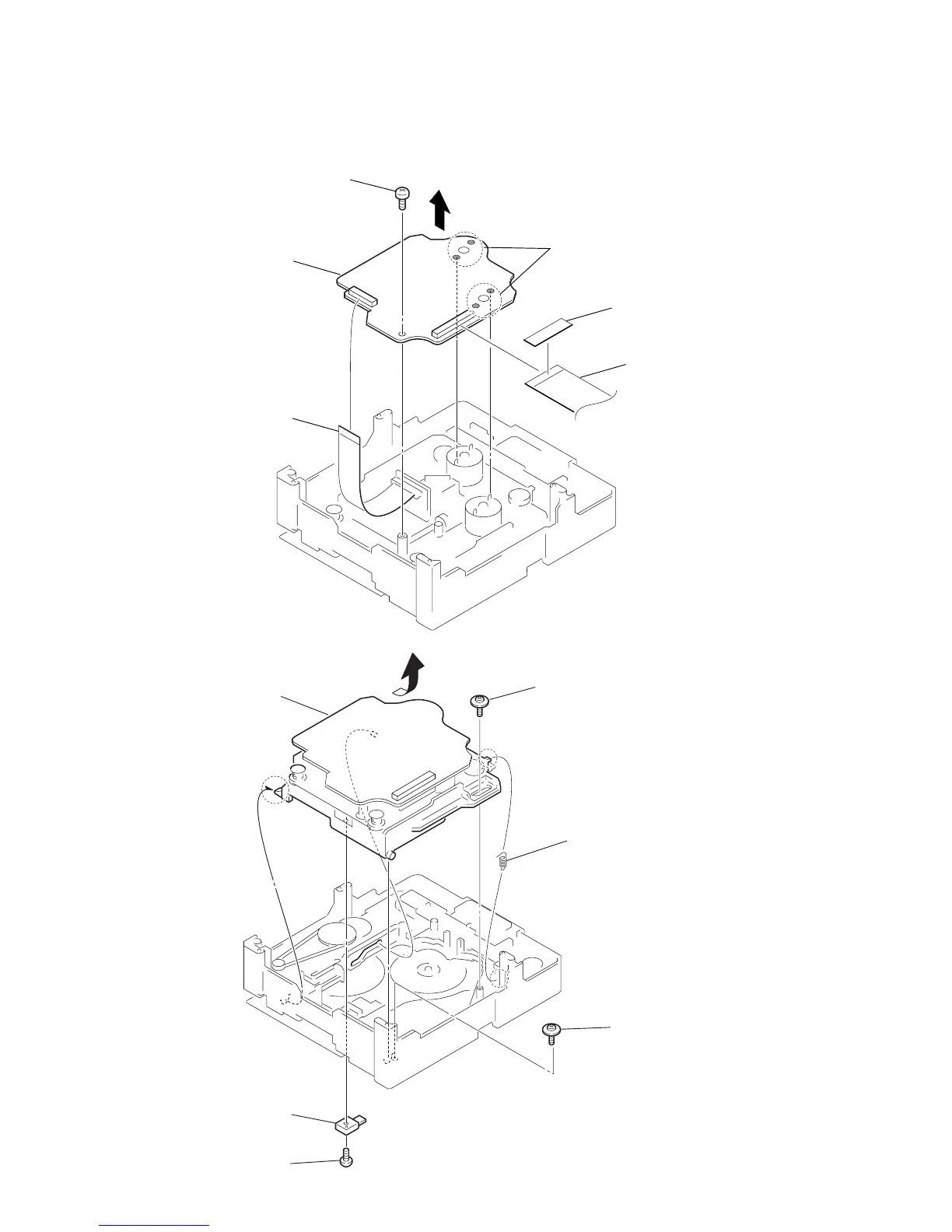

3-11. BD81A BOARD
3-12. BU SECTION
2 Remove soldering
from the four points.
1 screw
(+BVTP 2.6
× 8)
6 BD81A board
4 sheet
3 wire (flat type)
(16 core) (CN102)
5 wire (flat type)
(16 core)
4 floating screw
(+PTPWHM 2.6)
5 floating screw
(+PTPWHM 2.6
)
3 213 holder down spring
6 BU section
1 screw
(+BVTP 2.6
× 8)
2 lever (CL UP2)
