Sony HCD-GN1300D - FRONT Board, SURROUND Board; Back Panel Section, DC Fan

HCD-GN1300D
11

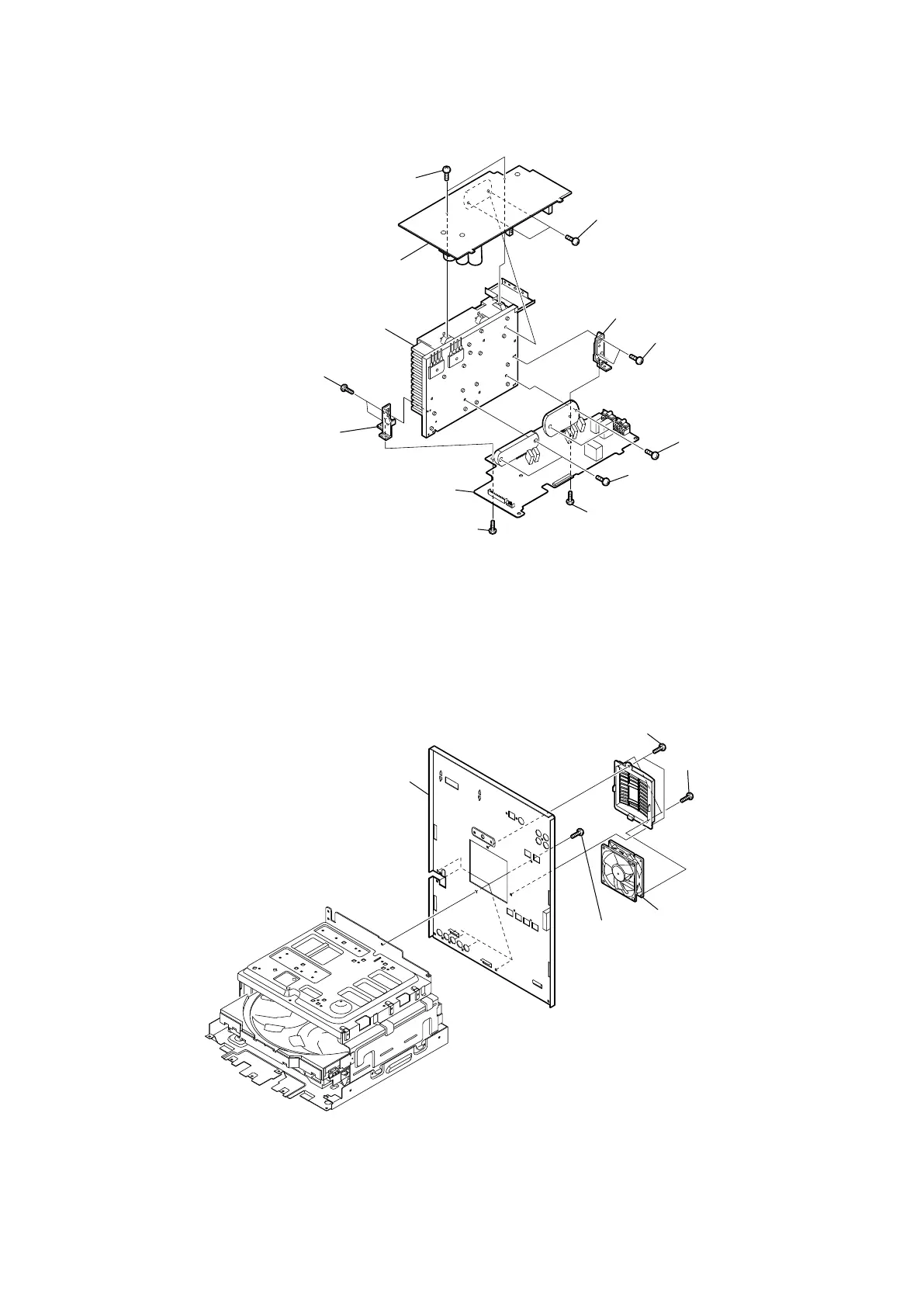

2-11. FRONT BOARD, SURROUND BOARD
2-12. BACK PANEL, DC FAN
3
FRONT board
8
heat sink assy
qd
SURROUND board
2
two screws
(transistor)
5
two screws
(+BVTP 3 x 8)
9
one screw
(+BVTP 3 x 8)
6
two screws
(transistor)
7
two screws
(transistor)
qa
one screw
(+BVTP 3 x 8)
4
two screws
(+BVTP 3 x 8)
qs
bracket (PWB)
q;
bracket (PWB)
1
two screw
(+BVTP 3 x 8)
3
DC fan
5
back panel
2
two screws
(+BVTP 3 x 10)
1
two screws
(+BVTP 3 x 8)
4
seven screws
(+BVTP 3 x 8)
