Sony HCD-GN1300D - Exploded Views - Back Panel Section

79
HCD-GN1300D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

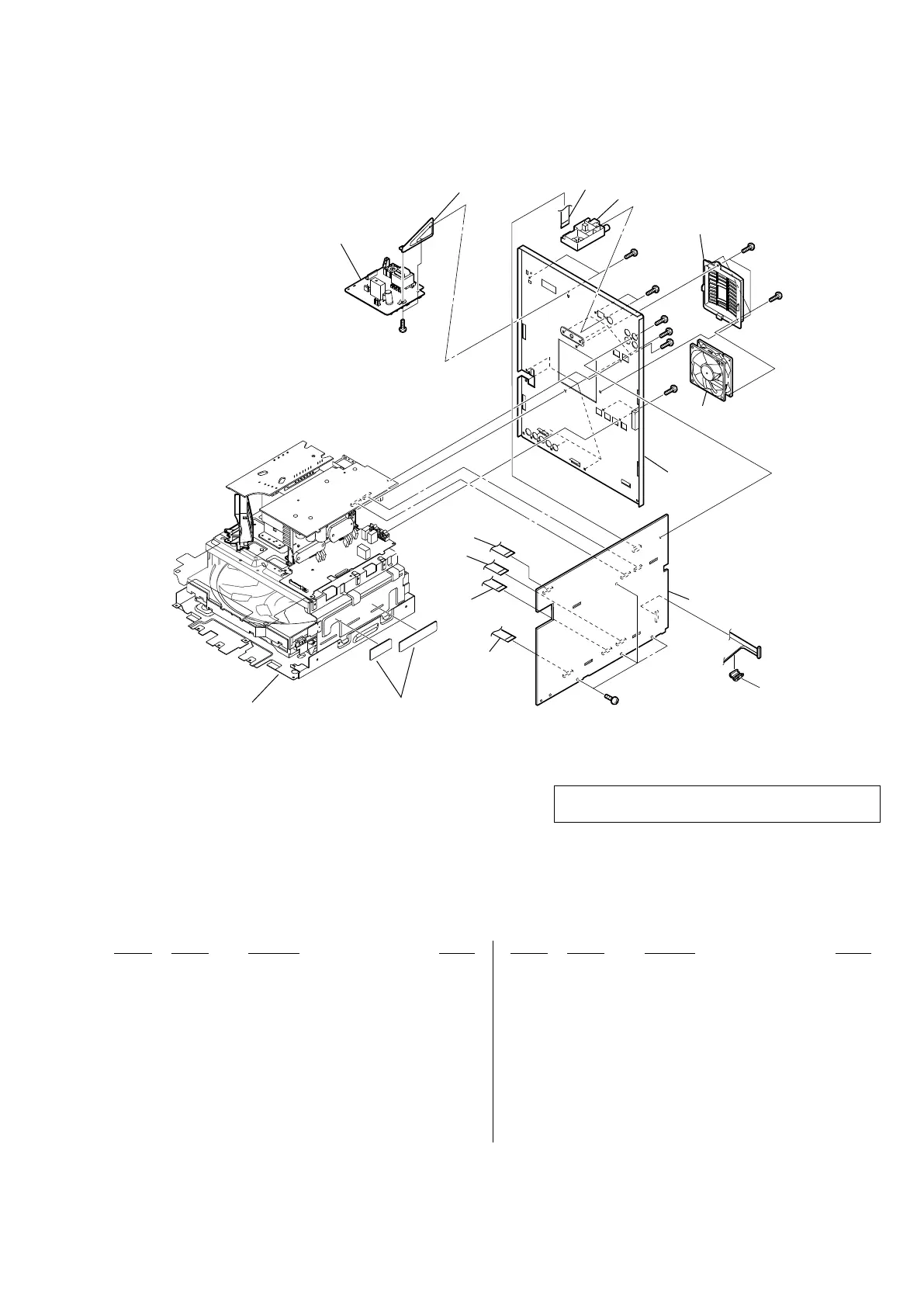

7-2. BACK PANEL SECTION
#1
#2
#1
#1
#1
#1
#1
#3
#1
#3
TU901
M891
not supplied
(SUBTRANS Board)
not supplied
not supplied
not supplied
chassis section
52
58
51
57
56
54
55
53
51 A-1706-929-A MAIN BOARD, COMPLETE (SP, MY, PH)
51 A-1729-698-A MAIN BOARD, COMPLETE (E4)
51 A-1729-700-A MAIN BOARD, COMPLETE (EA)
51 A-1729-733-A MAIN BOARD, COMPLETE (E15)
52 1-828-938-51 WIRE (FLAT TYPE)(5 CORE)
53 1-827-995-11 WIRE (FLAT TYPE)(7 CORE)
54 1-828-975-11 WIRE (FLAT TYPE)(13 CORE)
55 1-828-373-11 WIRE (FLAT TYPE)(21 CORE)
56 1-828-344-11 WIRE (FLAT TYPE)(15 CORE)
57 1-543-793-11 FILTER, CLAMP (FERRITE CORE) (EXCEPT EA)
Ver. 1.3
58 4-137-771-01 COVER (FAN)
0
M891 1-787-344-11 FAN, DC
TU901 1-693-778-22 TUNER(FM/AM)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
