Sony HCD-GN1300D - Exploded Views - DVD Mechanism Section-2

83
HCD-GN1300D

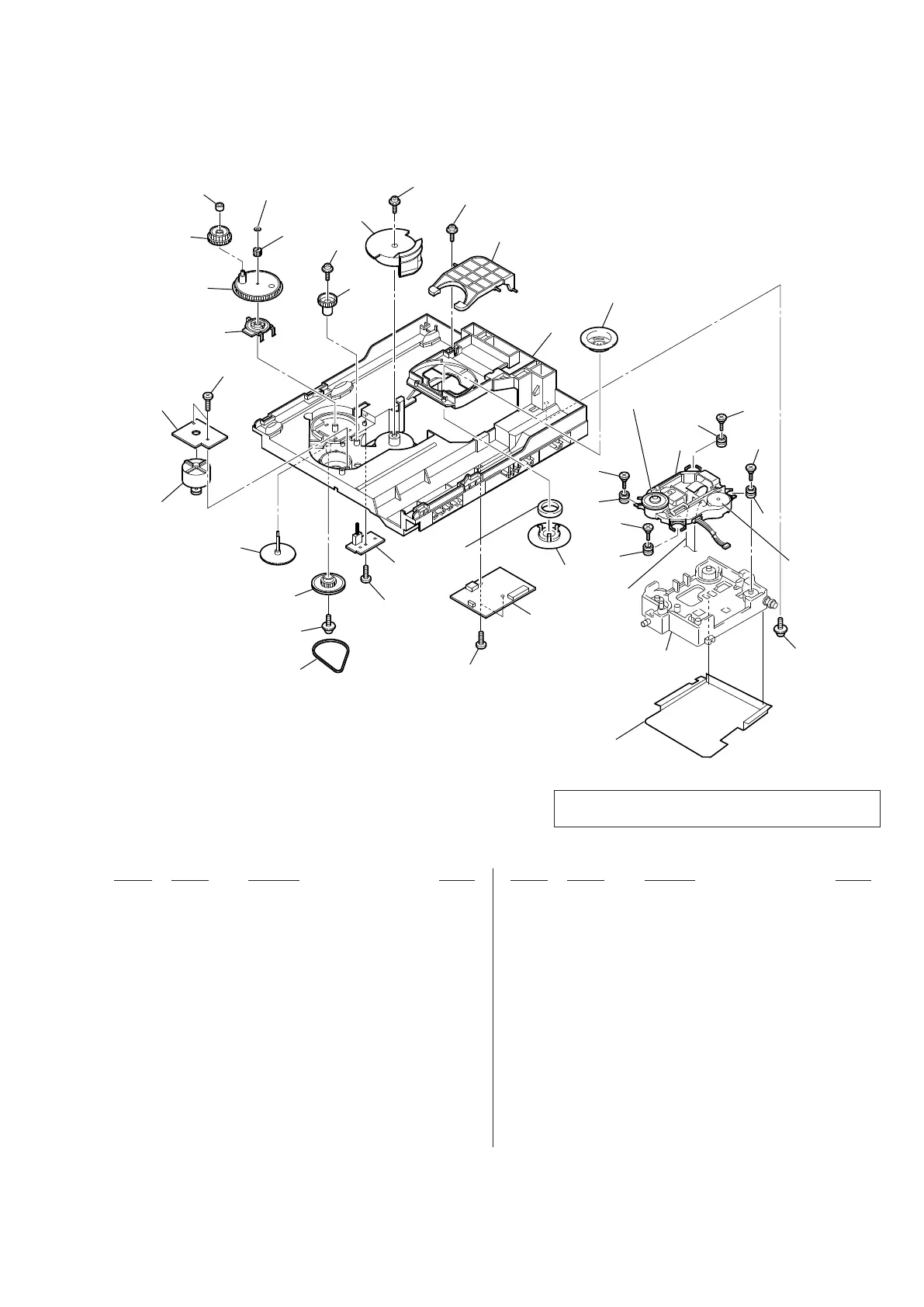

7-6. DVD MECHANISM SECTION-2
(CDM74HFV-DVBU101)
301
323
301
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
317
320
316
304
304
304
M751
S711
318
318
318
318
319
319
319
319
304
321
322
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 4-218-253-52 SCREW (M2.6), +BTTP
302 1-687-669-12 SW BOARD
303 4-244-034-11 BELT (LOADING)
304 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
305 4-225-844-01 GEAR (LOADING A)
306 4-224-613-11 GEAR (SHAFT)
307 1-687-133-12 MOTOR (LD) BOARD
308 4-244-108-01 GEAR, SWING
309 4-224-609-01 GEAR, (LOADING C)
310 4-224-608-01 COLLAR, SWING
311 3-016-533-11 WASHER(FR), STOPPER
312 4-224-611-01 GEAR (LOADING B)
313 4-224-606-01 GEAR (RV)
314 4-243-818-01 GEAR (U/D)
315 2-541-918-01 LEVER (LIFTER (H))
316 2-345-982-01 PULLEY A (310), CHUCKING
317 2-345-983-01 PULLEY B (310), CHUCKING
318 2-634-618-01 INSULATOR
319 3-087-599-01 INSULATOR SCREW
320 3-273-015-02 CHASSIS
0
321 8-820-322-04 DEVICE, OPTICAL KHM-313CAB/C2NP
(including sled motor, spindle motor)
322 1-828-252-11 WIRE (FLAT TYPE) (24 CORE)
323 A-1103-756-B DRIVER BOARD, COMPLETE
M751 A-1143-804-A MOTOR ASSY, LOADING
S711 1-477-680-12 ENCODER, ROTARY
Ver. 1.3
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
