Sony HCD-GN1300D - Driver Board, SW Board, and Optical Pick-up Disassembly

HCD-GN1300D
13

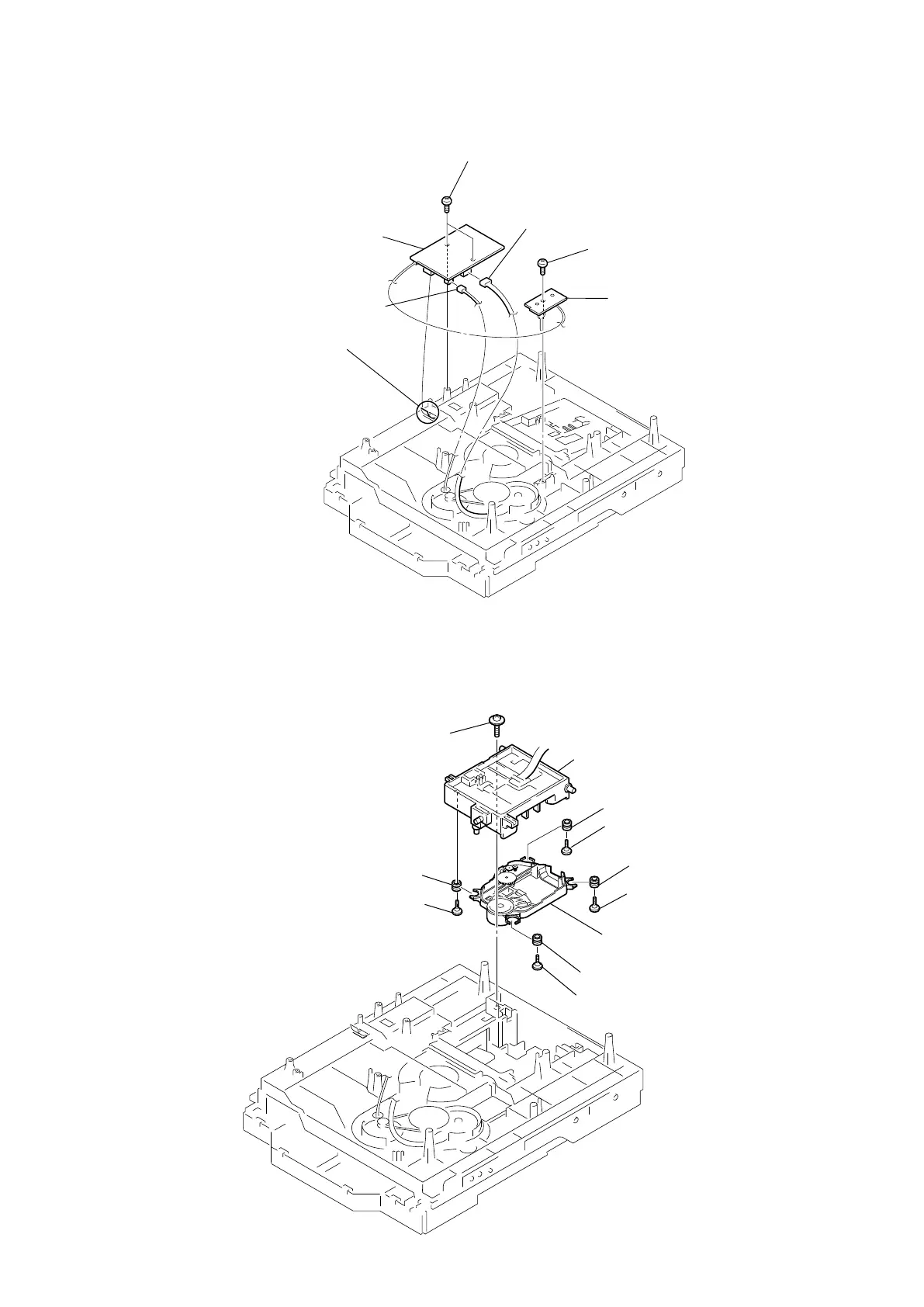

2-15. DRIVER BOARD, SW BOARD
2 CN703 (4P)
3 CN704 (2P)
5
DRIVER board
7 SW board
1 two screws
(BTTP (M2.6))
6
one screw
(BTTP (M2.6))
4 wire (flat type) (5 core)
(CN702)
2-16. OPTICAL PICK-UP
3 insulator screw
qa optical pick-up
(KHM-313CAB/C2NP)
4 insulator screw
5 insulator screw
6 insulator screw
8 insulator
9 insulator
0 insulator
7 insulator
1 floating screw
(+PTPWH M2.6)
2 holder (3I0) assy
