Sony HCD-GN1300D - Exploded Views - Front Panel Section

80
HCD-GN1300D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

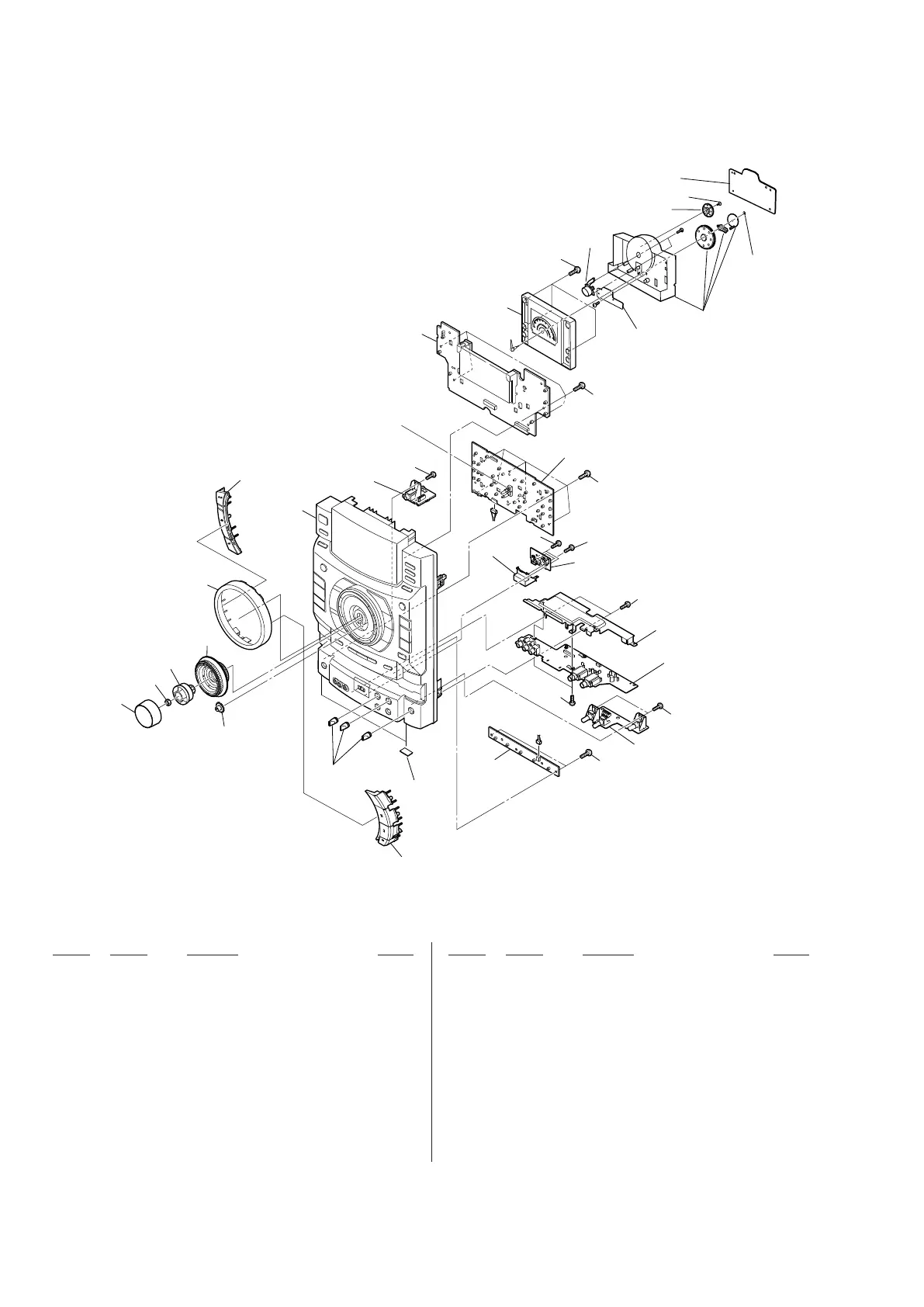

7-3. FRONT PANEL SECTION
102
108
109
102
102
106
S935
102
102
102
102
102
107
102
102
supplied with S935
105
104
103
not supplied
101
111
not supplied
(USB DVD board)
not supplied
a
not supplied
(HP board)
not supplied
(DISPLAY board)
not supplied
not supplied
not supplied
not supplied
(MOTOR DRIVE board)
not supplied
(SW(meter)board)
not supplied
(CD SW board)
not supplied
(DVD MIC VR board)
110
not supplied
(MIC DVD board)
not supplied
a
#4
#4
not supplied
not supplied
not supplied
101 2-895-507-01 KNOB (MIC)
102 3-087-053-01 +BVTP2.6 (3CR)
103 4-126-651-01 KNOB (VOLUME)
104 4-126-656-02 HOLDER (JOG)
105 X-2345-785-1 KNOB JOG-P ASSY
106 A-1706-917-A STR BOARD, COMPLETE
107 A-1718-281-B METER DISPLAY ASSY (GTH)
108 A-1486-925-A MOTOR ASSY
109 4-245-572-01 BUSHING (GEAR)
110 X-2345-784-1 PANEL, FRONT ASSY(DVD)
111 4-225-252-21 CUSHION (FOOT)
S935 1-487-171-11 ROTARY ENCODER
#4 7-685-853-04 SCREW +BVTT 2X6 (S)
Ver. 1.3
