Sony HCD-GN1300D - Exploded Views - DVD Mechanism Section-1

82
HCD-GN1300D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

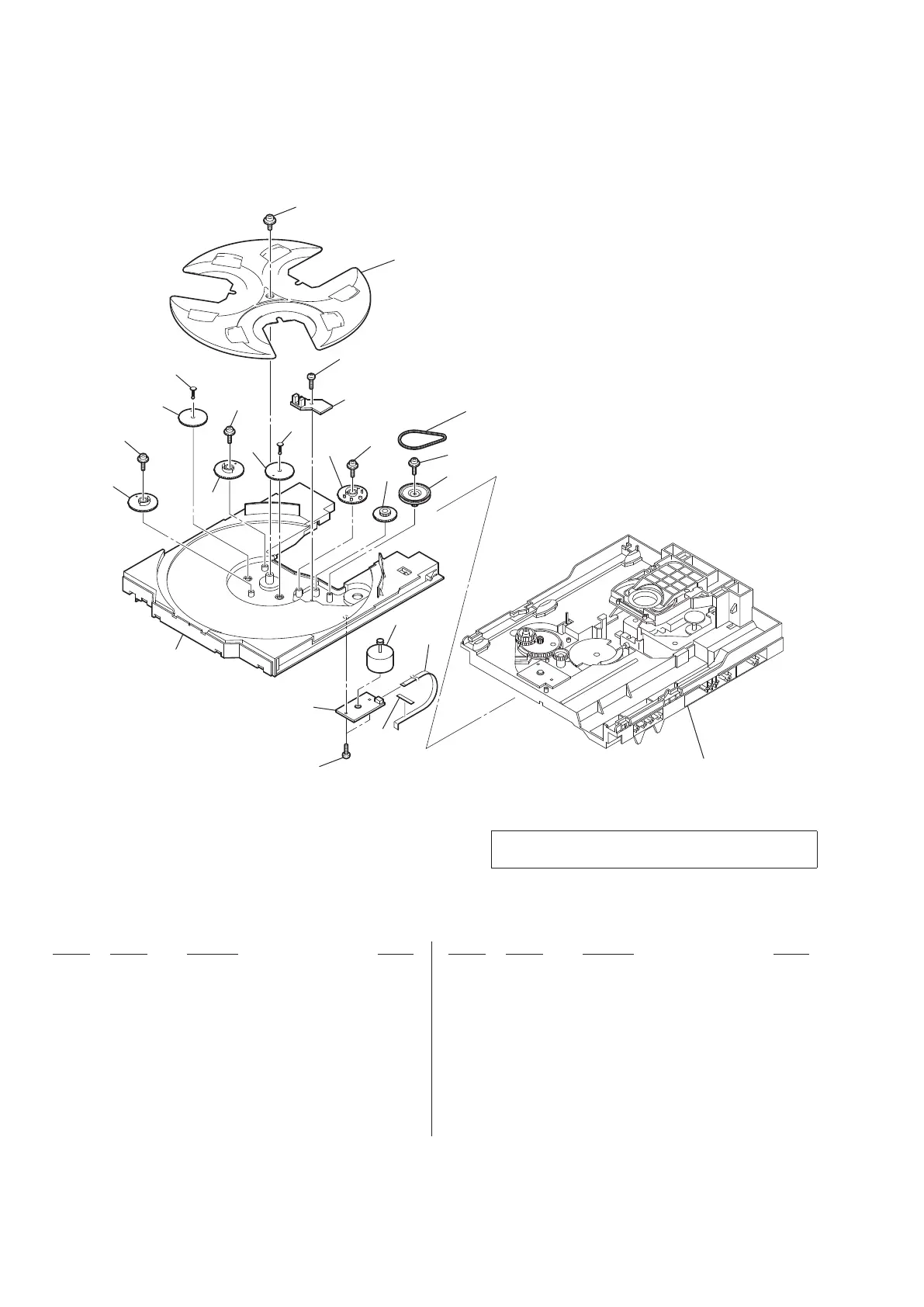

7-5. DVD MECHANISM SECTION-1
(CDM74HFV-DVBU101)
253
255
254
256
256
257
257
258
258
251
256
261
262
263
264
259
260
263
DVD mechanism section-2
254
251
265
M741
266
252
251 4-218-253-62 SCREW (M2.6), +BTTP
252 1-687-132-12 SENSOR BOARD
253 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
254 4-243-815-11 TABLE (LOADING)
255 4-245-571-02 GEAR (STOPPER)
256 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
257 4-245-570-01 GEAR (JOINT)
258 4-245-572-01 BUSHING (GEAR)
259 4-243-820-01 GEAR (TABLE)
260 4-243-819-01 GEAR (GENEVA)
261 4-243-816-21 TRAY
262 4-243-823-11 BELT (TABLE)
263 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
264 4-243-821-01 PULLEY (TABLE)
265 3-231-598-01 SHEET (BA)
266 1-687-134-12 MOTOR (TB) BOARD
M741 A-1108-965-A MOTOR ASSY, TABLE
Ver. 1.3
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
