HCD-GNV99D/GNV111D

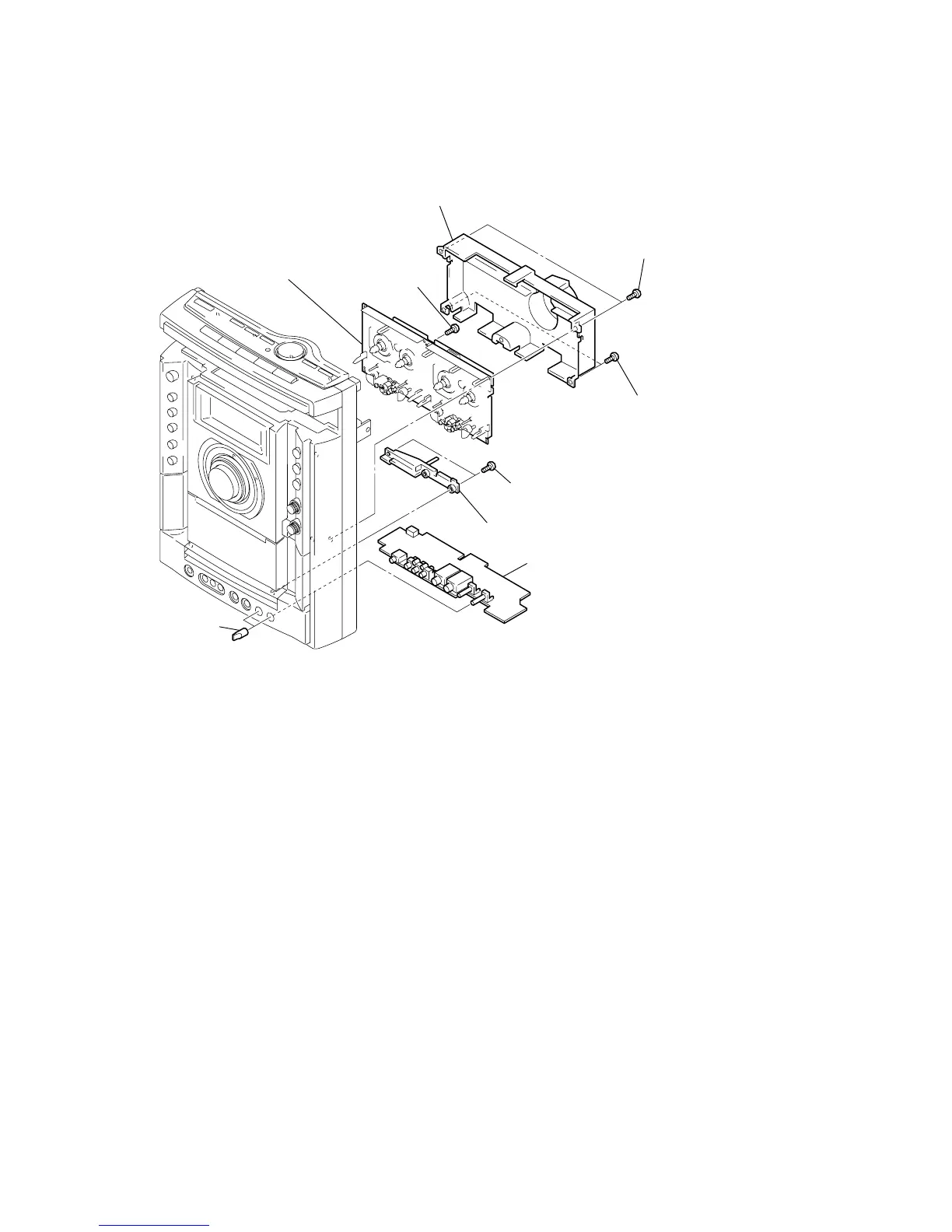

3-6. TAPE MECHANISM DECK, MIC BOARD
4
screw
(+BVTP2.6 (3CR))
5
tape mechanism deck
6
two screws
(+BVTP2.6 (3CR))
7
bracket (MIC)
9
MIC board
8
knob (MIC)
1
two screws
(+BVTP2.6 (3CR)
)
2
two screws
(+BVTP2.6 (3CR))
3
cover (TCM)
