Sony HCD-GNV99D - Chassis Section

75
HCD-GNV99D/GNV111D

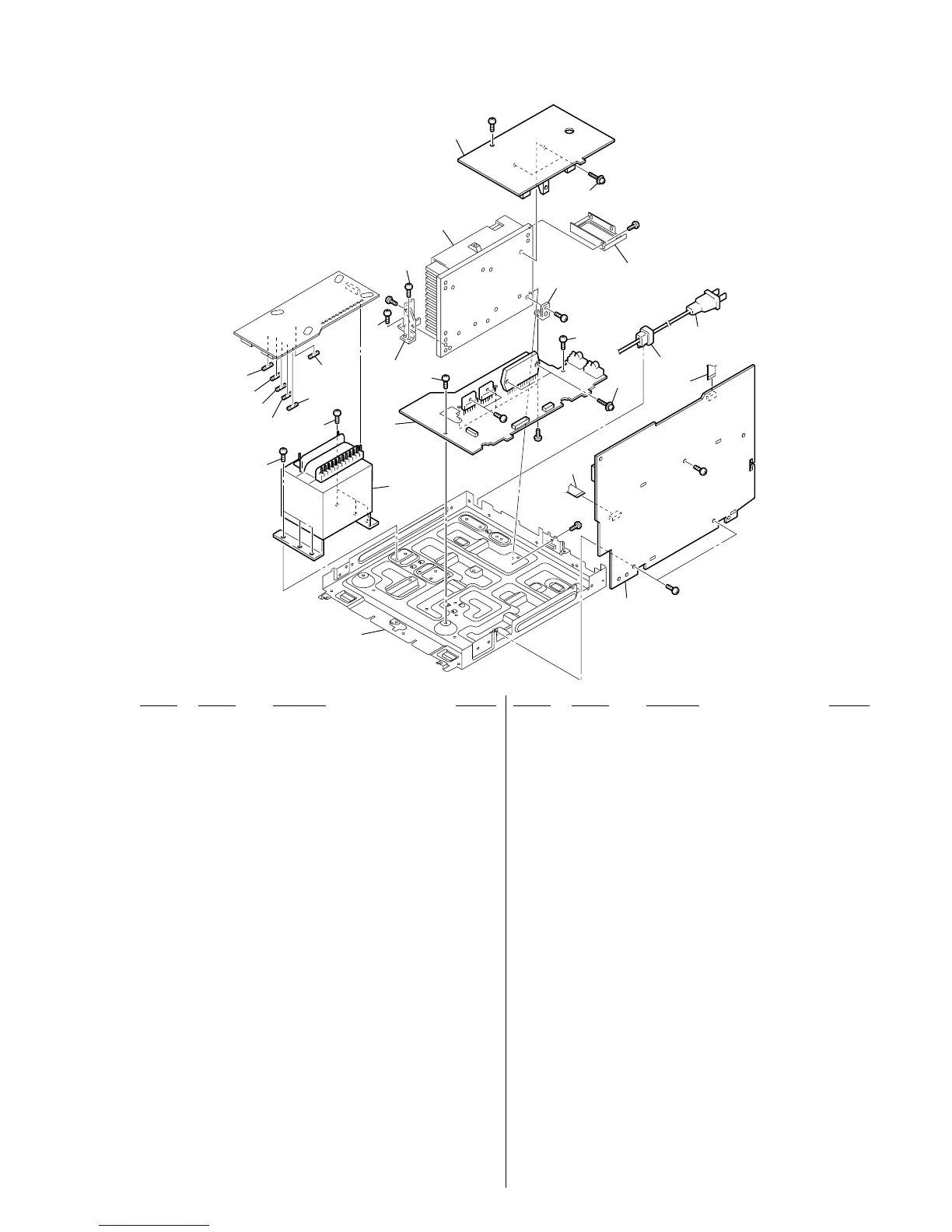

8-3. CHASSIS SECTION
not supplied
not supplied
not supplied
not supplied
#1
#1
117
117
117
117
#1
#1
#1
#1
#1
F1241
T1200
F1251
F1261
F1271
F1281
101
102
101
104
105
105
106
107
108
109
110
#1
F1291
#1
not supplied
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
101 4-900-386-01 SCREW
102 A-1089-532-A PA BOARD, COMPLETE (GNV99D: EXCEPT TH)
102 A-1089-591-A PA BOARD, COMPLETE (E2, MX)
102 A-1113-624-A PA BOARD, COMPLETE (GNV111D: TH)
102 A-1114-756-A PA BOARD, COMPLETE (GNV111D: EXCEPT TH)
102 A-1114-765-A PA BOARD, COMPLETE (GNV99D: TH)
104 A-1099-771-A DVD SURR BOARD, COMPLETE (E2, MX)
104 A-1099-850-A DVD SURR BOARD, COMPLETE
(GNV99D: EXCEPT TH)
104 A-1114-979-A DVD SURR BOARD, COMPLETE
(GNV111D: EXCEPT E2, MX, TH)
104 A-1124-096-A DVD SURR BOARD, COMPLETE (GNV111D: TH)
104 A-1124-108-A DVD SURR BOARD, COMPLETE (GNV99D: TH)
105 3-905-609-31 SCREW (TRANSISTOR)
106 1-828-956-11 WIRE (FLAT TYPE) (9 CORE)
0 107 1-777-071-53 CORD, POWER (E12, E13, EA, MY, SP, PH)
0 107 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH)
0 107 1-827-295-22 CORD, POWER (AUS)
0 107 1-829-627-31 POWER-SUPPLY CORD (E3, E15, E2, MX)
* 108 3-703-244-00 BUSHING (2104), CORD
(EXCEPT E3, E15, E2, MX)
108 3-703-571-11 BUSHING (S) (4516), CORD (E3, E15, E2, MX)
109 1-828-972-11 WIRE (FLAT TYPE) (13 CORE) (130mm)
110 A-1099-580-A MAIN BOARD, COMPLETE (E2)
110 A-1099-615-A MAIN BOARD, COMPLETE (GNV99D: E3)
110 A-1115-267-A MAIN BOARD, COMPLETE (GNV99D: EA)
110 A-1115-283-A MAIN BOARD, COMPLETE (GNV99D: E15)
110 A-1115-286-A MAIN BOARD, COMPLETE (GNV99D: SP, PH)
110 A-1115-291-A MAIN BOARD, COMPLETE (GNV99D: TH)
110 A-1115-312-A MAIN BOARD, COMPLETE (GNV111D: MY, SP)
110 A-1115-322-A MAIN BOARD, COMPLETE (GNV111D: E15)
110 A-1115-326-A MAIN BOARD, COMPLETE (GNV111D: EA)
110 A-1115-330-A MAIN BOARD, COMPLETE (GNV111D: PH)
110 A-1115-333-A MAIN BOARD, COMPLETE (AUS)
110 A-1115-336-A MAIN BOARD, COMPLETE (MX)
110 A-1115-339-A MAIN BOARD, COMPLETE (GNV111D: TH)
110 A-1117-691-A MAIN BOARD, COMPLETE (GNV111D: E3)
110 A-1119-698-A MAIN BOARD, COMPLETE (GNV111D: E12)
110 A-1119-735-A MAIN BOARD, COMPLETE (E13)
110 A-1119-775-A MAIN BOARD, COMPLETE (GNV99D: E12)
117 3-077-331-21 +BV3 (3-CR)
0F1241 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0F1251 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0F1261 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0F1271 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0F1281 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V)
0F1291 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V)
0T1200 1-443-585-11 POWER TRANSFORMER
(GNV111D: EXCEPT EA, MX)
0T1200 1-443-586-11 POWER TRANSFORMER (GNV99D: EXCEPT EA)
0T1200 1-443-753-11 POWER TRANSFORMER (MX)
0T1200 1-443-754-11 POWER TRANSFORMER (GNV111D: EA)
0T1200 1-443-755-11 POWER TRANSFORMER (GNV99D: EA)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ver. 1.1
