HCD-GNV99D/GNV111D

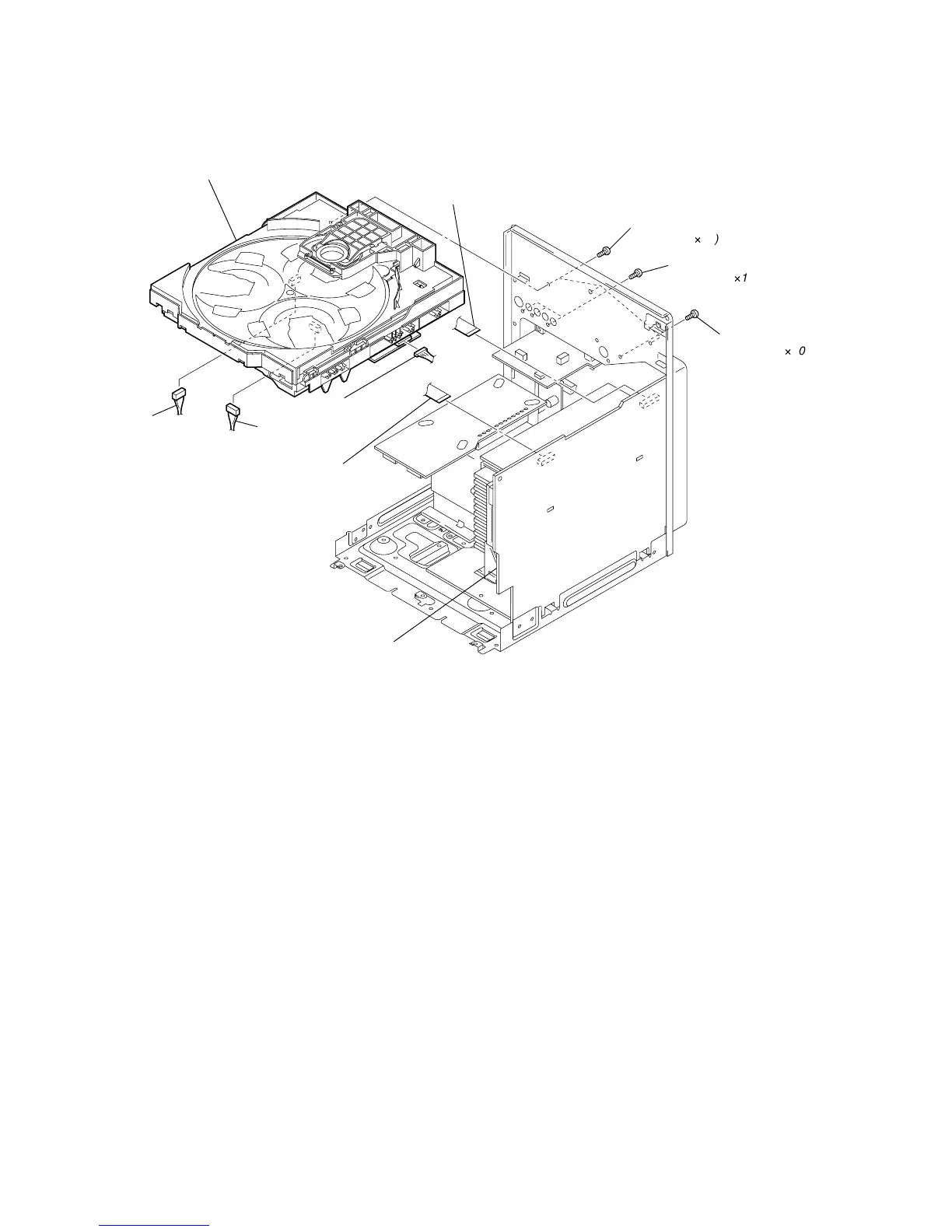

3-8. DVD MECHANISM DECK
1
three screws
(+BVTP 3
´
10)
2
screw
(+BVTP 3
´
10
)
3
three screws
(+BVTP 3
´
10)
4
DVD mechanism deck
6
flat wire
19p(CN521)
5
connector
(CN701)
7
flat wire
13p(CN520)
8
connector
(CN401)
9
connector
(CN800)
MAIN board
