Sony HCD-GNV99D - Back Panel; Primary Board

16
HCD-GNV99D/GNV111D
1 connector
(CN1200)
2 connector
(CN1204)
3 three screws
(+BVTP 3
´ 10)
4 screw
(+BVTP 3
´ 10
)
6 screw
(+BVTP 3
´ 10)
7 screw
(+BVTP 3
´ 10)
9 connector
(CN580)
8 back panel
5 two screws
(+BVTP 3
´ 10)
1 connector
2 connector
3 screw
(+BVTP 3 ´ 8)
4 PRIMARY board

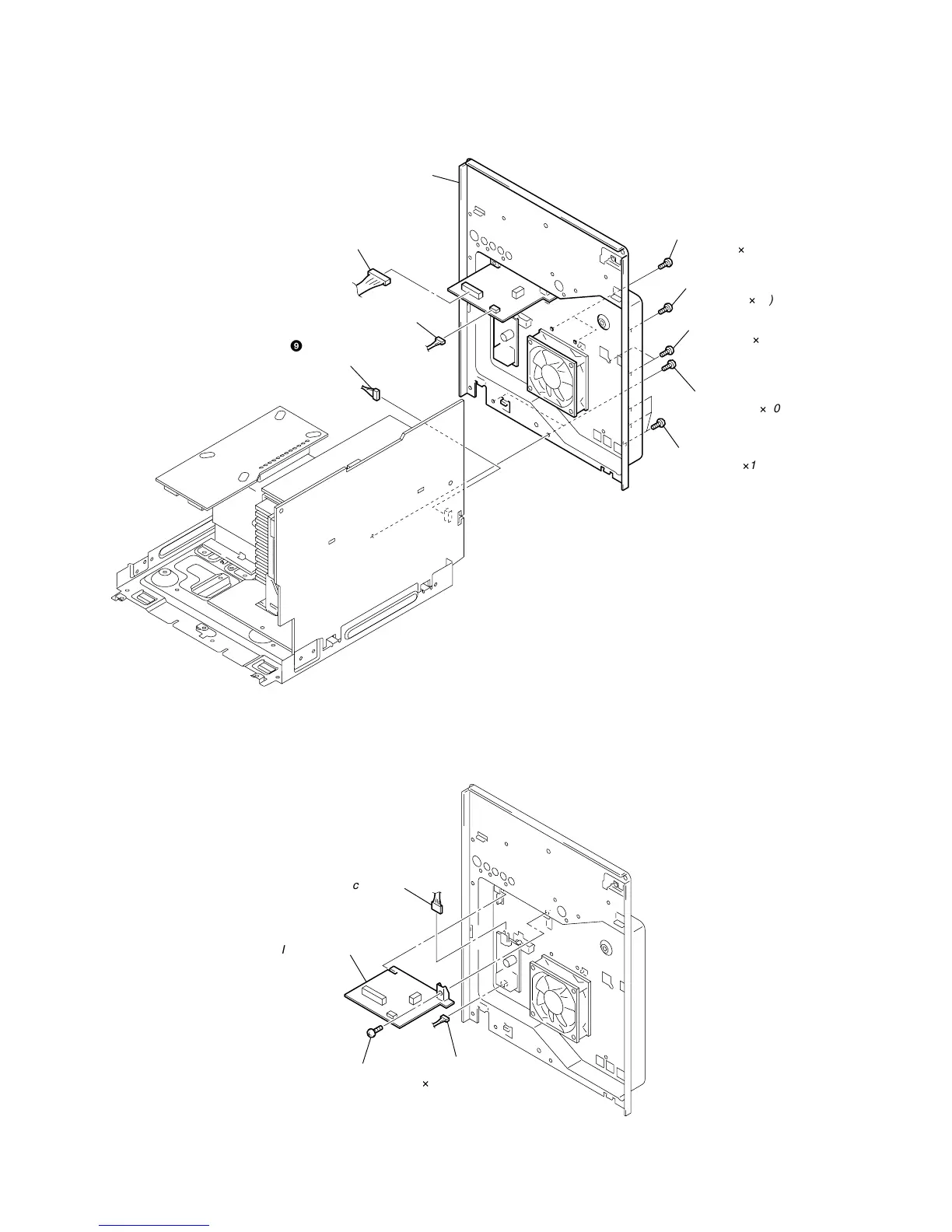

3-10. BACK PANEL
3-11. PRIMARY BOARD
