73
HCD-GNV99D/GNV111D
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

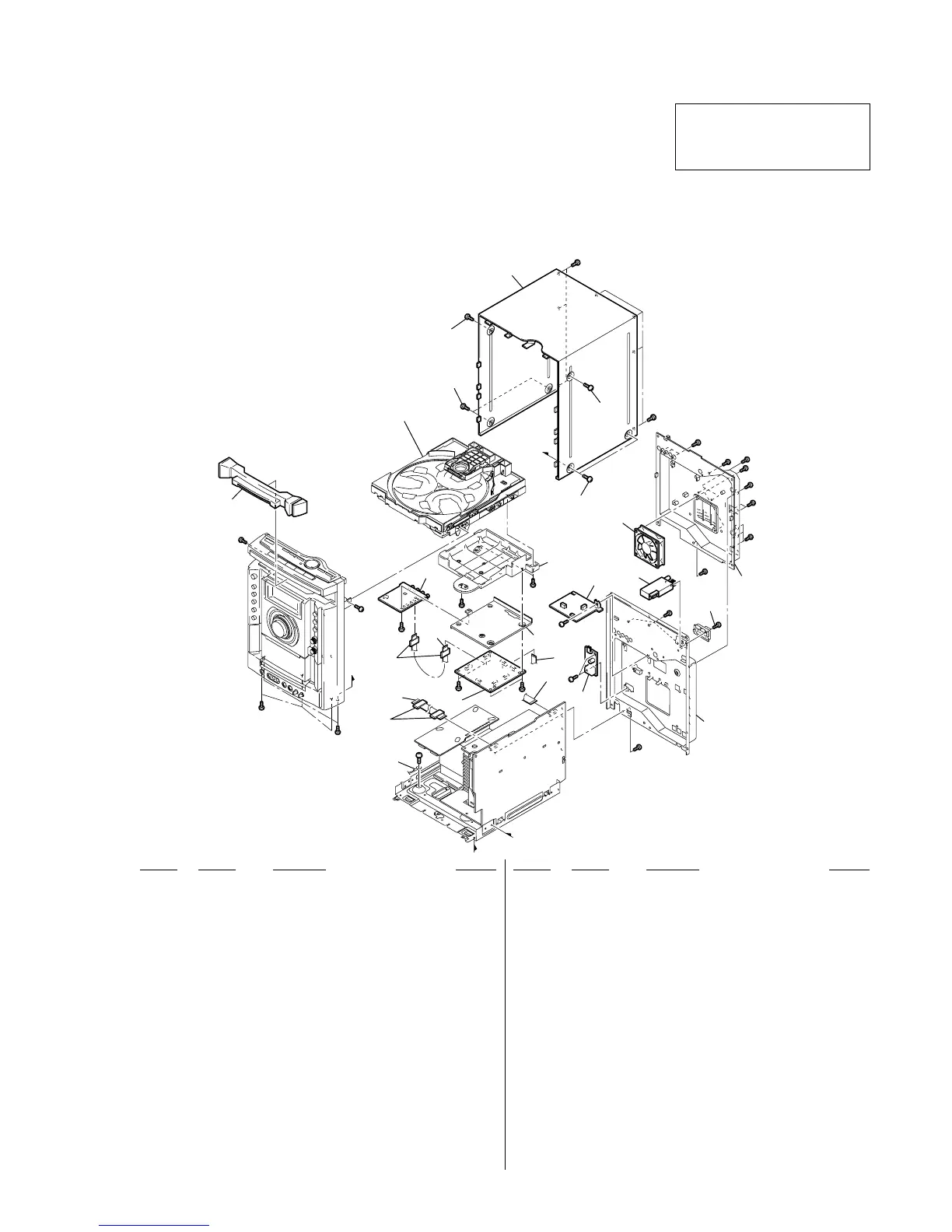

8-1. CASE, REAR PANEL SECTION
NOTE:
• The illustration depicts HCD-GNV111D.
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
AUS: Australian model
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
E12 : 220V-240V AC Area in E model
E13 : 220V-230V AC Area in E model
E15 : Iran model
EA : Saudi Arabia model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
1 X-2050-304-1 LOADING PANEL ASSY (GNV99D)
1 X-2050-305-1 LOADING PANEL ASSY (E2, MX)
1 X-2055-737-1 LOADING PANEL ASSY
(GNV111D: EXCEPT E2, MX)
2 2-342-137-11 CASE (GNV99D)
2 2-342-137-31 CASE (GNV111D)
3 3-363-099-02 SCREW (CASE 3 TP2)
4 3-363-099-32 SCREW (CASE 3 TP2)
5 1-693-671-11 TUNER (TM-10E)
6 A-1089-510-A PRIMARY BOARD, COMPLETE
(EXCEPT TH, MX, AUS)
6 A-1089-525-A PRIMARY BOARD, COMPLETE (MX, AUS)
6 A-1114-764-A PRIMARY BOARD, COMPLETE (TH)
0 7 1-468-737-21 POWER, SWITCHING
8 1-828-622-11 WIRE (FLAT TYPE) (19 CORE)
9 1-828-332-11 WIRE (FLAT TYPE) (13 CORE) (250mm)
10 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm)
(GNV99D: EXCEPT E12, SP/GNV111D)
10 1-828-328-11 WIRE (FLAT TYPE) (13 CORE) (100mm)
(GNV99D: E12, SP)
11 A-1099-272-A DMB10 BOARD, COMPLETE (E3, E12, E13, E15)
11 A-1099-344-A DMB10 BOARD, COMPLETE (E2, MX)
11 A-1115-290-A DMB10 BOARD, COMPLETE (TH)
11 A-1115-347-A DMB10 BOARD, COMPLETE (MY, SP, PH)
11 A-1124-409-A DMB10 BOARD, COMPLETE (EA, AUS)
12 A-1101-214-A VIDEO BOARD, COMPLETE (EXCEPT EA, TH, AUS)
12 A-1119-149-A VIDEO BOARD, COMPLETE (TH)
12 A-1124-694-A VIDEO BOARD, COMPLETE (EA, AUS)
13 1-828-252-11 WIRE (FLAT TYPE) (24 CORE)
14 3-077-331-21 +BV3 (3-CR)
15 1-500-657-11 CORE, FERRITE
M891 1-763-372-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
a
a
b
b
1
2
4
3
4
3
M891
5
6
7
8
9
10
11
15
15
12
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
14
#1
#1
#1
not supplied
not supplied
not supplied
not
supplie
To Next Page
