Sony HCD-GNV99D - DVD Mechanism Section-2 (CDM74 H-DVBU101)

77
HCD-GNV99D/GNV111D

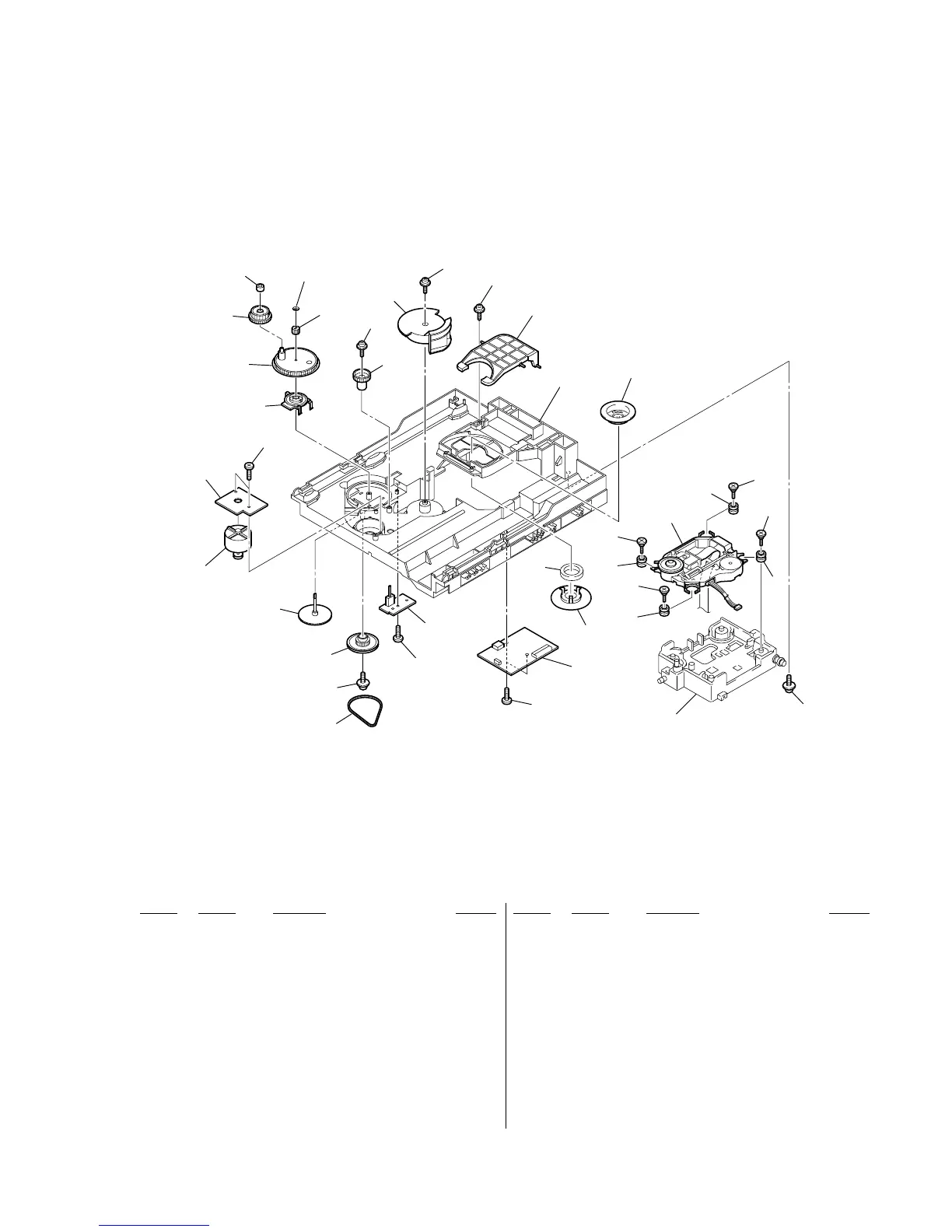

8-5. DVD MECHANISM SECTION-2
(CDM74H-DVBU101)
201
202
202
202
203
204
205
206
207
208
210
211
212
213
214
215
216
217
219
218
205
205
205
M751
RE701
222
222
222
222
225
225
225
225
205
229
not supplied
not supplied
not
supplied
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
201 1-687-135-12 DRIVER BOARD
202 4-218-253-32 SCREW (M2.6), +BTTP
203 1-687-669-12 SW BOARD
204 4-244-034-01 BELT (LOADING)
205 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
206 4-225-844-01 GEAR (LOADING A)
207 4-224-613-01 GEAR (SHAFT)
208 1-687-133-12 MOTOR (LD) BOARD
210 4-244-108-01 GEAR, SWING
211 4-224-609-01 GEAR (LOADING C)
212 4-224-608-01 COLLAR, SWING
213 3-016-533-11 WASHER (FR), STOPPER
214 4-224-611-01 GEAR (LOADING B)
215 4-224-606-01 GEAR (RV)
216 4-243-818-01 GEAR (U/D)
217 2-541-918-01 LIFTER (H), LEVER
218 2-345-982-01 PULLEY A (310), CHUCKING
219 2-345-983-01 PULLEY B (310), CHUCKING
222 2-589-793-01 INSULATOR (EXCEPT TH)
222 3-088-372-01 INSULATOR (TH)
225 3-087-599-01 INSULATOR SCREW
0229 8-820-291-02 OPTICAL PICK-UP KHM-310CAB/C2RP
M751 A-4737-553-A MOTOR ASSY, LOADING
RE701 1-477-680-12 ENCODER, ROTARY
Ver. 1.1
