Sony HCD-GNV99D - DVD Mechanism Section-1 (CDM74 H-DVBU101)

76
HCD-GNV99D/GNV111D

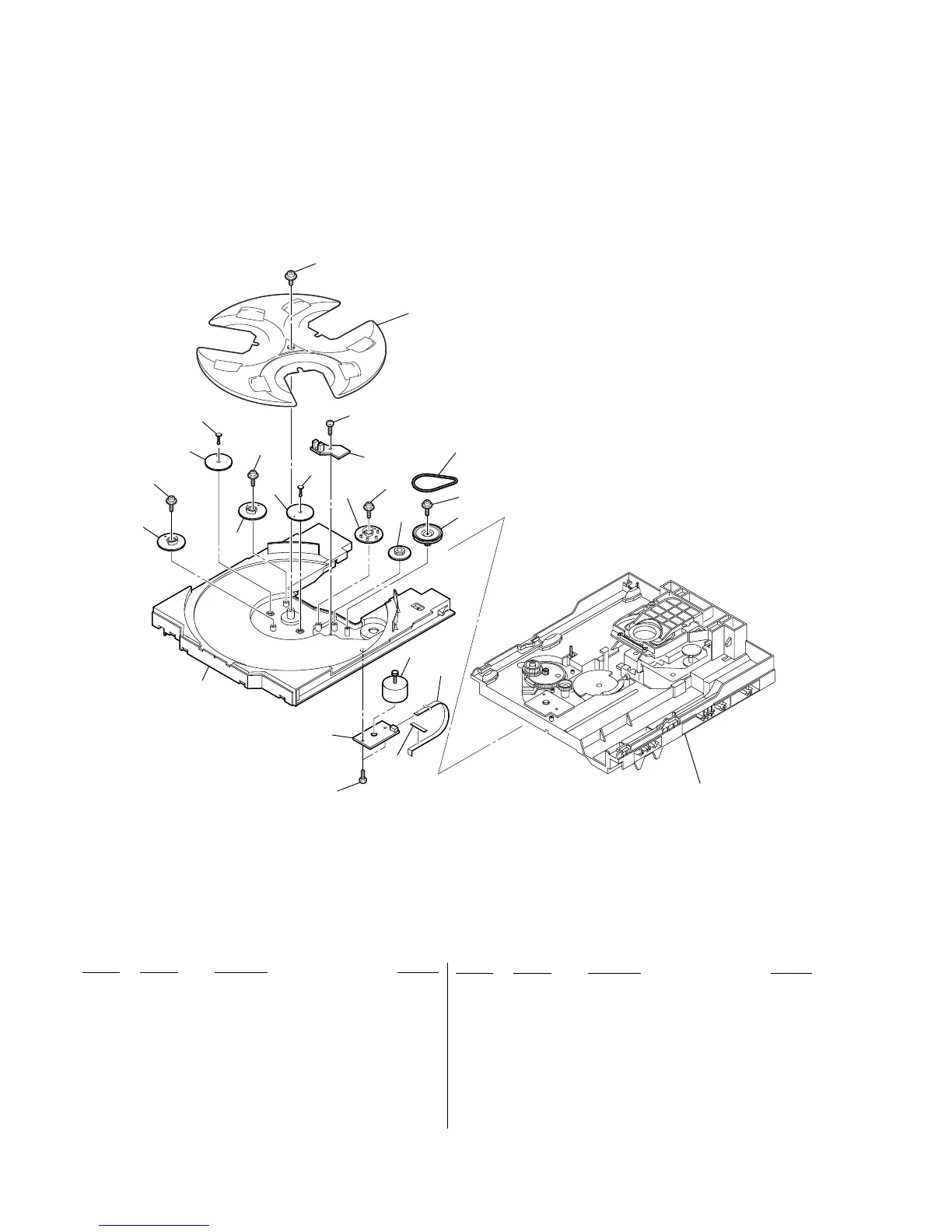

8-4. DVD MECHANISM SECTION-1
(CDM74H-DVBU101)
152
155
155
156
156
157
157
158
158
159
151
156
162
163
164
165
160
161
164
DVD mechanism deck section-
2
154
151
153
166
M741
151 4-218-253-42 SCREW (M2.6), +BTTP
152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
153 1-687-134-12 MOTOR (TB) BOARD
154 4-243-815-01 TABLE (LOADING)
155 4-245-571-02 GEAR (STOPPER)
156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
157 4-245-570-01 GEAR (JOINT)
158 4-245-572-01 BUSHING (GEAR)
159 1-687-132-12 SENSOR BOARD
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
160 4-243-820-01 GEAR (TABLE)
161 4-243-819-01 GEAR (GENEVA)
162 4-243-816-21 TRAY
163 4-243-823-01 BELT (TABLE)
164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
165 4-243-821-01 PULLEY (TABLE)
166 3-231-598-01 SHEET (BA)
M741 A-1108-965-A MOTOR ASSY, TABLE
Ver. 1.1
