Sony HCD-GRX30 - 7-3. Printed Wiring Board - CD Section

HCD-GRX30/GRX30J/R550/RXD5

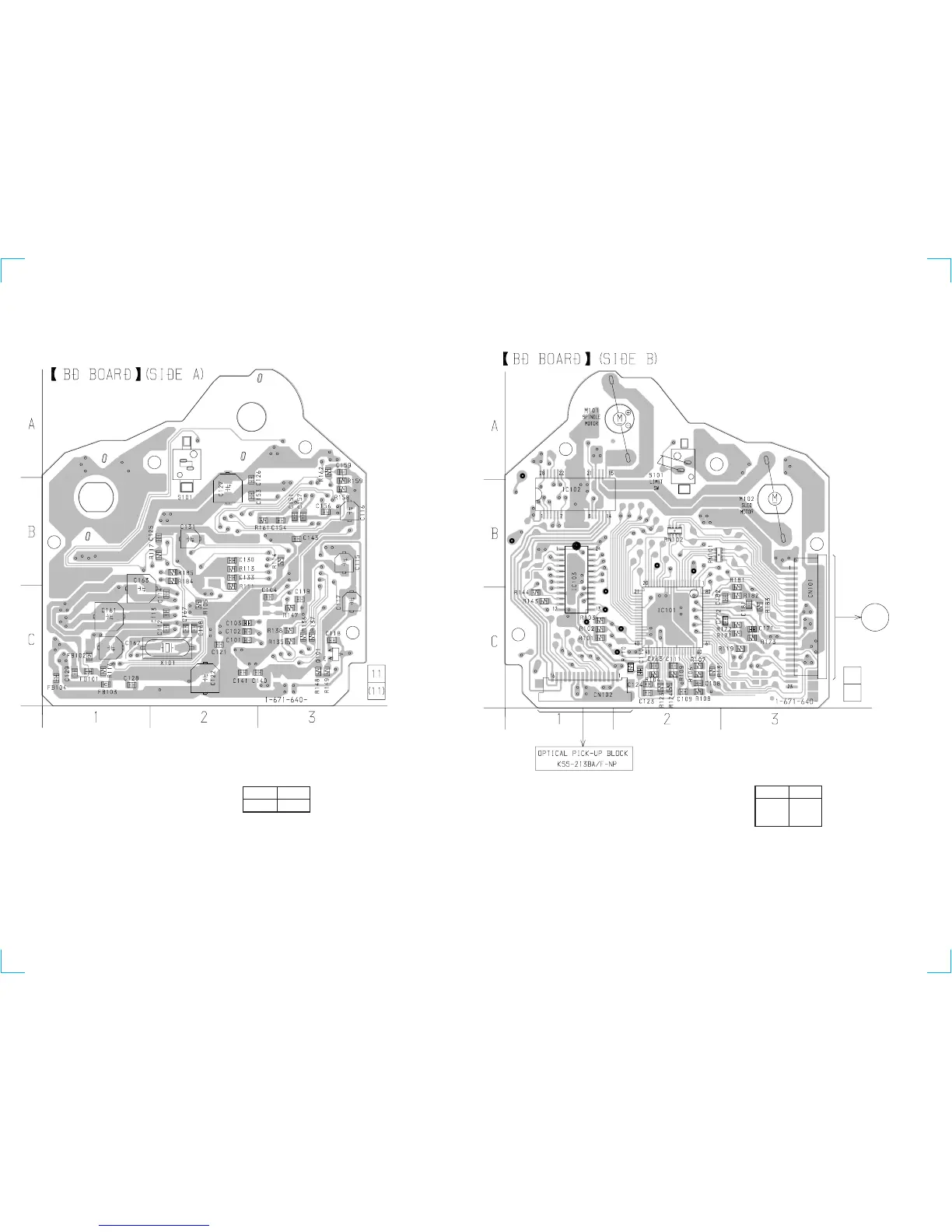

7-3. PRINTED WIRING BOARD — CD SECTION —
— 29 — — 30 —
(Page 44)
CN391
MAIN
BOARD
G
16
16
(GND)
(TE1)
(FE1)
(RF)
(VC)
(FE)
(TE)
(AGCCON)
(PLCK)
21
(21)
Ref. No. Location
IC101 C-2
IC102 B-1
IC103 B-1
• Semiconductor
Location
Ref. No. Location
Q101 C-3
• Semiconductor
Location
• Refer to page 18 for Circuit Boards Location. • Refer to page 27 for Note on Printed Wiring Boards.
