HCD-GRX30/GRX30J/R550/RXD5

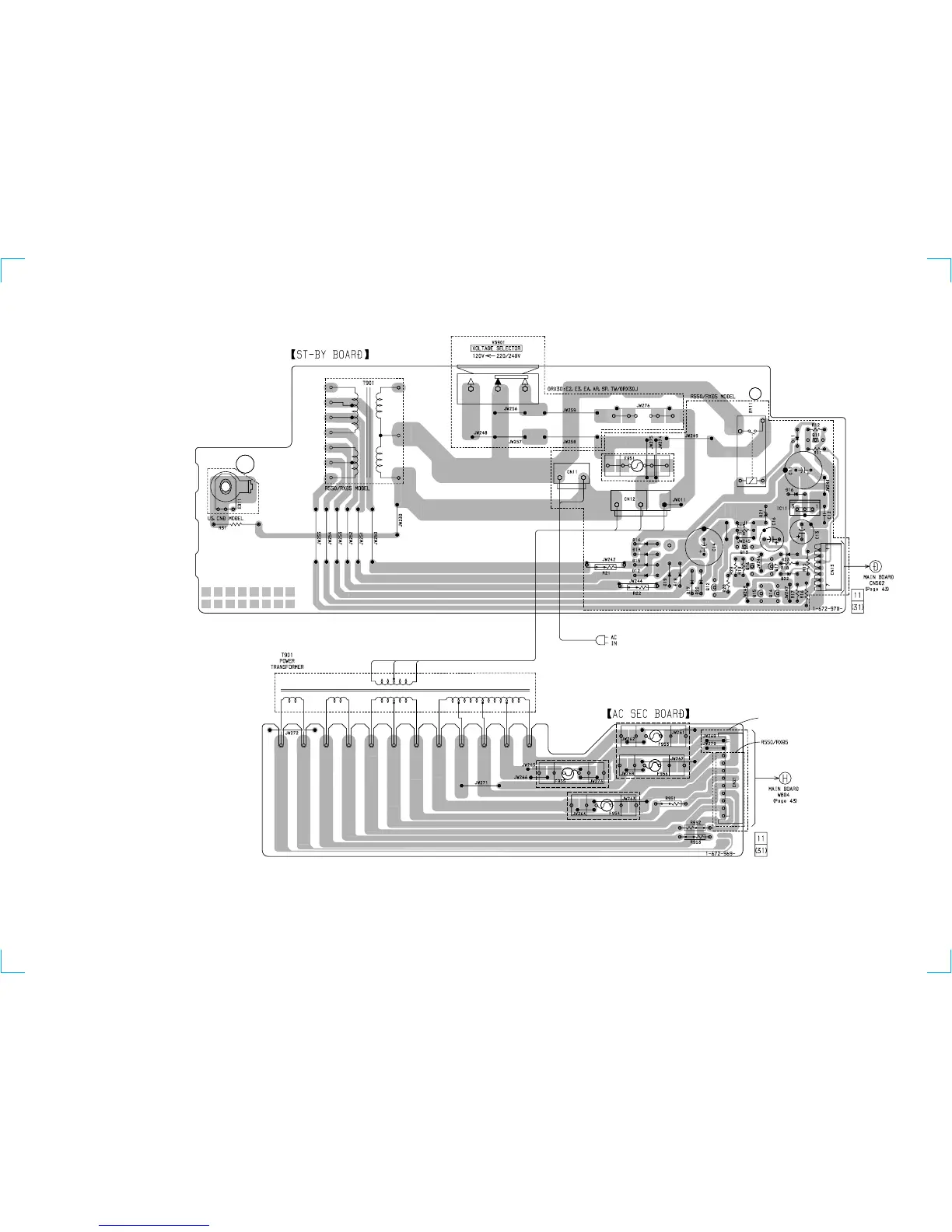

7-18. PRINTED WIRING BOARD — AC SEC STANBY SECTION —
— 57 — — 58 —
GRX30/GRX30J
GRX30/GRX30J
GRX30/GRX30J
EXCEPT GRX30:TH,KR,AUS
GRX30/GRX30J
