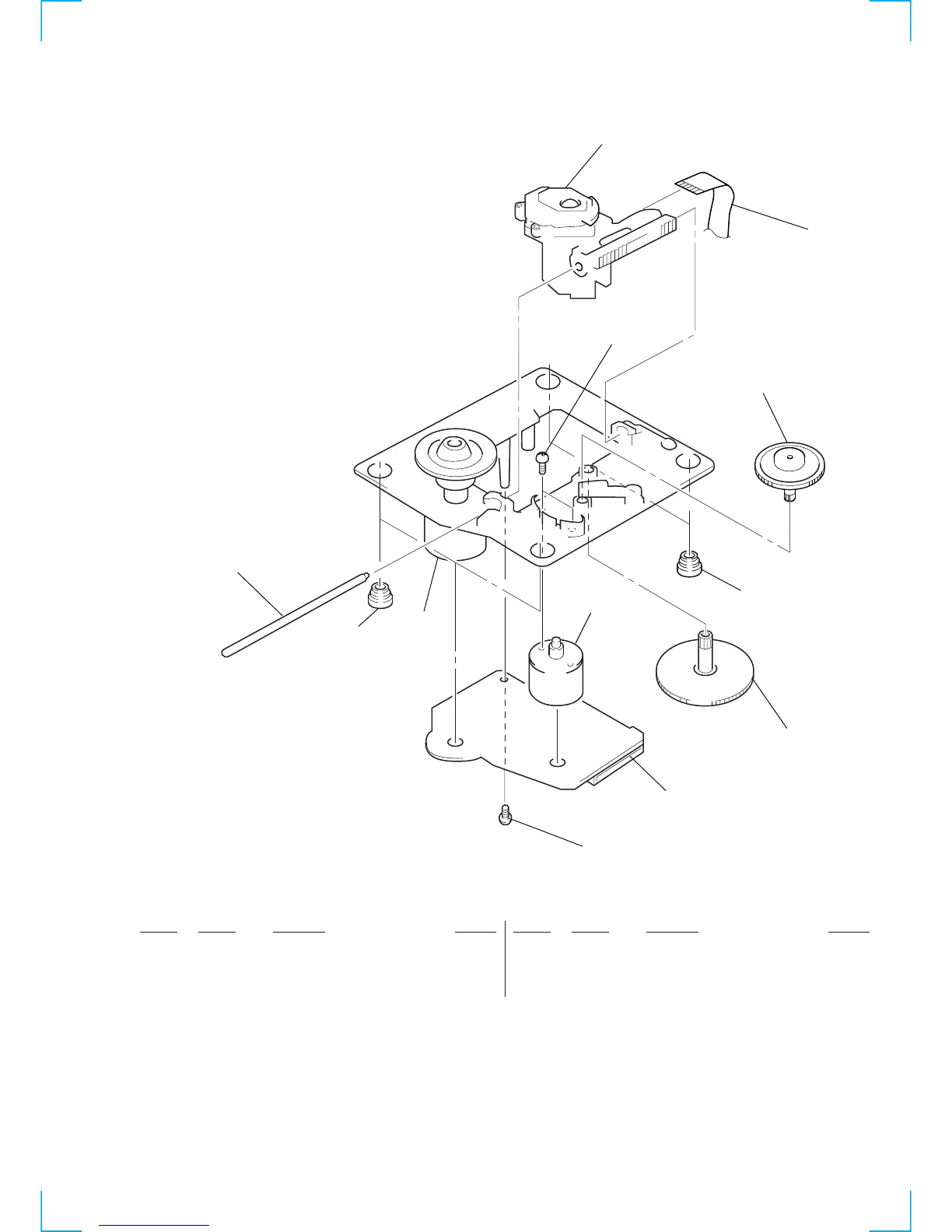

Sony HCD-GRX30 - 8-6. Base Unit Section Exploded View

— 75 —
301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-RP
302 1-769-069-11 WIRE (FLAT TYPE)(16 CORE)
303 4-917-567-01 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
#9
301
302
303
304
305
304
308
307
306
not supplied
not supplied
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4724-486-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6 × 8), +BVTP
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
8-6. BASE UNIT SECTION
(BU-5BD32L)
