Sony HCD-GRX30 - 3-3. Tape Mechanism Deck Disassembly; 3-4. CD Mechanism Deck Disassembly

— 9 —
1 Push the
cassette lids.
3 Three screws
(BVTP2.6
× 8)
2 Open the
cassette lids.
4 Two screws
(BVTP2.6
× 8
)
5 Tape mechanism
deck section
(TCM-230AWR2)
4 CD mechanism deck section
(CDM38LH-5BD32L)
3 Two screws
(BVTP3
× 10)
1 Two connectors
(CN392, CN393)
2 Wire (flat type)
(19 core) (CN391)

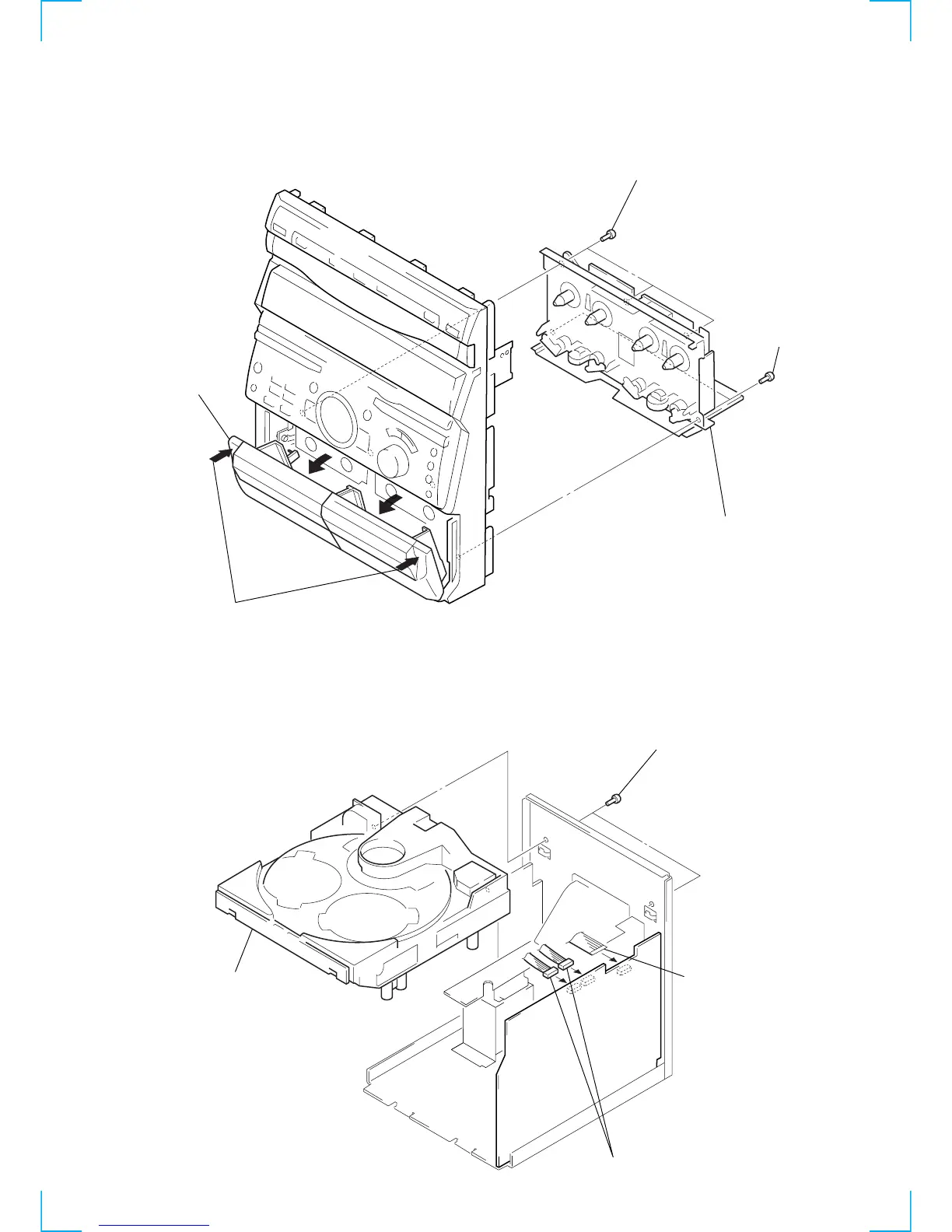

3-3. TAPE MECHANISM DECK SECTION (TCM-230AWR2)
3-4. CD MECHANISM DECK SECTION (CDM38LH-5BD32L)
Note: The CD mechanism deck will
fall if three screws are removed.
Support it by hand, then remove
three screws.
