Sony HCD-GRX30 - 8-4. CD Mechanism Deck Section 1; 8-5. CD Mechanism Deck Section 2

203 X-4946-665-1 SHAFT ASSY, WORM
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
203 X-4948-215-1 SHAFT ASSY, WORM
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
204 4-977-943-01 BELT (TURN) (1.2)
205 4-977-956-01 WHEEL, WORM
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
205 4-977-956-51 WHEEL, WORM
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
206 1-658-577-11 MOTOR (TURN) BOARD
#8
M701
#2
#2
211
204
205
206
209
210
207
212
not supplied
not supplied
not supplied
not supplie
d
203
207 4-988-162-01 ROLLER
* 209 1-658-576-11 SENSOR BOARD
210 4-934-376-01 SHAFT (ROLLER)
211 4-981-187-01 COLLAR (WORM)
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
211 4-981-187-51 COLLAR (WORM)
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
212 4-977-944-01 TRAY (SLIDE)
M701 A-4672-004-A MOTOR ASSY (TURN)
251 4-981-789-11 BRACKET (2), YOKE
252 4-977-954-01 PULLEY (SL)
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
252 4-977-954-51 PULLEY (SL)
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
253 4-977-953-01 GEAR (SL-A)
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
253 4-977-953-51 GEAR (SL-A)
(R550:AEP,AED,UK,G/RXD5:AEP, AED,UK,G)
254 4-977-955-01 GEAR (SL-B)
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
254 4-977-955-51 GEAR (SL-B)
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-667-1 CAM ASSY, BU
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
256 X-4948-218-1 CAM ASSY, BU
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
* 257 1-452-925-21 MAGNET ASSY
* 259 1-658-575-11 CONNECTOR BOARD
* 260 X-4946-668-1 CHASSIS (CDM) ASSY
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
* 260 X-4948-216-3 CHASSIS (CDM) ASSY
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 262 1-658-578-11 MOTOR (SLIDE) BOARD
263 4-982-447-01 SPRING (BU), COMPRESSION
264 4-951-620-41 SCREW (2.6), +BVTP
265 X-4948-217-1 HOLDER (BU) ASSY
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
265 X-4949-570-1 HOLDER (BU) ASSY
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
266 4-989-494-01 SCREW (SLIDER), STEP
267 4-989-492-11 SLIDER (38)
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
267 4-989-492-52 SLIDER (38)
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
268 4-989-819-02 SPRING, TENSION
269 4-989-491-11 COVER (2), LENS
270 4-993-142-21 PULLEY (L), PRESS
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
270 X-4950-384-2 PULLEY (L) ASSY, PRESS
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
M801 A-4672-004-A MOTOR ASSY
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
M801 A-4672-312-A MOTOR (CDM) ASSY
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
S811 1-473-335-11 ENCODER, ROTARY (BU,TRAY ADDRESS DET)
251
251
251
252
253
254
255
256
258
259
260
261
261
BU-5BD32L
#2
#2
S811
M801
262
263
264
265
263
266
269
268
267
257
270
not
supplied
CDM38LH-5BD32
L
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 73 — — 74 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

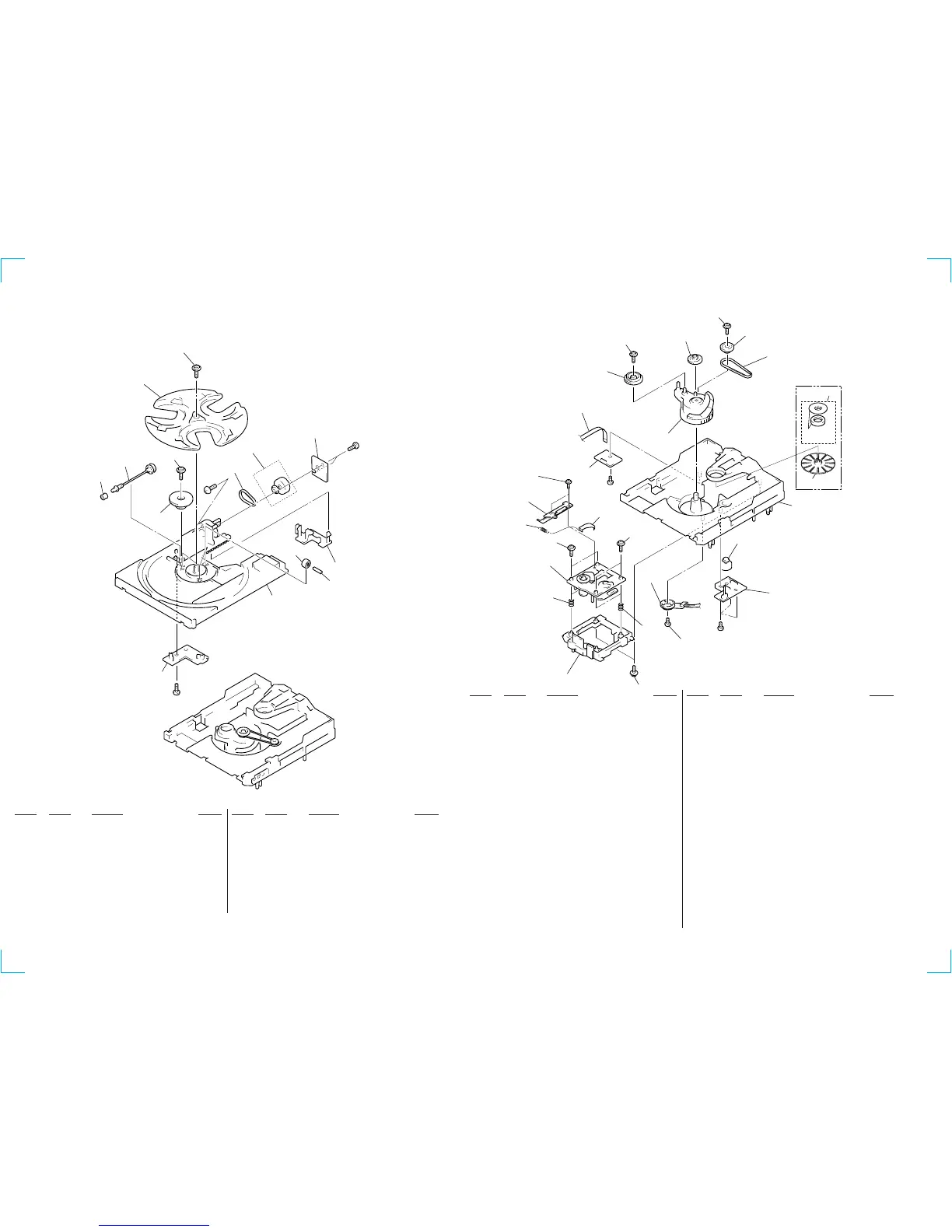

8-4. CD MLH-5BDECHANISM DECK SECTION-1
(CDM38LH-5BD32L)
8-5. CD MECHANISM DECK SECTION-2
(CDM38LH-5BD32L)
