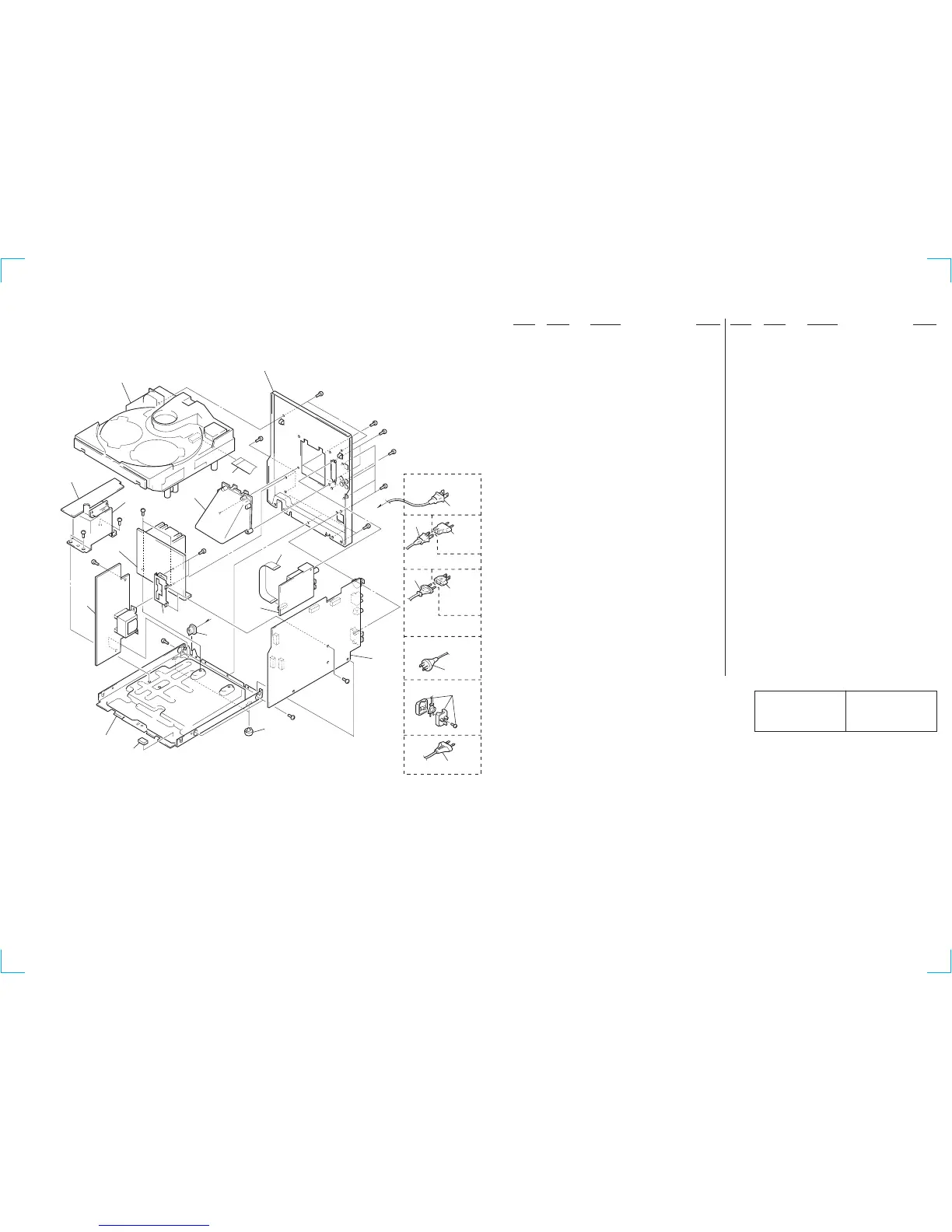

Sony HCD-GRX30 - 8-3. Chassis Section Exploded View

107
106
104
#3
#1
#2
#2
#2
#16
CDM38LH-5BD32L
#1
#1
#2
T11
#2
not supplied
not supplied
not supplied
#2
#3
#3
A
#3
#1
103
118
102
108
109
111
116
110
A
US, CND
E2, E3, MX, TH, GRX30
EA, SP, TW, AR, CIS,
AEP, AED, G
AUS
UK
KR
EA, SP, TW,
AR
E3, GRX30
115
115
114
114
114
115
114
114
* 102 3-703-244-00 BUSHING (2104), CORD
(GRX30:EA,AR,SP,TH,TW,KR,AUS/R550/RXD5)
102 3-703-571-11 BUSHING (S) (4516), CORD
(GRX30:E2,E3,MX/GRX30J)
103 1-672-969-11 AC SEC BOARD
104 4-216-856-01 DUCT (GRX30/R550:CIS/RXD5:US,CND,CIS)
104 4-216-856-11 DUCT
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
106 1-773-111-11 WIRE (FLAT TYPE) (19 CORE)
107 4-214-432-01 PANEL, BACK
(GRX30:E2,E3,EA,AR,SP,TW/GRX30J)
107 4-214-432-11 PANEL, BACK (R550:CIS/RXD5:CIS)
107 4-214-432-21 PANEL, BACK (RXD5:US,CND)
107 4-214-432-31 PANEL, BACK
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
107 4-214-432-61 PANEL, BACK (GRX30:MX,TH,KR,AUS)
108 1-769-976-11 WIRE (FLAT TYPE) (13 CORE)
(E2,MX,AR,TH,KR,AUS,US,CND)
108 1-773-008-11 WIRE (FLAT TYPE) (15 CORE)
(E3,EA,SP,TW,AEP,AED,UK,G,CIS)
108 1-773-011-11 WIRE (FLAT TYPE) (15 CORE) (GRX30J)
109 1-233-544-11 TUNER (FM/AM) (US,CND)
109 1-233-545-14 TUNER (FM/AM) (MX,AR,TA,KR,AUS)
109 1-233-546-11 TUNER (FM/MW/SW)
(GRX30:E3,EA,SP,TW/GRX30J)
109 1-693-443-11 TUNER (FM/AM) (AEP,AED,UK,G,CIS)
109 1-693-453-11 TUNER (FM/AM) (E2)
110 A-4405-774-A MAIN BOARD, COMPLETE (E2,MX,AR)
110 A-4405-775-A MAIN BOARD, COMPLETE (E3,SP,TW)
110 A-4405-777-A MAIN BOARD, COMPLETE (KR,AUS)
110 A-4405-778-A MAIN BOARD, COMPLETE (GRX30:EA)
110 A-4405-780-A MAIN BOARD, COMPLETE (US)
110 A-4405-782-A MAIN BOARD, COMPLETE (CND)
110 A-4405-784-A MAIN BOARD, COMPLETE (CIS)
110 A-4405-963-A MAIN BOARD, COMPLETE (AEP,AED,UK,G)
110 A-4424-021-A MAIN BOARD, COMPLETE (E)
110 A-4424-022-A MAIN BOARD, COMPLETE (GRX30J:EA)
110 A-4424-025-A MAIN BOARD, COMPLETE (JE)
110 A-4424-054-A MAIN BOARD, COMPLETE (TH)
111 4-965-822-01 FOOT
! 114 1-575-651-11 CORD, POWER
(GRX30:EA,AR,SP,TW/R550:CIS/RXD5:CIS)
! 114 1-575-653-11 CORD, POWER (GRX30:E2,E3,MX,TH/GRX30J)
! 114 1-696-847-11 CORD, POWER (GRX30:AUS)
! 114 1-769-079-21 CORD, POWER (GRX30:KR)
! 114 1-775-787-71 CORD, POWER
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
! 114 1-783-820-11 CORD, POWER (RXD5:US, CND)
115 1-569-007-11 ADAPTOR, CONVERSION 2P
(GRX30:E3/GRX30J)
115 1-569-008-21 ADAPTOR, CONVERSION 2P
(GRX30:EA,AR,SP,TW)
115 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P
(R550:UK/RXD5:UK)
116 4-985-642-01 CUSHION
118 A-4419-037-A ST-BY BOARD, COMPLETE
(GRX30:E2,E3,EA,AR,SP,TW)
118 A-4419-045-A ST-BY BOARD, COMPLETE (GRX30:KR,AUS)
118 A-4419-048-A ST-BY BOARD, COMPLETE (RXD5:US)
118 A-4419-052-A ST-BY BOARD, COMPLETE (RXD5:CND)
118 A-4419-055-A ST-BY BOARD, COMPLETE
(R550:CIS/RXD5:CIS)
118 A-4419-304-A ST-BY BOARD, COMPLETE (GRX30:MX)
118 A-4419-627-A ST-BY BOARD, COMPLETE
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
118 A-4419-867-A ST-BY BOARD, COMPLETE (GRX30J)
118 A-4419-965-A ST-BY BOARD, COMPLETE (GRX30:TH)
! T11 1-433-755-11 TRANSFORMER, POWER (CIS)
! T11 1-433-755-21 TRANSFORMER, POWER (AEP,AED,UK,G)
! T11 1-433-756-11 TRANSFORMER, POWER (CND)
! T11 1-433-757-11 TRANSFORMER, POWER (US)
! T11 1-433-902-11 TRANSFORMER, POWER (GRX30/GRX30J)
— 71 — — 72 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
8-3. CHASSIS SECTION
