Sony HCD-GRX30 - 8-2. Front Panel Section Exploded View

— 70 —
58
56
55
51
58
58
58
60
59
58
57
53
58
61
57

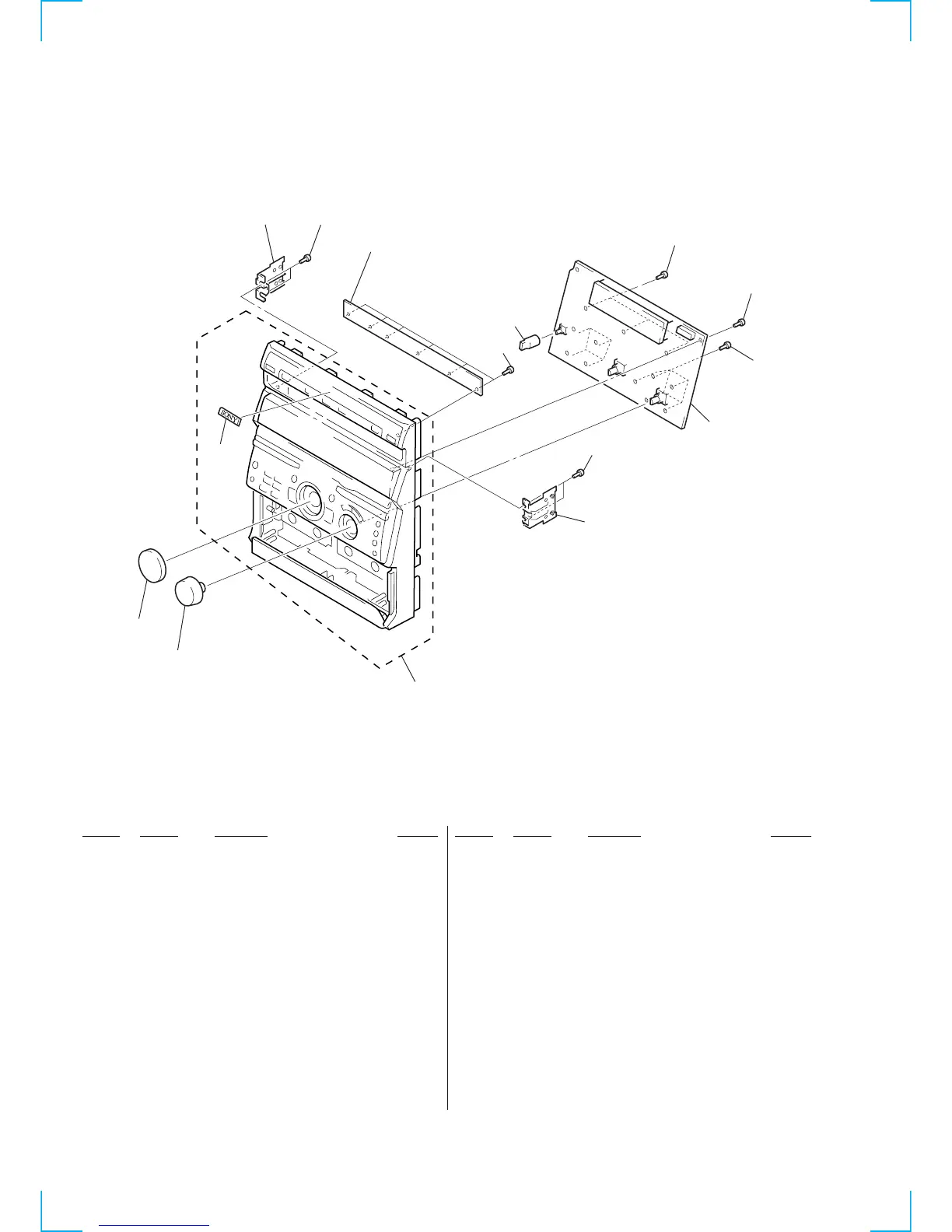

8-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-4951-048-1 FRONT PANEL ASSY
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS)
51 X-4951-050-1 FRONT PANEL ASSY (GRX30:E3,EA/GRX30J)
51 X-4951-051-1 FRONT PANEL ASSY (RXD5:US,CND)
51 X-4951-053-1 FRONT PANEL ASSY (RXD5:CIS)
51 X-4951-054-1 FRONT PANEL ASSY (R550:CIS)
51 X-4951-377-1 FRONT PANEL ASSY (RXD5:AEP,AED,UK,G)
51 X-4951-379-1 FRONT PANEL ASSY (R550:AEP,AED,UK,G)
53 4-962-708-42 EMBLEM (4-A), SONY
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
53 4-962-708-71 EMBLEM (4-A), SONY
(GX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
55 4-214-384-11 KNOB (VOL)
(GRX30:E2,MX,AR,SP,TW,KR,AUS/RXD5)
55 4-214-384-21 KNOB (VOL) (GRX30:TH)
55 4-214-384-51 KNOB (VOL)(GRX30:E3,EA/GRX30J/R550)
56 4-214-383-11 KNOB (JOG)
(GRX30:E2,MX,AR,SP,TW,KR,AUS/RXD5)
56 4-214-383-21 KNOB (JOG) (GRX30:TH)
56 4-214-383-51 KNOB (JOG)(GRX30:E3,EA/GRX30J/R550)
* 57 4-996-716-01 HOLDER (CDM)
58 4-951-620-01 SCREW (2.6 × 8), +BVTP
59 4-214-382-21 KNOB (MIC) (GRX30:TH)
59 4-214-385-11 KNOB (MIC)
(GRX30:E2,MX,AR,SP,TW,KR,AUS/RXD5)
59 4-214-385-51 KNOB (MIC)(GRX30:E3,EA/GRX30J/R550)
60 1-672-968-11 CD SW BOARD
61 A-4419-034-A PANEL BOARD, COMPLETE
(EXCEPT GRX30J, AED,AEP,G,UK,TH)
61 A-4419-624-A PANEL BOARD, COMPLETE (AEP,AED,UK,G)
61 A-4419-962-A PANEL BOARD, COMPLETE (TH)
61 A-4424-023-A PANEL BOARD, COMPLETE (GRX30J)
