Sony HCD-GRX30 - Section 8 Exploded Views; 8-1. Case Section Exploded View

SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 69 —
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
CND : Canadian model
AUS : Australian model
G : German model
AED : North European model
EA : Saudi Arabia model
E2 : Central and
South America model
E3 : Middle and Near East
model
MX : Mexican model
SP : Singapore model
TH : Thai model
TW : Taiwan model
AR : Argentina model
KR : Korea model
TCM-230AWR
2
not supplied
9
8
8
7
10
11
7
5
4
12
14
1
2
1
6
#3
#5
#13
#13
#14
#3
#3
Front panel
15
13
12
15
16
16
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-219-087-01 SPRING, TENSION
2 X-4950-832-1 HOLDER (R) ASSY, CASSETTE
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS/RXD5:US,CND,CIS)
2 X-4950-834-1 HOLDER (R) ASSY, CASSETTE
(RXD5:AEP,AED,UK,G)
2 X-4950-971-1 HOLDER (R) ASSY, CASSETTE
(GRX30:E3,EA/GRX30J/R550:CIS)
2 X-4950-975-1 HOLDER (R) ASSY, CASSETTE
(R550:AEP,AED,UK,G)
4 X-4950-828-1 HOLDER (L) ASSY, CASSETTE
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS/RXD5:US,CND,CIS)
4 X-4950-830-1 HOLDER (L) ASSY, CASSETTE
(RXD5:AEP,AED,UK,G)
4 X-4950-970-1 HOLDER (L) ASSY, CASSETTE
(GRX30:E3,EA/GRX30J/R550:CIS)
4 X-4950-974-1 HOLDER (L) ASSY, CASSETTE
(R550:AEP,AED,UK,G)
5 X-4951-055-1 PANEL ASSY, LOADING (R550:CIS)
5 X-4951-376-1 PANEL ASSY, LOADING (RXD5:AEP,AED,UK,G)
5 X-4951-047-1 PANEL ASSY, LOADING
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS)
5 X-4951-378-1 PANEL ASSY, LOADING (R550:AEP,AED,UK,G)
5 X-4951-049-1 PANEL ASSY, LOADING (GRX30:E3,EA/GRX30J)
5 X-4951-052-1 PANEL ASSY, LOADING (RXD5:US,CND,CIS)
6 1-773-120-11 WIRE (FLAT TYPE)(19 CORE)
7 3-363-099-01 SCREW (CASE 3 TP2)
(GRX30:E3,EA/GRX30J/R550)
7 3-363-099-11 SCREW (CASE 3 TP2)
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS/RXD5)
8 3-363-099-41 SCREW (CASE 3 TP2)
(GRX30:E3,EA/GRX30J/R550)
8 3-363-099-71 SCREW (CASE 3 TP2)
(GRX30:E2,MX,AR,SP,TH,TW,KR,AUS/RXD5)
9 4-219-394-41 CASE (RXD5:AEP,AED,UK,G)
9 4-219-394-61 CASE (R550:AEP,AED,UK,G)
9 4-219-394-81 CASE (GRX30:TH)
9 4-221-585-01 CASE
(GRX30:E2,MX,AR,SP,TW,KR,AUS/RXD5:US,CND,CIS)
9 4-221-585-21 CASE (GRX30:E3,EA/GRX30J/R550:CIS)
10 1-773-043-11 WIRE (FLAT TYPE) (17 CORE)
11 1-773-024-11 WIRE (FLAT TYPE) (15 CORE)
12 4-214-775-11 SPRING, PUSH CATCHER RETURN
13 4-214-760-11 CATCHER (A), PUSH
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
13 4-214-760-31 CATCHER (A), PUSH
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
14 4-214-761-11 CATCHER (B), PUSH
(GRX30/GRX30J/R550:CIS/RXD5:US,CND,CIS)
14 4-214-761-31 CATCHER (B), PUSH
(R550:AEP,AED,UK,G/RXD5:AEP,AED,UK,G)
15 4-215-062-01 DAMPER
16 4-951-620-01 SCREW (2.6 × 8), +BVTP

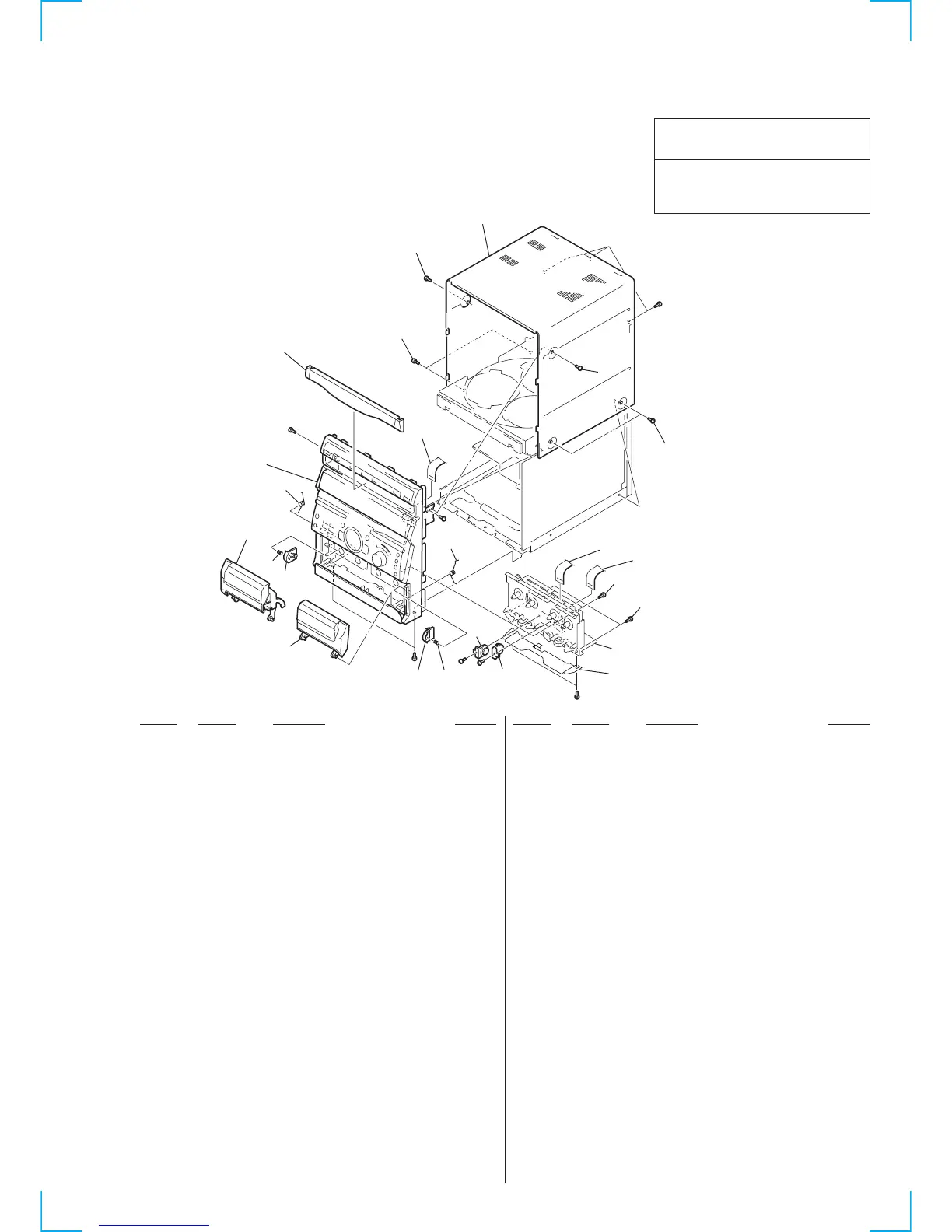

8-1. CASE SECTION
