Sony HCD-GRX30 - 7-11. Printed Wiring Board - Main Section

HCD-GRX30/GRX30J/R550/RXD5

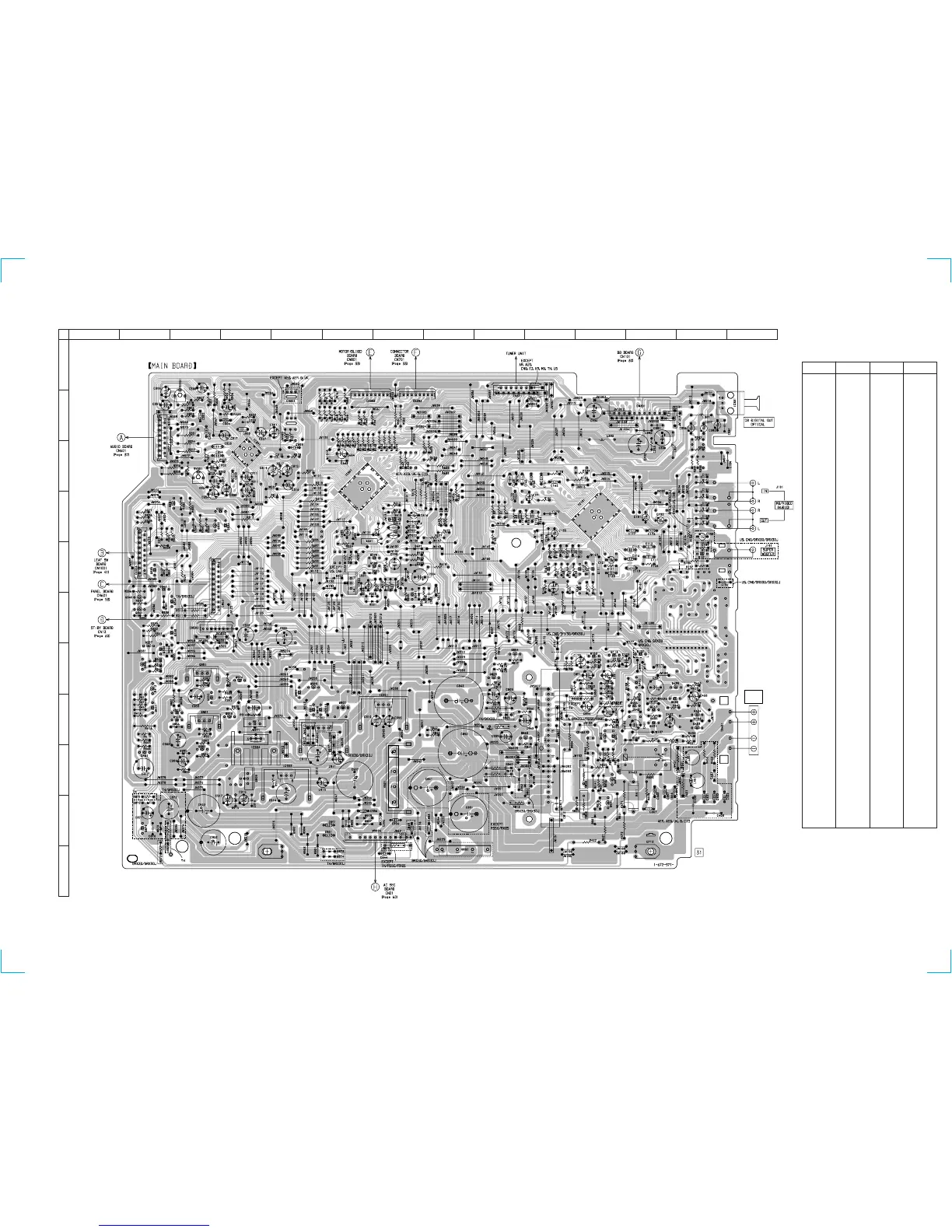

7-11. PRINTED WIRING BOARD —MAIN SECTION —
— 43 — — 44 —
(R)
(L)
(R)
(L)
SPEAKER
IMPEDANCE
USE 6-16Ω
TM401
16
12
A
B
C
D
E
F
G
H
I
J
K
3 4 5 6 7 8 9 1011121314
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D141 F-10
D191 F-10
D331 F-2
D333 G-2
D334 F-2
D335 G-2
D401 I-11
D411 H-2
D501 F-6
D502 E-6
D503 F-6
D504 E-6
D505 E-6
D506 F-7
D507 F-9
D509 G-3
D801 J-11
D802 J-9
D803 H-12
D831 I-7
D832 K-8
D851 J-11
D852 I-9
D865 H-9
D870 J-2
D872 J-2
D873 K-6
D874 K-6
D901 K-5
D902 J-5
D903 K-5
D904 J-5
D905 I-3
D906 H-3
D907 J-6
D908 J-6
D909 J-6
D910 J-6
D911 I-6
D912 H-5
D913 H-5
D915 J-4
IC101 D-11
IC301 C-4
IC381 B-14
IC501 C-6
IC502 E-6
IC801 H-10
IC901 H-7
IC902 H-5
IC903 I-5
Q111 E-11
Q112 E-11
Q113 G-11
Q161 E-11
Q162 E-10
Q163 G-11
Q191 E-13
Q192 G-12
Q331 D-3
Q332 D-3
Q333 D-3
Q334 D-4
Q335 E-2
Q336 G-2
Q337 G-2
Q338 F-2
Q339 G-2
Q340 F-2
Q341 F-2
Q342 F-2
Q343 E-2
Q411 H-2
Q412 G-2
Q431 H-12
Q432 H-12
Q433 H-13
Q434 H-13
Q435 G-12
Q436 H-12
Q437 H-12
Q439 G-13
Q461 I-2
Q501 H-5
Q508 E-6
Q509 E-6
Q801 J-11
Q803 G-9
Q804 G-9
Q831 H-11
Q832 H-11
Q851 I-11
Q865 H-9
Q870 J-2
Q901 H-3
Q902 I-3
Q903 H-3
Q904 H-5
Q905 G-5
Q907 H-6
Q908 H-5
Q909 I-4
Q913 H-4
Q914 G-4
Q923 H-3
Q951 G-3
Q952 H-3
