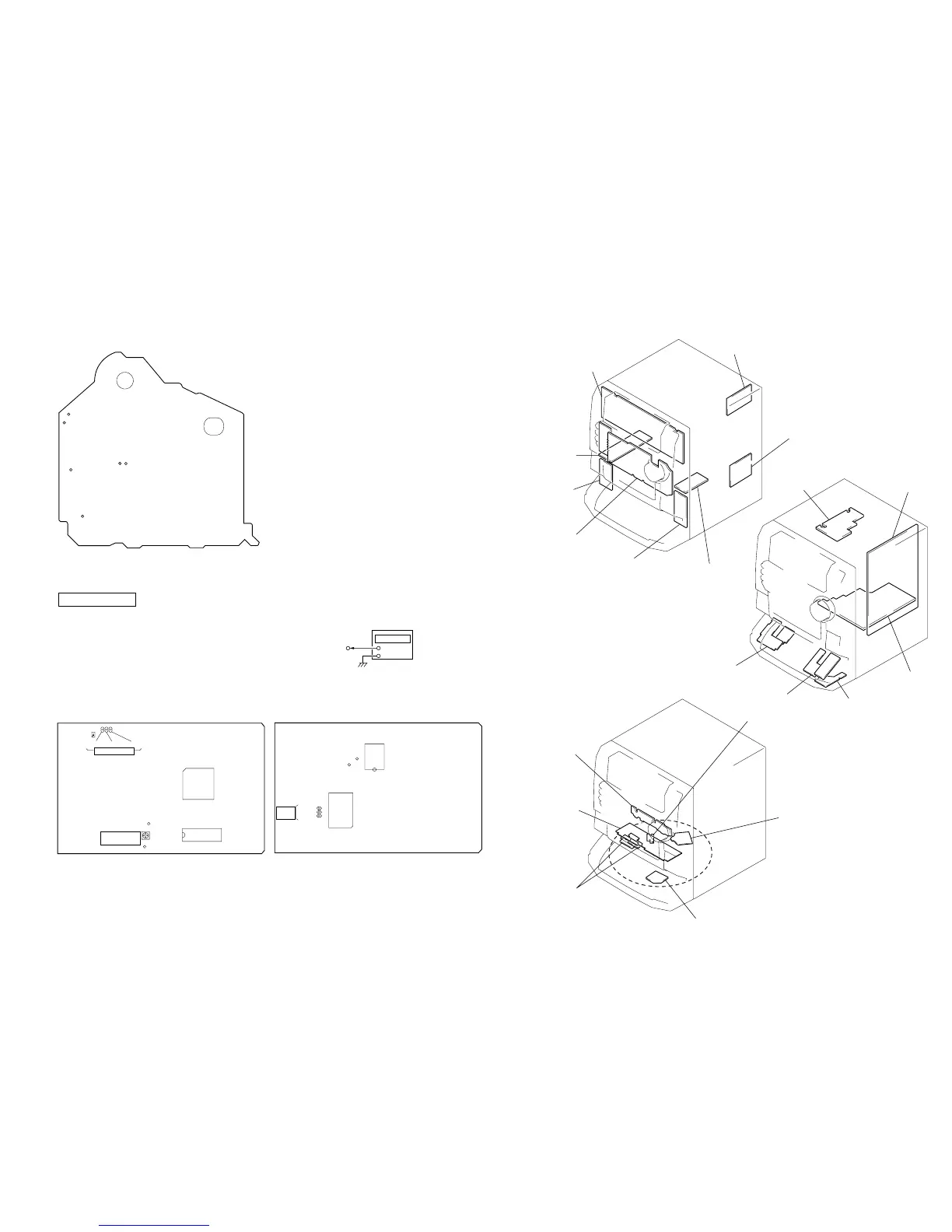

Sony HCD-LV80 - SECTION 7 DIAGRAMS; 7-1. CIRCUIT BOARDS LOCATION

HCD-LV80
19
19
SECTION 7
DIAGRAMS
VIDEO SECTION
Frequency adjustment
1. Connect the frequency counter to check point of the VIDEO
board.
2. Adjust CT503 of the VIDEO board so that the frequency counter
read 27MHz ± 80Hz at STOP condition.
[ VIDEO BOARD ] – SIDE B –
Adjustment Location :
[ VIDEO BOARD ] – SIDE A –
frequency counte
r
VIDEO board
(27 MHz)
+
–
SL501
IC502
IC506
(27MHz)
(GND)
SL502
SL503
TEST
MODE
SL501
D502
SL502
CT503
SL503
TEST MODE
VIDEO
FREQUENCY
(27MHz)
(GND)
IC507
IC505
Adjustment Location :
[ BD BOARD ] — SIDE B —
TP
(VC)
TP
(RF)
TP
(TE)
TP
(IOP)
TP
(FE)
TP
(AGCCON)
7-1. CIRCUIT BOARDS LOCATION
BD board
MIC board
TC-A board
TC-B board
PANEL-FL board
PANEL-VR board
HEADPHONE board
LED board
CD MOTOR board
TABLE SENSOR board
TUNER UNIT
TRANS board
MAIN board
FRONT INPUT board
CD-R board
CD-L board
PA board
AUDIO board
LEAF SW board
VIDEO board
