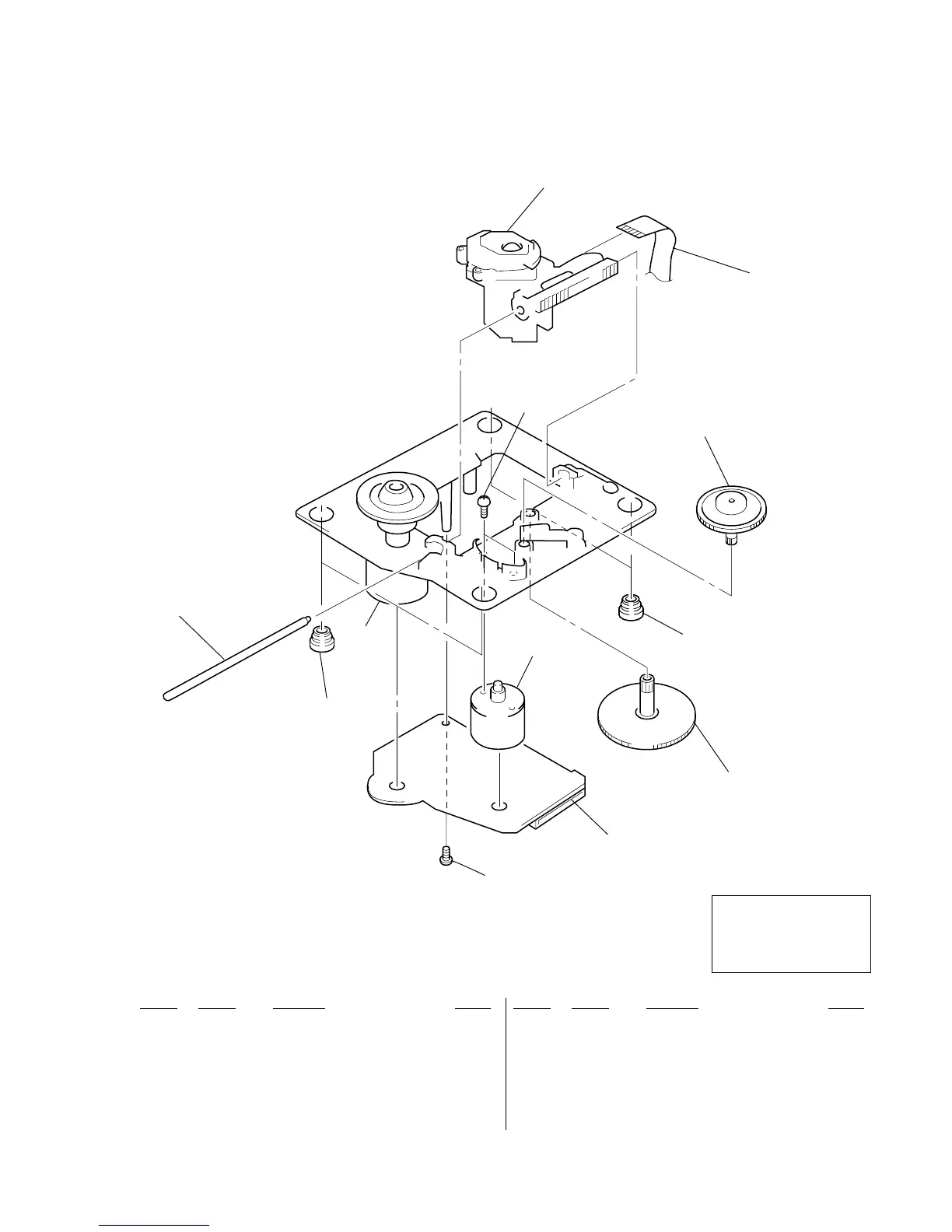

8-8. BASE UNIT SECTION (BU-5BD34L)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 601 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP
602 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
603 4-917-567-21 GEAR (M)
604 4-951-940-01 INSULATOR (BU)
605 4-917-565-01 SHAFT, SLED
606 4-917-564-01 GEAR (P), FLATNESS
607 A-4724-653-A BD BOARD, COMPLETE
608 4-951-620-01 SCREW (2.6X8), +BVTP
609 3-713-786-51 SCREW +P 2X3
M101 X-4917-504-1 MOTOR ASSY (SLED)
M102 X-4917-523-3 MOTOR ASSY (SPINDLE)
M201 A-4660-977-A MOTOR ASSY
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
