Sony HCD-LV80 - Printed Wiring Board - Panel VR Section

HCD-LV80
44
44
(Page 42)
(Page 36)
(Page 48)

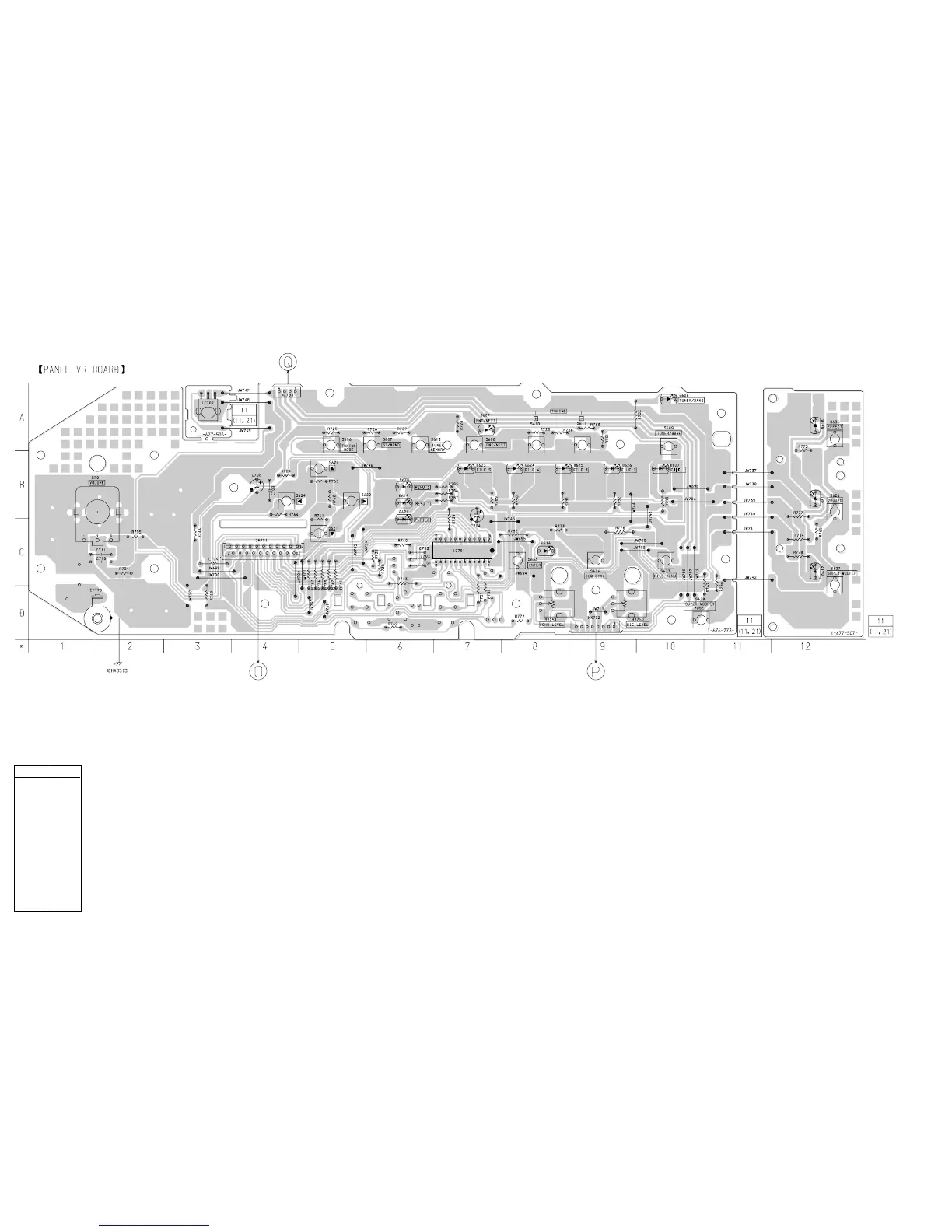

7-19. PRINTED WIRING BOARD – PANEL VR SECTION –
• See page 19 for Circuit Boards Location.
• Semiconductor
Location
D606 A-10
D607 A-7
D611 B-11
D612 C-12
D616 C-8
D618 A-12
D619 B-6
D620 B-6
D621 B-6
D623 B-7
D624 B-8
D625 B-8
D626 B-9
D627 B-10
IC701 C-7
IC702 A-3
Ref. No. Location
