Sony HCD-LV80 - Printed Wiring Board - Main Section

HCD-LV80
36
36
(Page 40)
(Page 40)
(Page 50)
(Page 32)
(Page 53)
(Page 31)
(Page 44)
(Page 32)
(Page 47)
(Page 42)

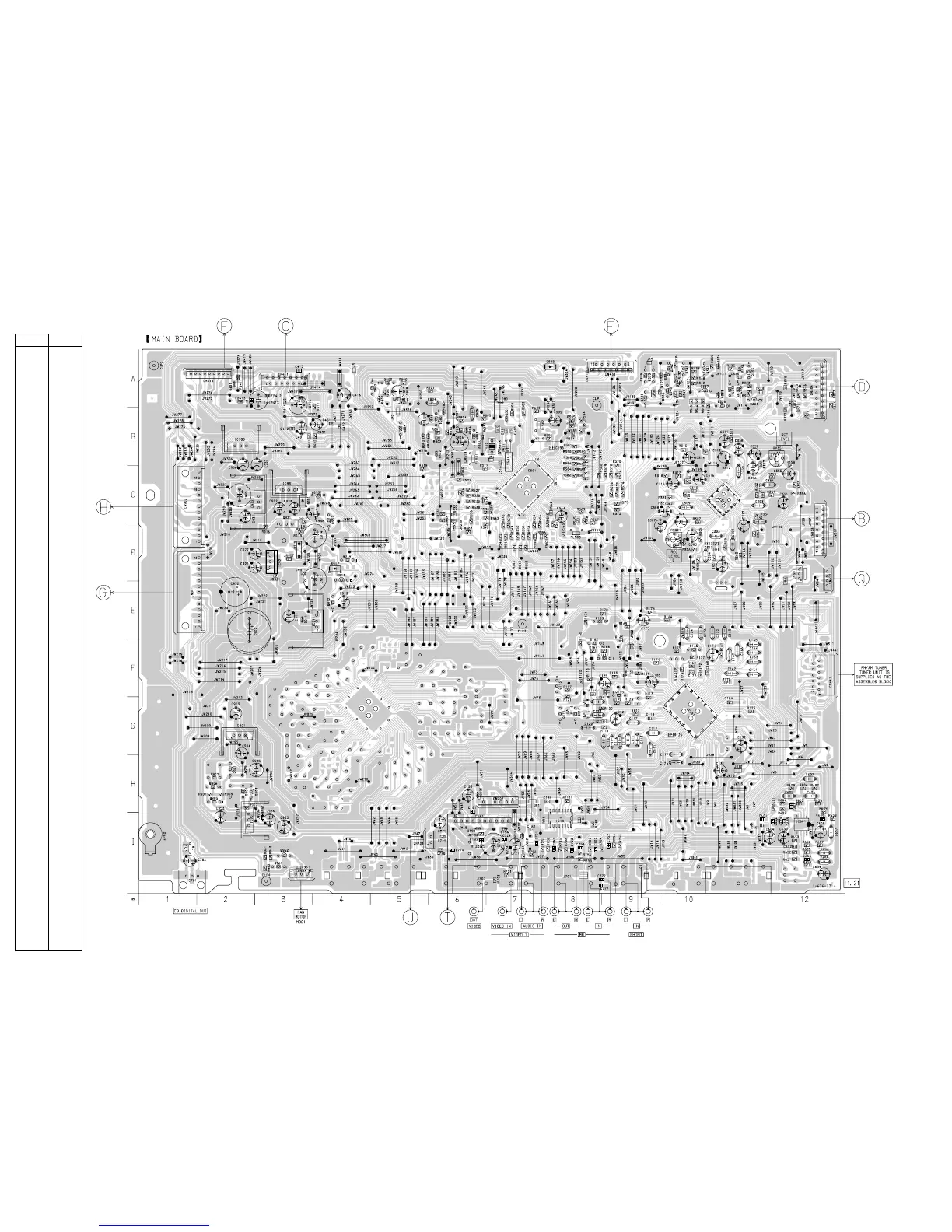

7-11. PRINTED WIRING BOARD – MAIN SECTION –
• See page 19 for Circuit Boards Location.
D191 H-6
D192 I-6
D193 I-7
D194 I-7
D333 A-11
D334 A-11
D335 A-9
D336 A-9
D401 A-2
D501 B-7
D534 C-6
D801 A-7
D802 B-6
D803 B-5
D804 B-6
D805 B-5
D806 B-6
D807 A-5
D808 A-8
D911 E-3
D912 D-4
D913 E-3
D931 C-5
D951 I-3
IC101 G-10
IC181 I-8
IC191 I-6
IC301 C-11
IC501 C-7
IC601 I-12
IC781 I-1
IC801 B-6
IC901 C-2
IC911 E-4
IC921 D-3
IC931 C-3
IC932 C-3
IC933 B-2
IC951 I-2
Q111 G-10
Q112 G-8
Q113 F-8
Q115 F-9
Q161 F-8
Q162 F-8
Q163 E-8
Q165 F-10
Q331 A-11
Q332 A-11
Q333 A-11
Q334 A-11
Q335 A-9
Q336 A-11
Q337 A-10
Q338 A-9
Q339 A-9
Q340 A-10
Q341 A-10
Q342 A-10
Q343 A-10
Q801 B-6
Q802 A-5
Q803 A-5
Q804 B-5
Q901 H-2
Q902 H-2
Q903 H-2
Q904 H-2
Q905 H-2
Q906 H-2
Q911 D-4
Q912 E-4
Q914 D-4
Q921 D-3
Q931 C-4
Q932 C-4
Q961 I-3
Q962 I-3
• Semiconductor
Location
Ref. No. Location
