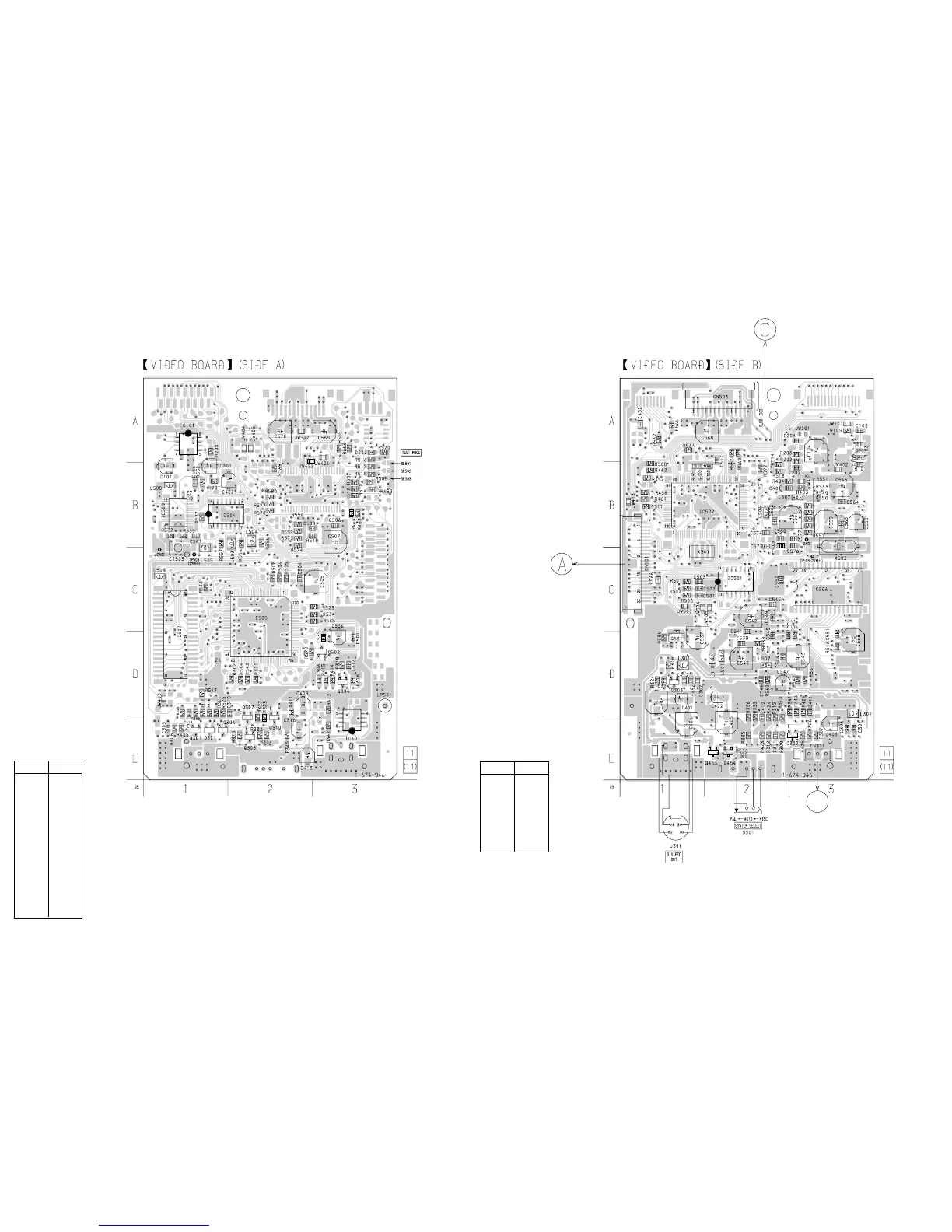

7-7. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 19 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D301 E-1
D501 D-3
D502 A-3
IC101 A-1
IC401 E-3
IC504 B-1
IC505 C-2
IC507 C-1
IC509 B-1
Q301 E-1
Q304 D-3
Q306 E-1
Q307 E-2
Q308 E-2
Q310 E-2
Q502 D-3
• Semiconductor
Location
Ref. No. Location
IC501 C-2
IC502 B-1
IC506 C-3
Q302 E-3
Q303 D-1
Q453 E-2
Q454 E-2
Q531 D-1
